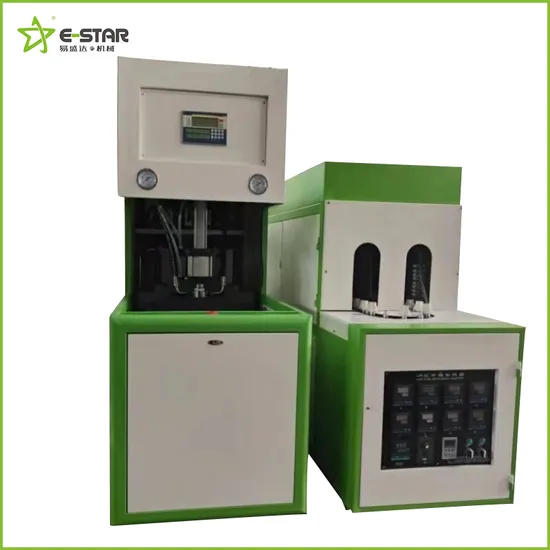

Easy to Operate Semi-Automatic Pet Bottle Stretch Blow Molding Machine for Wide-mouth Bottle
Product Description
Connection drawing
1.Trait:
E-M5L semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles up to 5L. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate.
2. Engineering item:
Capacity: 400-800pcs/hr
Max volume of product: 5Liter
3.Machine Configurations:

Product Name	Brands Name
Touch screen	XINJIE (China )
Stretch Cylinder	YONGCHENG (China)
Clamping Cylinder	YONGCHENG (China)
Electromagnetic valve	AirTac(Taiwan,China)
HP blowing valve	Quanjia (China)
Temperature Controller	Aoyi(China)
MTC Module	Zhenyu(China)
Circuit breaker	PEOPLE (China )

4.Auxiliary equipment: 1.HP- air compressor

Air compressor	Unit	1.2M3/30KG
Volume	M3	1.2
Pressure	Kg	30
Speed	r/min	670
Power	KW	15
Overall Dimension	mm	1900×855×1250
Weight	kg	640

2.Air Cooling Drier

Refrigeration Air Dryer	Unit	2.0M3/3.0Mpa
Flow capacity	Nm3/min	2.0
W.P	Mpa	3.0
Inlet Temp.	ºC	≤80
Dew point	ºC	23
Ambient Temp.	ºC	≤38
Power supply	V/HZ	220/50
Compressor power	Kw	0.75
Cold Medium		R22
Overall Dimension	mm	1000*570*850
Weight	Kg	100

3.Air filters

3.1 Divided into T , A, H three ranks. (H grade is deodorizing)
3.2. T grade equip the automatic blow down valve (Inlet pressure ≥ 1.0Mpa is not equipped );
3.3. rate of getting rid the free state moisture and the Filt diameter seeing the following form :

Type	Rate of getting rid moisture	Filt diameter
T	99.9%	≤1µm
A	99.99%	≤0.01µm
H	99.99%	≤0.01µm

1. Filter T (Model No: NTLN-2.0/30T)
NO.	Name	Specification	NO.	Name	Specification
1	Rating flow	2.0m³/min	2	Operation pressure	3.0Mpa
3	Inlet temperature	≤65ºC	4	Resid	5ppm
5	Filter precision	3um	6	Filter rating	Level T
2. Filter A (Model No: NTLN-2.0/30A)
NO.	Name	Specification	NO.	Name	Specification
1	Rating flow	2.0m³/min	2	Operation pressure	3.0Mpa
3	Inlet temperature	≤65ºC	4	Resid	0.01ppm
5	Filter precision	0.01um	6	Filter rating	Level A
3. Filter H (Model No: TCJL-2.0/30H)
NO.	Name	Specification	NO.	Name	Specification
1	Rating flow	2.0m³/min	2	Operation pressure	3.0Mpa
3	Inlet temperature	≤65ºC	4	Resid	0.01ppm
5	Filter precision	0.01um	6	Filter rating	Level H

4. Water chiller

Model		3HP
4.4/38ºC Cooling capacity(Kcal/h)		7580
Compressor		All-closed vorticity
Compressor power (KW)		2.5
Refrigerant		R22
Chilled water pump power(KW)		0.75
10ºC Max. flow rate of chilled water(L/min)		55
Flow water inlet and outlet pipe		1''
Condensing water rate L/min		≥36
Chilled water inlet and outlet pipe		1''
Exterior dimension	Length(mm)	850
	Width(mm)	560
	Height(mm)	870
Water tank capacity	L	38
Weight	Kg	180

Product Parameters

ITEMS	UNIT	E-M3L	E-M3L-2	E-M3L-2H	E-M3L-PP	E-M5L-Jar
BOTTLE SPECIFICATION
Cavity No.	CAVITY	2	2	2	2	1 or 2
Max.Bottle Volume	L	2	2	1	1.5	6
Max.Neck Diameter	MM	75	75	48	70	120
Max.Bottle Diameter	MM	105	105	80	95	105
Max.Bottle Height	MM	340	340	280	320	350
Theoretical output/BPH		800-1000	1800-2000	800-1000	500-800	400-800
CLAMPING
Clamping Force	KN	100	100	100	80	100
Mold Stroke	MM	160	160	120	140	230
Stretching Stroke	MM	380	380	340	360	380
ELECTRICAL POWER
Installed Power	KW	18	35	18	40	18
Voltage/Frequency	V/HZ	3P 380V±10%, 50HZ/3P 220V±10%, 60HZ	3P 380V±10%, 50HZ/3P 220V±10%, 60HZ
AIR SYSTEM
Operating Pressure	Bar	≤9	≤9	≤9	≤9	≤9
Blowing Pressure	Bar	≤35	≤35	≤35	≤35	≤35
HP Air Consumption	L/min	1000	2000	3200	1600	1200
MOLD COOLING WATER
Temperature Range	ºC	10-20	10-20	10-20	10-20	10-20
Cooling Power	HP	3	3	3	3	3
MACHINE
Machine Size	M	1.47x0.61x1.6	1.47x0.61x1.6	1.47x0.61x1.6	1.47x0.61x1.6	1.72x0.61x1.68
Machine Weight	KG	600	600	600	600	680
Machine Size	M	1.76x0.6x1.35	2.23x0.6x1.35	2.23x0.6x1.35	4.65x0.68x1.5	1.76x0.6x1.35
Machine Weight	KG	250	300	300	400	250
