New Design Chicken Feeder Poultry Farming Animal & Poultry Husbandry Equipment Chick Battery Broiler Cage for 10000

Product Description

U-BEST poultry farm business plan sample pdf
(U-BEST)
(chicken house drawing)

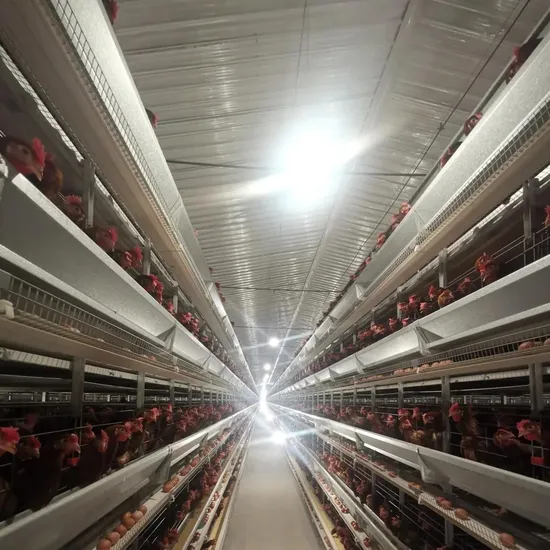

(chicken house inside)

Main Systems Of Chicken Farm Equipment:

1. Main feed delivery line(1. )Main feed delivery system is a complete set of automatic feeding system, included a material conveying pipe, silo or manpower hopper, auger, drive motor and a feed level sensor.
(2) Main Feed line is mainly used to deliver feed from silo or manpower hopper to the vice hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding.
2. Automatic pan feeding line systemThere is a sensor at each feeding line which controls motor on and off to achieve automatically feed delivery.
The motor will start working and deliver feed when the feed pan (with sensor)lacks feed and will stop working when the feed pan (with sensor) is full of feed.


3. Automatic nipple drinking line systemThis system can provide fresh and clean water for poultry which is crucial for the growth of Poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.


4. Ventilating system The main parts of ventilation system is the big fan and small fan. They are controlled by the control system. The NO. of the fans to run was decided by the temperature of the poultry house.About 200m2 need 1 big fan and 15-20m need a small fan, this is the standard to design the quantity of fans in chicken house.

5.cooling pad system
Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.


6.Controller & Control PanelThe ventilation control system consists of computerized controller, tempreture sensors, humidity sensors, negtive pressure sensor and alarm system.By means of the sensors and preset tempreturers, humidity, and negative pressure, the controller can regulate tempratures, moisture, wind speed and negative pressure in the house.
U-Best control panel select the world top brand electronic components , siemens & ABB to enure safety of the chicken farm.

7.Heating system-LB White& Damily Brooder and space heater
In winter or chicks,it make chicken house has a suitable temperature.

8. Fogging And Disinfection
It is effectively tools for cooling ,darmping,dedusting and dinsinfecting the house.
(Main Customers Distribution)
Our Services For Your Project of Automatic Poultry Farm Equipment:
1. Poultry Farm Equipment: produce and supply first-class quality poultry equipment with Good Price;
2. Poultry Farm: select location, design and construction preparation guidance;
3. Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment;
4. Equipment Installation: if you need, we send our engineer to your farm for guide of equipment installation;
5. Training: we can train your workers to operate our equipments and raise poultry;
6. After-sales service: free consultancy and prompt reply to questions from clients.
