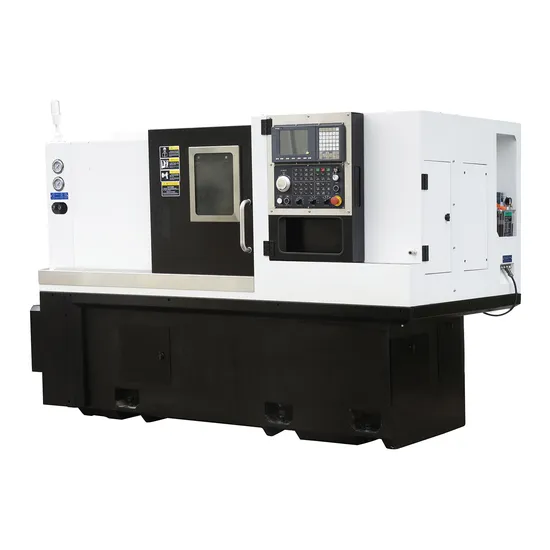

La3900-300 Turret Tailstock Lathe Machine High Precision CNC Machine-Tools
| US$13,900.00-14,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LA3900-300
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Custom
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Condition
New
Application
Metal and More
Numerical Control
Nc
Performance Classification
Economical CNC Machine Tools
Processing Precision
<=0.01
System
GSK, Syntec or Fanuc
Spindle Bore
48/56 mm
X/Z Drive
180/300mm
Installable Accessories
Chat with Supplier
Weight
2300kg
System Version
Chinese or English
Transport Package
Wooden Box
Specification
2000*1400*1650mm
Trademark
Xinshiheng
Origin
Taizhou
HS Code
8458110000
Production Capacity
2000 Pieces/Year
Packaging & Delivery
Package Size
220.00cm * 160.00cm * 185.00cm
Package Gross Weight
2450.000kg
Product Description
Product Description
Detailed Photos
Product Parameters
| No. | Name | Quantity | Supplier | Remark | ||
| 1 | System | 1set | GSK980TC3 | SYNTEC 6AT | ||
| 2 | Spindle servo driver + AC servo stator | 1set | Weichuang | Electric spindle 7.5KW | ||
| 3 | Hardware current loop servo driver + 23-bit 5-pole motor | each 1set | GSK Original | X axis 1.5kw brake Z axis 1.5kw | ||
| 4 | Spindle front bearing NN3017K | 1set | NSK | SKF | LYC | |
| 5 | Spindle rear bearing 7014 | 1set | NSK | SKF | LYC | |
| 6 | X,Z axis screw bearing | Each 1 set | NSK | SKF | LYC | |
| 7 | X,Z axis ball screw | Each 1 set | Taiwan(SHAC) | |||
| 8 | X axis linear guide rail | 2pcs | HIWIN | Roller | ||
| 9 | Z axis linear guide rail | 2pcs | HIWIN | Roller | ||
| 10 | Spindle | 1 | Xinshiheng | A2-5/A2-6 Ø46/Ø56 | ||
| 11 | Turret | 1 | Taiwan Nafeng | 80--8T--280 | ||
| 12 | Cutting fluid pump | 1 | Zegong | |||
| 13 | Auto Lubriction System | 1 | Taizhou Qiantong | |||
| 14 | X,Z axis coupling | each 1 | Jiangsu | |||
| 15 | Hydraulic chuck | 1 | Dingchang | |||
| 16 | Hydraulic tailstock | 1 | Xinshiheng | Mohs 5 | ||
Machining Capacity | Tool post specification | 80825 | |
| Maximum turning diameter of the bed | mm | 450 | |
| Standard machining diameter | mm | 160 | |
| Maximum machining diameter | mm | 280 | |
| Maximum machining length | mm | 300 | |
| Bar machining diameter | mm | 35/45 | |
| Stroke | X axis stroke | mm | 180 |
| Z axis stroke | mm | 300 | |
Spindle | Speed | RPM | A2-5:5000,suggest in 3000 A2-6:4000,suggest in 2500 |
| Spindle nose | A2-5/A2-6 | ||
| Spindle hole diameter | mm | 48/56 | |
| Bearing inner diameter | mm | 85/90 | |
Tool post | Tool post form | Straight mounted type | |
| Tool install quantity | unit | 8 | |
| the height of the rectangle tool shank | mm | 25 | |
| Diameter of boring bar shank | mm | 32 | |
Tailstock | Tailstock stroke | mm | 140 |
| Diameter of tailstock sleeve | mm | 75 | |
| Taper of tail seat sleeve cone hole | MT.5 | ||
| Tailstock sleeve stroke | mm | 100 | |
| Feeding velocity | Fast feeding velocity | m/min | X:30 / Z:30 |
Motor | Spindle motor (30min 60%/ continuous) | kW | 7.5/11 |
| Turret motor | kW | - | |
| Feeding shaft motor | kW | X: 1.5 / Z: 1.5 | |
| Hydraulic pump motor | kW | 1.5 | |
| Cutting fluid motor | kW | 0.4 | |
| Supply power | Power supply power | kVA | 11 |
Tank capacity | for hydraulic equipment | L | 50 |
| for lubrication oil | L | 2 | |
| for cutting fluid | L | 60 | |
Machine tool volume | Height of machine | mm | 1650 |
| The height from the ground to the centerline of the spindle | mm | 980 | |
| Floor space | mm x mm | 2000 x 1400 | |
| Weight | kg | 2300 | |
Packaging & Shipping
Customer Receiving Goods
Company Profile
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
7.how to guarantee the precision
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.
