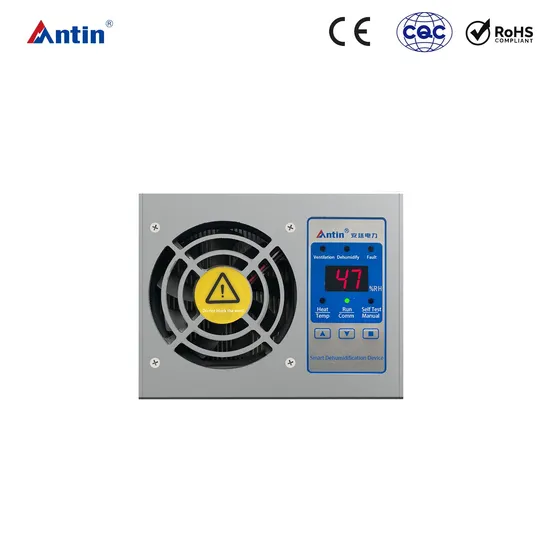

ATCS220 Smart Function Intelligent Dehumidifier with RS485 Interface for Electrical Cabinet Dehumidifying

Product Description

Product Description

ATCS-220 Intelligent Electrical Cabinet Dehumidifier adopts semiconductor refrigeration dehumidification method, the humid air in the closed space is sucked into the dehumidification duct under the action of the fan, and the water vapor in the air is condensed into water after the semiconductor refrigeration mechanism, and then discharged from the cabinet through the guide pipe, which can achieve a good dehumidification effect. The relative humidity and absolute humidity are lowered by reducing the moisture content in the air, almost no increase in temperature, fundamentally reduce accidents caused by raising temperature, also no accelerate the aging of the cabinet devices because of high temperation. Instead of passively prevent condensation, this Intelligent dehumidification device will actively guide condensation, effectively prevent the cabinet equipment aging, insulation strength reduction, secondary terminal breakdown, material mold and steel structure rust and other security risks, to ensure the safe operation of the power grid.
Condensation in the equipment causing creepage, flashing accidents, are generally occured in the following situations: 1. the region is high humidity, big weather temperature changes, wet switchgear bottom, some cable trench even soaked by water; 2, some switchgear are equiped in basement with high humidity, the cabinet body temperature is lower than the ambient temperature; 3, some equipment is in a temporary shutdown, the electrical cabinet internal temperature is lower than Ambient temperature, which is highly likely to form condensation, in these cases, the accident may occurr once the power is on operation. In order to ensure the safe operation of the power grid system, the long life of electrical equipment, the power system has put forward higher requirements on the cabinet moisture, condensation prevention.
Main Features: Small size, light weight, easy installation. Automatic/manual dehumidification function optional, temperature and dehumidification start value adjustable. Dehumidification ducts actively induce condensation, discharged gas dehumidified by heating Humidity and temperature sensor 24-hour real-time sampling, beyond the set start value automatically induced condensation. humidity, temperature settings with memory function, will not be lost because of power shut down. Error display function, can quickly find error points to ensure normal operation. Adopt special moisture-proof components to ensure normal operation in humid environments Adopt shielding isolation technology, in line with GB/T17626-2008 level 3 standard, to ensure that it can work under strong electromagnetic fields. Dehumidification induced condensation pipeline, which can discharge the water outside the cabinet after induced condensation, and also can be collected outside the cabinet using the storage bag. Optional communication function, support remote control/adjustment of operating parameters and fault reporting function. Start the fan at regular intervals to form strong air convection and enhance the dehumidification effect. Temperature below 5 degrees to open the fan defrost function, to prevent low temperature frost, affecting the use of the device function and life. Internal power supply monitoring, working power supply abnormal alarm. Product Parameters

Power	≤20W
Dehumidification capacity	100±10%ml/Day(≥35ºC,RH=90%)
Dehumidification space	≤0.5M³
Applicable cabinet	Switchgear, middle cabinet, ring network cabinet, terminal box electric cabinet, etc.
Operating ambient temperature	-25ºC~65ºC
Operating environment humidity	≤95%RH
Measuring range	0%RH~99%RH
Measurement accuracy	±5%RH
Working threshold	60%RH(default, adjustable)
Display method	2-digit digital tube display
Drainage method	Hose drainage
Mounting method	Bracket mounting or rail mounting or strong magnetic fixing
Housing material	Metal aluminum
Working power	AC/DC85V~265V
Communication method	RS485
Main body dimension	L105mm*W58mm*H85mm
