Swq2 Dual Power Controller Safety Switch Automatic Transfer Switch ATS

Product Description

Product Description
TWO SECTION PC TYPE AUTOMATIC TRANSFER SWITCH
Dual power automatic transfer switch/ PC level
SWQ series intelligent dual power automatic transfer switch is a kind of emergency power switch. The switch consists of circuit breaker and line
controller, It is based on the latest control system and is stable and reliable for long-term continuous operation, It is an ideal electromechanical switch.
Integrated new dual power automatic transfer switch.The product meets the standard: GB/T 14048.11 'Low-voltage switchgear
and control equipment Part 6; Multi-function electrical apliances Part 1:
Automatic transfer switchgear . series intelligent dual power automatic.
SWQ2 series GS isolation type automatic transfer switch is composed of switch body and intelligent controller. It is suitable to the double power system of AC power below 415V, frequency
50/60Hz, rated current up to 3200A. The main applied places include hospital, shopping mail, bank, fire control, telecommunication, high-rising building etc.
where the power off is not allowed.


l Adopt high performance SCM control program , nixie tube voltage display;
l Anti-interference strong and accuracy high;
l With protections of over load, under voltage, short circuit ,phase loss, intelligent alarm;
l Transfer switch adjustable ,transferring time accurate;
l Small volume ,breaking capacity high ,flash-over short, structure compact ,appearance elegant;
l Anti-corrosion strong, power supply reliable;
l Operation without noise, energy saving and power loss decreased, installation convenient ,operation easy, stability high.
l With reliable mechanical and electric interlock protection device preventing the two mccb from closing at the same time;
l Automatic transferring parameter can be set outside;
l With operation motor intelligent protection;
l The ats with fire control circuit, when the fire control center send a control signal to the intelligent controller, both the two mccb will be broken automatically;
l With generator starting signal, when the normal power is abnormal, ATS controller will send a starting signal to the generator, then it will generate automatically.

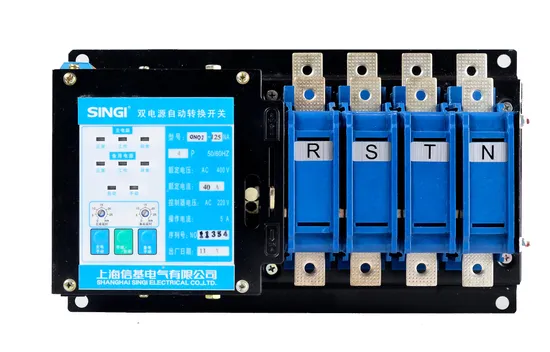

Detailed Photos
