500kg to 10ton Crane Lifting Equipment Winch Block Electric Chain Hoist

500kg to 10ton Crane Lifting Equipment Winch Block Electric Chain Hoist

US$500.00-600.00 1 Set (MOQ)

Basic Info.

Model NO.
LTCH
Sling Type
Chain
Lift Speed
2~8m/min
Maximum Lifting Height
20m
Chain Falls
1
Certification
CE
Condition
New
Color
Yellow
Capacity
2 Ton
Lifting Height
3m
Lifting Speed
6.6 M/Min
Net Weight
108 Kg
Rotation Speed
1440 R/Min
Insulation Grade
F Class
Transport Package
Wooden Case
Trademark
LEITAI
Origin
China
Production Capacity
50000 Sets/Year

Product Description

Electric Wire Rope Hoist-Main Structure:
Reducer, running organizations, roller equipment, hook devices, couplings, flexible cable current into the device and stopper.
Motor is with cone rotor motors, set the power and braking force in one.
Electric Wire Rope Hoist-Operating Conditions:
1.Altitude does not exceed 1000m
2.Ambient air temperature is -20 ° C ~ +40 ° C
3.Ambient air humidity is not more than 85% (at 25 ° C)
4.Power: three-phase AC, 380V, 50HZ. Motor terminal voltage fluctuation ±10%
5.The electric hoist is generally installed indoors. When installing outdoors, a rain cover should be added.
When the above environmental conditions are not met, special orders are made according to non-standard products.

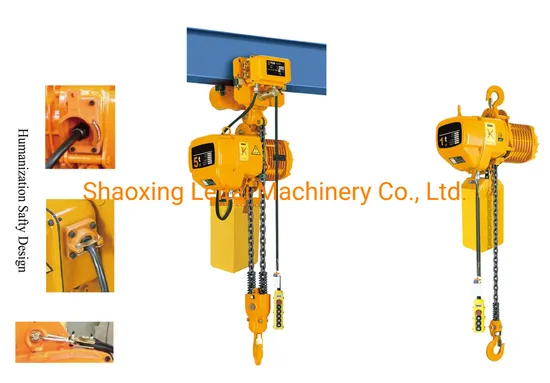

Electric Chain Hoist-Introduction:
1.Shell:
Made of light aluminumalloy, the cooling fin is specially designedto ensure quick heat dissipation with therate up to 40% and continuous service.The integral enclosed structure isapplicable to chemical plant and electroplated factory
2.Side magnetic baking device:
atest designof magnetic orce generator, it allows instantbrake as soon as the power off.
3.Support frame:
Consist of two sturdy steel plates
4.Transformer:
24V/36V/48V
Used to prohibit unexected accident,for example, Electric leakage while raining.
5.Electromagnetic contractor:
Long working life.
6.Mechanical braker:
Dual braking systemto be saft and reliable.
7.Chain:
Chinese Chain Or Imported FEC80 ultra heat-treatable alloy aluminum, It can used in poor environments such as raining, sea water and chemical.
8.Reverse protecting device:
special cable solution protect control wire system.
9.Hook:
hot forging with perfect strength,hard to break. The lower hook is ensured by 360 degree rotation with safety tongue piece.
10.Push button:
Waterproof, lifght and durable.
Technical Parameter
Model LTCH
0.5-01S 01-01S 01-02S 1.5-01S 02-01S 02-02S 2.5-01S 03-01S 03-02S 03-03S 05-02S
Capacity(Ton) 0.5 1 1 1.5 2 2 2.5 3 3 3 5
Lifting speed(m/min) 7.2 6.8 3.6 8.8 6.6 3.4 5.6 5.6 3.3 2.2 2.8
Motor Power(kw) 1.1 1.5 1.1 3 3 1.5 3 3 3 1.5 3
Net Weight(kg) 47 65 53 108 108 73 115 115 131 85 145
Model LTCH
0.5-01D 01-01D 01-02D 1.5-01D 02-01D 02-02D 2.5-01D 03-01D 03-02D 03-03D 05-02D
Capacity(Ton) 0.5 1 1 1.5 2 2 2.5 3 3 3 5
Lifting speed(m/min) 7.2/2.4 6.9/2.3 3.6/1.2 8.8/2.9 6.6/2.2 3.3/1.1 5.6/1.8 5.6/1.8 3.3/1.1 2.2/0.8 2.8/0.9
Motor Power(kw) 1.1/0.37 1.8/0.6 1.1/0.37 3.0/1.0 3.0/1.0 1.8/0.6 3.0/1.0 3.0/1.0 3.0/1.0 1.8/0.6 3.0/1.0
Net Weight(kg) 54 75 60 128 128 83 135 135 151 95 165
Other Specification for Single and Double Speed Electric Chain Hoist
Rotation speed(r/min) 1440
Insulation Grade F class
Traveling speed(m/min) Slow: 11m/min & Fast: 21m/min
Power Supply 3-Phase 380v 50Hz
Control Voltage 24V 36V 48V
NO.of Load Chain 1 1 2 1 1 2 1 1 2 3 2
Spec.of load Chain Φ6.3 Φ7.1 Φ6.3 Φ10.0 Φ10.0 Φ7.1 Φ11.2 Φ11.2 Φ10.0 Φ7.1 Φ11.2
I-Beam(mm) 75-125 75-178 75-178 82-178 82-178 82-178 100-178 100-178 100-178 100-178 112-178

Drawing
Workshop 5S management
