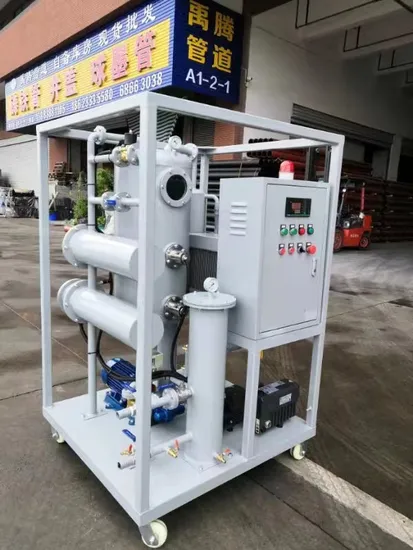

Weshine Waste Insulation Oil Filtration Recyling Filter
| US$18,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
VS-200BY
Type
Return Filter
Mechanical Principle
Pressure Filtration
Performance
Sophisticated Filters
Flow
12000L/H
Operating Vacuum
< 40Pa
Working Pressure
no more than 0.5MPa
Power
220V 60HZ thress phase 4 wires
Whole Power
more than 135KW
Transport Package
Plywood Case
Specification
1850mm*1350mm*2000mm
Trademark
WESHINE
Origin
Baoding, China
HS Code
9030332000
Production Capacity
10set Per Month
Product Description
Oil Recyling Machine:| Serial number | Project | Technical parameters, features, configuration introduction |
| 1 | Flow | 12000L /h |
| 2 | Working vacuum | ≤ 40Pa |
| 3 | Vacuum leakage | ≤ 11Pal/s |
| 4 | Work pressure | ≤ 0.5MPa |
| 5 | Thermostatic control range | 20~80ºC (adjustable) |
| 6 | Power supply | 22 0V/ 6 0HZ (three-phase four-wire), or according to customer needs |
| 7 | Noise | ≤78dB |
| 8 | Heating power (KW) | Comply with the operation requirements of the oil filter, reach the national standard, 120 KW |
| 9 | Total power | ≥135KW |
| 10 | Inlet and outlet pipe diameter | DN50 |
| 11 | Equipment weight | About 2000Kg (the actual object has some deviation) |
| 12 | Dimensions | About 1850mm×1350mm×2000mm, can be customized according to specific requirements |
| 13 | Continuous working time | ≥ 600h |
| 14 | Mean time between failures | ≥ 8000h |
| 15 | Oil quality index after treatment | 1. Water content in oil: ≤3PPm (GB/T7600) |
| 16 | 2. Gas content in oil: ≤0.5% (GB/T423) | |
| 17 | 3. Oil dielectric loss: ≤0.05% | |
| 18 | 4. Oil breakdown voltage: ≥70KV (GB/T507) | |
| 19 | 5. Particle size: 5um ~ 50um Number of mechanical particles: ≤ 1000 (particle size refers to the number of mechanical particles per 100ml of oil 5um ~ 50um, particles exceeding 100um are not allowed) | |
| 20 | 6. Filtration precision: Pre-filter element precision: 20um Rear filter element accuracy: 0.2um |
