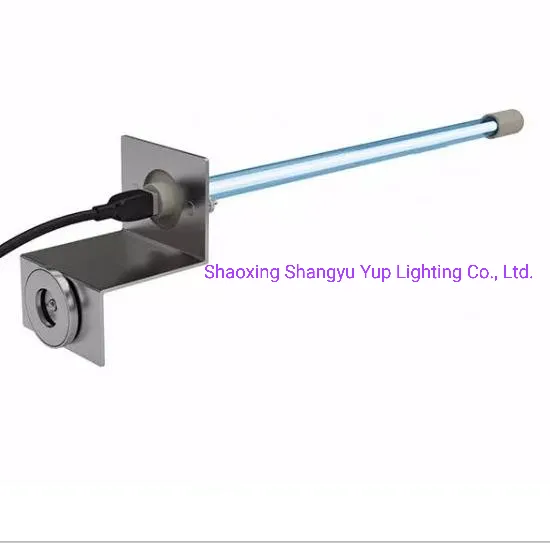

New Arrival Z Bracket 24V 110V 240V Disinfection Lamps Air Duct Lights in HVAC System Air Handling Units

Product Description

UV Lamp Air Purifier
Specifications
·24VSMART BALLAST 3000 hours lifetime
· Power Source:Electrical
·TypeGermicidal:UltraViolet Lamp 254nm
·Certification:CE
· Input:24VAC50-60Hz 1.0A
·Output: 14w-18W
·UVBulb size:14"Lamp (bulb only). TotalLength:16
·Open GircuitVoltage:600VDC
· IntelligentVoltage Protection(VP):protects the A/Csystem from electrical overload
Dimensiones:
14°
4.75
InstallationInstructions
1) ChooseInstallationType
Use the custom bracket toinstallthe UVlamp anywhereinside the air handler.Orusethe exclusive mounting flange to installthe UVlamp directly in the coildelta plate.
CAC
ACaDh Pus
A-CollSlab CollLamp Installation
· Disconnectpower tothe air handler and open access panels.
·Installthe lampbracket at the desiredlocation with "MAG" MAGNETon endof bracket. Besureplasticcord shieldis in placeto protectlampcordfrom sharp metaledges.
"MAG"Bracket Installation
· Slit insulation on thebackor side wall of air handler and attachMagnetic bracket to the wall.
A-Coil Dalta Plate Lamp Installation
·Dilla 7/8"holeinto the delta plate and place gasket (included)around hole.
·Insert lamp directlyintohole and secure the lampto thedelta platewithtwoself-drillingscrews.
2) Install power Supply
Installthe power supplyina suitable location inside thecontrol panel of the air hander using two self-drilling screws(included).
Connectthepower tocontinuous 24V power.
3) Connect Lamp
Connect lampconnector to power supply connector.Connectors arokeyed forproper alignment. Be sure tofully seat the
conneproper electrical connection and water resistance.
USA ENVIRONMENTALPROTECTION AGENCY CERITFICATION EPA-Est.No.96456-CHN-1 2020

Watts:	18W
Size of mount:	65mm X 37mmX 45mm
Input voltage:	110V
Base of description:	4 Pin Single Ended
Length of bulb:	357mm
Style:	z mount with magnet
Type:	virus killing for HVAC systerm
Color of mount:	Black/white
material of z mount:	metal with painting
Cable length	1.8m

220V also available.
Package details: one unit in one small box, and 20boxes in one carton.
Gross Weight: 22kgs( including bulbs) for 20units.

China only we have CE for HVAC UV lights, see below

The UV air purifier with magnet can be easily installed with powerful UV results to control microbes, reduce allergens and irritants such as viruses, bacteria, etc. in any HVAC system.
Our advantages: 110V /220V Power Supply for energy savings, strong magnetism, high humidity environments. 5-year power supply warranty. Also available with 120v plug.
