Pet Bottle Recycling Machine

Product Description

pet bottle recycling machine
This lmachine is used to recycle the waste pet bottles and transforms them into clean PET flakes. And the flakes can be further processed and reutilized with high commercial value. The production capacity we can make on the PET Bottle washing and recycling line can be 500kg to 2000kg per hour.
Features:
1. Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles to be clean PET flakes material and in order to producing ployester fiber
2. Friendly control system (PLC integrated & separated control on each machine) and touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 and touch screen panel, easy for operation, monitor and emergency stop.
4. The whole production line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.
System Configuration:

No.	Machine Name	Note
1	Bale breaker	for bottle bricks
2	Belt Conveyor	adjustable
3	Metal detector	select metal
4	Label Remover	Remove the label from the bottles.
5	Manual Sorting Belt	adjustable
6	Belt Conveyor	adjustable
7	Crusher	Blade metal:alloy(9CrSi or SKD-II)
8	Screw Loader	Made of Stainless steel
9	Hot Washer	Made of Stainless steel ,can put some soda
10	High-speed Friction Washer	Made of Stainless steel
11	Float Washing Tank x2sets	Single-screw or Two-screw
12	Dewatering Machine	Vertical or Horizontal
13	Drying system	Made of Stainless steel
14	Storage hopper	Normally 1000L
15	Flakes Pneumatic Separating Machine	New style label remover for flakes

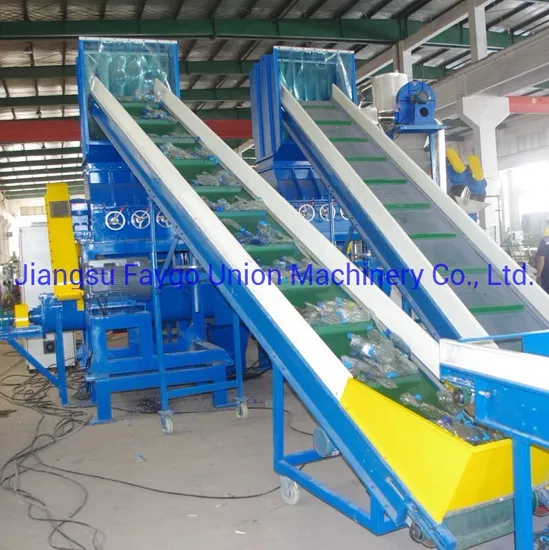

Some pictures of pet bottle recycling machine
