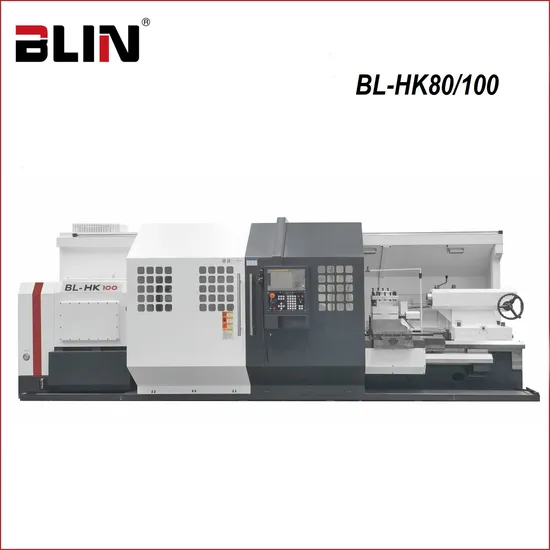

Big Bore Spindle CNC Lathe Flat Bed with Turret (BL-HK80/100)
| US$49,000.00-76,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
BL-HK80/100
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Transport Package
Plywood Case
Trademark
BLIN
Origin
Ningbo China
HS Code
8458110090
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
Big bore spindle cnc lathe flat bed with turret(BL-HK80/100)- Adopt China best high strength compound resin sand cast iron
- Adopt mono-block floor type bed, super high rigidity
- Aging treatment,has good vibration absorption and rigidity
- Guideway hardened by ultrasonic frequency and precise ground, good precision keeping
- Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force
- Adopt 4 class Integral gear box type spindle,big bore,high rigidity,suitable for heavy turning
- Hydraulic type Automatic class switch Details:
| Item | Specification | Unit | BL-HK80 | BL-HK100 |
| Capacity | Guideway width | mm | 650 | 755 |
| Max. swing dia. over bed | mm | Φ800 | Φ1040 | |
| Max. swing dia. over slide | mm | Φ480 | Φ650 | |
| Max. turning length | mm | / | 1300/2800 | |
| Center distance | mm | 1000/1500/2000/3000/4000 | 1500/3000 | |
| Spindle | Spindle bore | mm | Φ105 | Φ130 |
| Spindle head type | / | A1-11 | A2-15 | |
| Spindle speed | rpm | 20~1000(4 class, hydraulic automatic class switch, stepless speed in every class) 20~204, 39~354, 71~642, 124~1000 | 3.5~500(4 class, hydraulic automatic class switch, stepless speed in every class) 3.5~160, 5~233, 7~345, 11~500 | |
| Spindle motor | kw | 15(servo) | 22(servo) | |
| Chuck size | mm | Φ315(Manual 3-jaw chuck) | Φ630(Manual 3-jaw chuck) | |
| X/Z axes | X axes travel | mm | 430 | 520 |
| Z axes travel | mm | 760/1350/1850/2850/3850 | 1300/2800 | |
| X/Z axes rapid speed | m/min | 6/7 | 3/6 | |
| X axes ball screw O.D./pitch | mm | Φ40/5 | Φ40/6 | |
| Z axes ball screw O.D./pitch | mm | Φ50/8(1000,1500),Φ63/8(2000,3000),Φ63/10(4000) | Φ63/10 | |
| Tool post | Tool turret type | / | Vertical 4 station electric tool turret | Vertical 4 station electric tool turret |
| Tool shank size | mm | 32×32 | 40×40 | |
| Tailstock | Tailstock quill dia. | mm | Φ100(1000,1500,2000,3000), Φ140(4000) | Φ160 |
| Tailstock quill travel | mm | 250(1000,1500,2000,3000), 200(4000) | 300 | |
| Tailstock quill taper | / | MT5#(1000,1500,2000,3000), MT6#(4000) | MT6# | |
| Accuracy | X/Z axes positioning accuracy | mm | 0.026/0.036(1000),0.040(1500,2000),0.048(3000),0.056(4000) | 0.040/0.050(1500),0.060(3000) |
| X/Z axes repeatability positioning accuracy | mm | 0.007/0.011(1000),0.014(1500, 2000),0.020(3000,4000) | 0.011/0.018(1500),0.025(3000) | |
| Turning workpiece roundness | mm | 0.004 | 0.01 | |
| Others | Total power | KVA | 40 | 40 |
| N.W. | kg | 7200/8000/8600/9600/11000 | 10500/12500 | |
| Overall size(L×W×H) | mm | 4280×2200×1900 (1000) 4880×2200×1900 (1500) 5800×2260×1900 (2000) 6850×2260×1900 (3000) 7700×2350×1900 (4000) | 4640×2300×2100(1500) 6150×2650×2290(3000) |
Main parts list:
| Item | Brand |
| Spindle bearing | CHINA top |
| Ball screw bearing | CHINA top |
| Ball screw | CHINA top |
| Lubrication pump | JAPAN-LUBE |
Standard configuration: - FANUC 0i TF CNC Controller
- Manual chuck
- 4 station tool post
-Manual tailstock
Optional configuration: - SIEMENS 808D/GSK980TDi
- Steady rest
- Follow rest
