10 Feet China Linyi Spindle Less Wood Peeling Machine

Product Description

Product Description
The spindleless rotary peeling machine is used to process log into continuous veneer strips for plywood and wood based panel.
It is mainly used to recycle the remaining wood cores peeled by the spindle rotary peeling machine or peel the smaller log processed by the wood log debarker.
USAGE:
Cut the log into veneer.
For furniture, decoration, construction...

Working principle:
1. The wood log is fixed by 3 rollers.
2. With the continuous rotation of rollers,
the log will be peeled into veneer by knife.


Product Parameters

1	Model	BWXQ-L1500-D550	BWXQ-L2700-D550	BWXQ-L3300-D550
2	Max. log length	1500 mm	2700 mm	3300 mm
3	Log diameter range	32 - 550 mm	32 - 550 mm	35 - 550 mm
4	Veneer thickness	1 - 3 mm	1 - 3.6 mm	1 - 3.8 mm
5	Peeling speed	45 - 90 m / min (adjustable)	45 - 90 m / min	0 - 80 m / min
6	Total motor power	33.9 KW (11+5.5*2+7.5+2.2+2.2)	41 KW ( 7.5 * 4 + 11)	75KW ( 11*2+15*2+15+4+4)
7	Machine size	4600 * 2000 * 1600 mm	5300 * 2100 * 1500 mm	5300 * 2100 * 1500 mm
8	Machine weight	6800 KG	8500 KG	9300 mm

Above parameters are just for reference, they can be customized according to requirements

1	Model	BWXQ-L3300-D550
2	Log length	3300 mm
3	Log diameter	35-550 mm
4	Veneer thickness	1-3.8 mm
5	Peeling speed	0-80 meters/min
6	Single roller	diameter 125 mm
		R87 hardened reducer, 2 pieces
		11 KW motor, 2 pieces
7	Double roller	diameter 125 mm
		K87 hardened reducer, 2 pieces
		15 KW motor, 2 pieces
8	Feeding	screw diameter 95 mm
		R87 hardened reducer+ 15 KW servo motor, 1 piece
		Oil-immersed slide bar, sliding block
9	Guillotine	4 KW servo motor, RV130 reducer
10	Rubber roller	diameter 230 mm, length 3300 mm
		RV130 reducer, 4 KW motor
11	Peeling knife size	3300*160*13 mm
12	Control system	22 KW inverter for single roller
		30 KW inverter for double roller
		15 kw inverter for feeding
		5.5 KW inverter for guillotine
13	Total motor power	75 KW
14	Machine size	5300*2100*1500mm
15	Machine weight	9300 KGS

Machine Features
Main frame:
made of high-strength steel to ensure the stability and durability of the structure
Rollers:
Chrome plated for more wear resistance, with various patterns to adapt different kinds of wood and to increase friction, the log is stably fixed on the machine for rotary cutting.
Servo Motor:
Equipped with frequency converter,
adjust rotary cutting speed according to needs.
Precisely control the size, thickness and quality of every veneer.
Lead screw:
International famous brand,
hardened by quenching treatment, longer life
PLC system:
Simple interface, simple operation
Safety protection device:
Set protective covers in key parts to avoid accidents according to past experience.

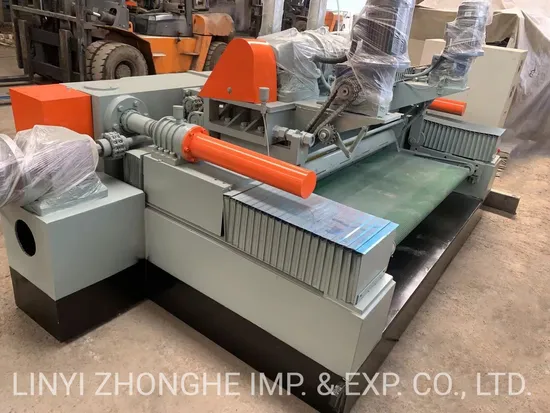

Machine Photos for Reference
