Nflg VSI Sand Making Machine Stone Crusher Sand Make Production Line

Product Description

US

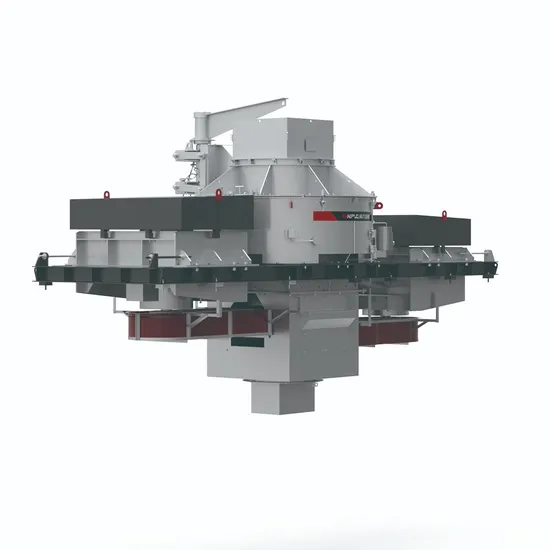

Series Vertical Shaft Impact Shaping& Sand Making Equipment
The US series vertical shaft impact shaping & sand-making machine is a new generation product jointly developed by NFLG. It adopts low-speed impact crushing, which reduces the wind resistance in the crushing cavity and increases the relative speed of the crushed material impact, there by improving the overall crushing ratio and shaping effect. The US series vertical shaft impact shaping & sand-making machine integrates crushing, grading and dust removal to achieve powder removal and fine separation of materials.It is widely used in the shaping of medium and fine aggregates of various hardness and abrasion indexes and the manufacture of artificial sand.Product Description
Product Parameters

Model	Maximum feeding size(mm)	Capacity(t/h)	Spindle speed(r/min)	Power(kW)	Weight(Motor Excluded T)	Dimension
US(F)322H	≤40	≤200	1185-1620	250	10	4144×2449×3667
US(F)394H	≤40	≤400	965-1363	250×2	20	7100×3108×4620
US(F)496H	≤40	≤600	618-1040	300×2	30	7400×3860×5005
US(F)598H	≤40	≤800	697-836	500×2	40	8070×4267×5059
★ Note: The output is the approximate capacity measured by medium hardness materials, and the actual results will vary due to differences in feed size, rock type and material moisture content.

Model	Maximum feeding size(mm)	The moisture content	Capacity(t/h)	Spindle speed(r/min)	Power(kW)	Weight(Motor Excluded kg)	Dimension
US322HW	≤40	3%~21%	≤200	1185-1620	250	10	4144×2449×3667
US394HW	≤40	3%~21%	≤400	965-1363	250×2	20	7400×3108×4620
US496HW	≤40	3%~21%	≤600	618-1040	300×2	30	7100×3860×5005
US598HW	≤40	3%~21%	≤800	697-836	500×2	40	8070×4267×5059

Detailed Photos
3-5 times
Long service life, the service life of the rotor and wearing parts is 3-5 times that of the rotor of a general sand making machine.Save cost
Realize simultaneous powder removal and grading instead of a separate powder remover, greatly reducing equipment purchase and maintenance costs.Adjustable and controllable stone powder content
Crushing, grading and dust removal are integrated, and the stone powder content is adjustable and controllable. 5%-8% 15-20%
It can match the crushing ratio, needle shaped content at 5%-8%, and reduce the void ratio by 15-20%. Company Profile
After Sales Service
Applications
FAQ
1 : Are you original manufacture?
A:Yes. we are NFLG, an official leading manufacture in construction machinery in China.
Core products cover:
A. Asphalt Mixing, Concrete Mixing and Dry Mortar Mixing (Engineering Mixing);
B. Mobile Crusher & Screen, Stationary Crusher & Screen and Sand Making and Shaping Equipment (Materials Processing);
C. Construction Waste Processing Solution, Waste Sludge & Soil Recycling Solution and Decoration Waste Processing Solution(Construction Waste Processing).
2:What kind of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
4:What about the delivery time?
A:45 days after receving the deposit.
5:What about the warranty time?
A:12 months after shipment.
6.What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
