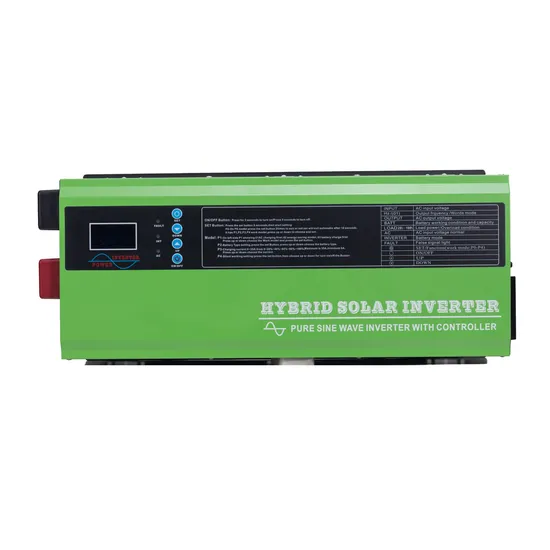

5000W off-Grid Solar Inverter Hybrid 5kw Pure Sine Wave MPPT Inverter Built in 100A Solar Charger
| US$170.20-1,566.20 | 1 Piece (MOQ) |
Basic Info.
Certification
CE, ROHS, ISO9001, ISO9001, RoHS, CE, FCC
Brand
Nova
Type
DC/AC Inverters, UPS(Grid/Battery Priority Optional)
Power Source
Solar Power
Grid Type
off-Grid Inverter
Output Type
Single
Nature of Wave String
Sine Wave Inverter
Nature of Source Flow
UPS(Grid/Battery Priority Optional)
Circuit Topologies
/
AC Charger
0-35A(Set by Yourself )
Peak Power
3 Times of Rated Power
WiFi / GPRS
Optional
Output
Pure Sine Wave, 120VAC or 240VAC, 50/60Hz
Protection
Short Circuit, Over Load, Over/Voltage etc
Transfer Time
8m Max
MPPT Solar Controller
30-120A
Voltage
12V, 24V, 48V, 96V
Display
LCD & LED
Transport Package
Carton
Specification
1/2/3/4/5/6/8/10/12KW
Trademark
N/M
Origin
Zhejiang, China
HS Code
8504403090
Production Capacity
3000PCS/Month
Packaging & Delivery
Package Size
87.00cm * 45.00cm * 25.00cm
Package Gross Weight
85.000kg
Product Description
5000W Off-Grid Solar Inverter Hybrid 5KW Pure Sine Wave MPPT Inverter Built In 100A Solar Charger1. With UPS function, grid power charging function, AVR voltage stavilization function.
2. Protection function: overload, high voltage, low voltage, short circuit, over temperature etc.
3. Steady loading performance with inductive loads, one-time soft start.
4. User friendly LCD display: energy saving mode, Grid /solar priority, charging voltage/current etc can be set by end user freely.
5. Pure sine wave output
6. With MPPT solar charge controller 30A-100A (Optional) With UPS automatic switching function, grid power charging function, AVR voltage stabilization function
7. It has perfect protection functions such as overload, high voltage, low voltage, short circuit, etc
8. DSP Intelligent Chip Control, Excellent Performance
9. Strong inverting capability, one-time soft start, triple output peak power, with all inductive loads
10. Full personalized LCD display, it can display various data information of inverter, solar charge controller
11. Grid power priority, energy saving mode and solar energy priority can be set freely to meet different occasions
12. Battery type, charging voltage grid power charging current (0-35A) can be set freely to meet the charging management of different types of batteries
| Item | Description | Size / Weight | |
| NVRPS-2K-30 | Rated Power: 2000W Pure Sine wave Peak Powe: 6000W DC Input: 12V or 24V AC Output: 110V or 230V, 50Hz/60Hz Built-in MPPT Solar Controller 30A | PACKAGE: 580*385*270mm N.W / G.W.: 19 / 21KG | |
| NVRPS-2K-50 | Rated Power: 2000W Pure Sine wave Peak Powe: 6000W DC Input: 12V or 24V AC Output: 110V or 230V, 50Hz/60Hz Built-in MPPT Solar Controller 50A | PACKAGE: 580*385*270mm N.W / G.W.: 19 / 21KG | |
| NVRPS-2K-80 | Rated Power: 2000W Pure Sine wave Peak Powe: 6000W DC Input: 12V or 24V AC Output: 110V or 230V, 50Hz/60Hz Built-in MPPT Solar Controller 80A | PACKAGE: 580*385*270mm N.W / G.W.: 19 / 21KG | |
| NVRPS-3K-50 | Rated Power: 3000W Pure Sine wave Peak Powe: 9000W DC Input: 24V or 48V AC Output: 110V or 230V, 50Hz/60Hz Built-in MPPT Solar Controller 50A | PACKAGE: 580*385*270mm N.W / G.W.: 22 / 24KG | |
| NVRPS-3K-80 | Rated Power: 3000W Pure Sine wave Peak Powe: 9000W DC Input: 24V or 48V AC Output: 110V or 230V, 50Hz/60Hz Built-in MPPT Solar Controller 80A | PACKAGE: 580*385*270mm N.W / G.W.: 22 / 24KG | |
| NVRPS-4K-50 | Rated Power: 4000W Pure Sine wave Peak Powe: 12000W DC Input: 48V AC Output: 110V or 230V, 50Hz/60Hz Built-in MPPT Solar Controller 50A | PACKAGE: 725*410*290mm N.W / G.W.: 31/ 34KG | |
| NVRPS-4K-80 | Rated Power: 4000W Pure Sine wave Peak Powe: 12000W DC Input: 48V AC Output: 110V or 230V, 50Hz/60Hz Built-in MPPT Solar Controller 80A | PACKAGE: 725*410*290mm N.W / G.W.: 31/ 34KG | |
| NVRPS-5K-50 | Rated Power: 5000W Pure Sine wave Peak Powe: 15000W DC Input: 48V AC Output: 110V or 230V, 50Hz/60Hz Built-in MPPT Solar Controller 50A | PACKAGE: 725*410*290mm N.W / G.W.: 33/ 36KG | |
| NVRPS-5K-80 | Rated Power: 5000W Pure Sine wave Peak Powe: 15000W DC Input: 48V AC Output: 110V or 230V, 50Hz/60Hz Built-in MPPT Solar Controller 80A | PACKAGE: 725*410*290mm N.W / G.W.: 33/ 36KG | |
| NVRPS-6K-50 | Rated Power: 6000W Pure Sine wave Peak Powe: 18000W DC Input: 48V AC Output: 110V or 230V, 50Hz/60Hz Built-in MPPT Solar Controller 50A | PACKAGE: 725*410*290mm N.W / G.W.: 35/ 38KG | |
| NVRPS-6K-80 | Rated Power: 6000W Pure Sine wave Peak Powe: 18000W DC Input: 48V AC Output: 110V or 230V, 50Hz/60Hz Built-in MPPT Solar Controller 80A | PACKAGE: 725*410*290mm N.W / G.W.: 35/ 38KG | |
| NVRPS-8K-50 | Rated Power: 8000W Pure Sine wave Peak Powe: 24000W DC Input: 48V AC Output: 230V, 50Hz/60Hz Built-in MPPT Solar Controller 50A | PACKAGE: 850*400*320mm N.W / G.W.:55 / 59KG | |
| NVRPS-8K-100 | Rated Power: 8000W Pure Sine wave Peak Powe: 24000W DC Input: 48V AC Output: 230V, 50Hz/60Hz Built-in MPPT Solar Controller 100A | PACKAGE: 850*400*320mm N.W / G.W.:55 / 59KG | |
| NVRPS-8K96-100 | Rated Power: 8000W Pure Sine wave Peak Powe: 24000W DC Input: 96V AC Output: 230V, 50Hz/60Hz Built-in MPPT Solar Controller 100A | PACKAGE: 850*400*320mm N.W / G.W.:55 / 59KG | |
| NVRPS-10K-50 | Rated Power: 10000W Pure Sine wave Peak Powe: 30000W DC Input: 48V AC Output: 230V, 50Hz/60Hz Built-in MPPT Solar Controller 50A | PACKAGE: 850*400*320mm N.W / G.W.:61 / 65KG | |
| NVRPS-10K-100 | Rated Power: 10000W Pure Sine wave Peak Powe: 30000W DC Input: 48V AC Output: 230V, 50Hz/60Hz Built-in MPPT Solar Controller 100A | PACKAGE: 850*400*320mm N.W / G.W.:61 / 65KG | |
| NVRPS-10K96-100 | Rated Power: 10000W Pure Sine wave Peak Powe: 30000W DC Input: 96V AC Output: 230V, 50Hz/60Hz Built-in MPPT Solar Controller 100A | PACKAGE: 850*400*320mm N.W / G.W.:61 / 65KG | |
| NVRPS-12K-50 | Rated Power: 12000W Pure Sine wave Peak Powe: 36000W DC Input: 48V AC Output: 230V, 50Hz/60Hz Built-in MPPT Solar Controller 50A | PACKAGE: 850*400*320mm N.W / G.W.:67 / 71KG | |
| NVRPS-12K-100 | Rated Power: 12000W Pure Sine wave Peak Powe: 36000W DC Input: 48V AC Output: 230V, 50Hz/60Hz Built-in MPPT Solar Controller 100A | PACKAGE: 850*400*320mm N.W / G.W.:67 / 71KG | |
| NVRPS-12K96-100 | Rated Power: 12000W Pure Sine wave Peak Powe: 36000W DC Input: 96V AC Output: 230V, 50Hz/60Hz Built-in MPPT Solar Controller 100A | PACKAGE: 850*400*320mm N.W / G.W.:67 / 71KG | |
