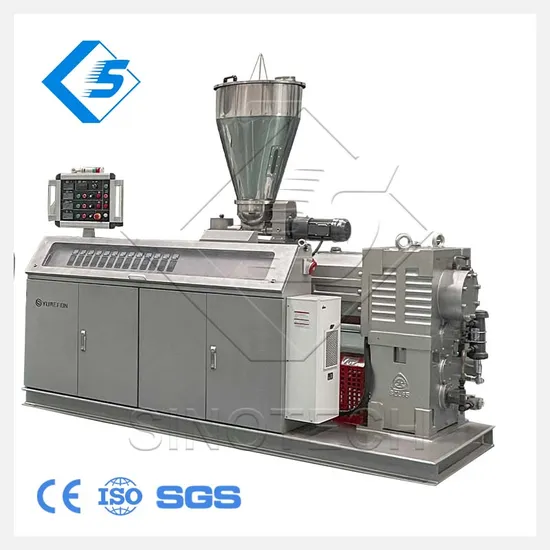

Sjsz 65/132 Sjz65/132 Conical Twin-Screw Extruder

Product Description

Product Description
sjsz 65/132 sjz65/132 conical twin-screw extruder
1.Frequency conversion timing.
2.Hard-toothed Gearbox.
3.Material of the screw and barrel is 38CrMoAlA, nitrogentreatment, screw is
designed especially for rigid PVC profile.
4.Screw adopts frequency conversion timing, 22 kW, Inverter is brand of Fuji.
5.Cast-aluminum heating coil, barrel is fan cooling.
6.Vacuum degassing designed, vacuum pump is 1.5 kW.
7.Fixed quantity feeding device, 0.55 kW motor, frequency conversion timing,
0.55 kW inverter, brand of Fuji.
8.Stainless hopper, side glass, with cover.
9. Concourse chip(inside is chrome plating ) is equipped on the extruder head, pressure sensor device is also equipped with.
10.Electric control cabinet: Contactor is brand of Siemens, temperature controller is brand of RKC(8 pcs), inverter is brand of Fuji, current meter and voltage meter are digital display type, electrical outlet.


Applications:

*This plastic extruder (conical two screw extruder, conical two-screw extruder, extruder, conical twin-screw extruder) machine is mainly used to process pp, pe, wpc, abs and other plastics.
*Equipped with auxilary machines, it can manufacture profile, pipes, sheets and other plastic products and granulation.
*It has the advantage of simple production technological process, high output, stable quality and low cost.
*SJZ Series conical double screw plastic extruders are special equipments which are suitable for various pvc powder to extrusion and molding.
*Equipped with different kinds of molds and auxiliary machines, it can produce kinds of pvc pipes, profiles, plates, bars and granulation.
Product Parameters
Specifications:

Item	SJZ-51/105	SJZ-65/132	SJZ-80/156	SJZ-92/188
Screw diameter(mm)	51/105	65/132	80/156	92/188
Screw amount	2	2	2	2
Screw turning	Different direction forth
Screw rotate speed(r/min)	1-30	1-34.7	1-36.9	1-32.9
Screw effective working length(mm)	1200	1440	1800	2500
Main motor power(kw)	22	37	55	90
Barrel heating power(kw)	18	24	38	86.8
Production capacity(kg/h)	80-140	250-300	320-450	500-600
Machine center height(mm)	1000	1000	1000	1200
Net weight(kg)	3500	4000	5000	10000
Exterior measure(long*wide*high)	3620*1050*2150	4235*1520*2450	4750*1550*2460	6725*1550*2814

Competitive Advantage:
1) Good performance
2) Long usage life
3) Good production stability
4) Reasonable design
5) High precision mold
6) Adopts AC frequency conversion technology
7) Uses imported electric components
8) Product characteristics: a) Good foam b) Smooth surface c) Antibacterial d) Wearable e) Antistatic f) Insulate
9) Widely used for agriculture and industry
10) Large marketing potential Detailed Photos

Easy Cleaning Stainless Steel Hopper Siemens Motor
Easy to Operate Controller Extrusion Die Mould
Mould Heating Conical Twin Screw Company Profile
Certifications

FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.Q2:What about the payment way?A2:TT,L/C at sight or A libaba trade assurance.Q3:If you can extend the guarantee time?A3:Yes.Our guarantee time is 24 months.Double times of other factory because we have strong confidence for our product.Q4:If you will send engineer coming to our factory to install and test the machines?A4:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.Q5:If you have CE,SGS,ISO certificate?A5:Yes,except these,if you also need other certificates,we also can help to apply.Q6:If we buy your machines, can you offer us wear-out spare pats?A6:Yes,We provide our high quality machine 2 years' guarantee,and we will also offer you 2 years wear-out spare parts for free.Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing. Q7:The voltage,if you can design according to our request?A7:Yes.
