Multi Heads Film Foil Tape Slit Spooling Machine Line Spool Winding Machine

Product Description

Product Description

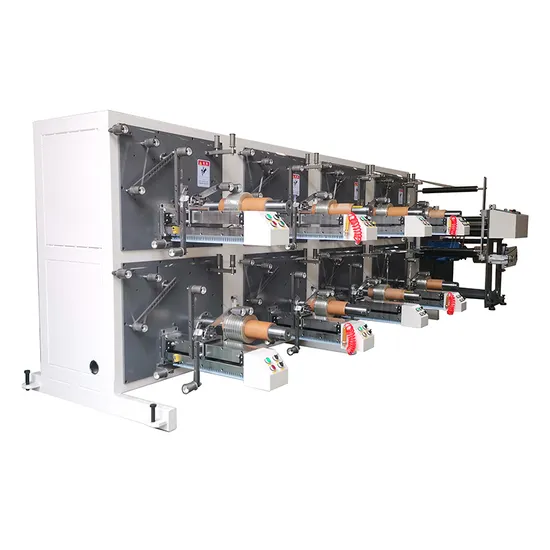

The slit spooling machine (multi-heads spooling line with slitter ) is applied for slitting jumbo roll of tapes and wind the slit strips to spools.
It is workable for PET, OPP film, insulating paper, non-woven fabric, mica tape, Alu/PET foil and etc.
The spool winder is designed in modularized structure, according to customer's request of capacity, we can build different no.s of spool winder in a spool winding line.
Product Features
1. Each spool winding head is driven independently. The spooling machine can wind different sizes of products at the same time.
2. The spool winders can do both step winding and traverse winding. Winding pattern parameters are set from HMI screen.
3. All the traction, winder and traverse guiding are driven by servo motors, which ensures stable and precise winding quality.
4. A swing roller is integrated before winding shaft to synchronize the winding speed and adjust the tension automatically.
5. Whole machine is centralized controled by PLC which also calculate the realtime unwind OD and rewind tape length.
6. Automatic stop when unwinding finishes and winding complete.
7. Both razor blades and circular blades are workable on the slit, so the machine can process various types of tape material.

Product Parameters

Material width	100 - 500mm
Material OD	800mm Max.
Slitting width	5 - 35mm
Spool width	400mm
Spool OD	400mm
Spool No.s	as per request
Speed	0 - 200m/min.
Power Source	3 phase 380V 50/60Hz
Air Source	5kg/cm2

Detailed Photos
Packaging & Shipping
Certifications
Our slitting machines and spooling machines are approved by CE inspection institute. We can provide Declaration of CE Conformity together with other shipping documents.
FAQ
1. Do you provide installation and commissioning service after delivery?
Yes, if in field installation and commissioning requested, we can send well trained staff to the buyers' place. The buyer should pay the round way tickets and accomodation costs.
2. How do you do aftersale service?
Firstly we need the users to report the detailed situation of the machine performance by video call or email. If only software / program problem, we can solve the issue by remote computer assistance. If any hardwares need to be replaced, we will send the replacement. Freight should be paid from the user side.
3. Do you accept customized order?
Yes, almost all these kinds of machines are made according to the buyer's request. Firstly we need to study customer's request details, and then make the offer accordingly.
4. How to select the EPC sensor options?
Normally non-transparent tape suits to using photoelectric sensor, transparent tape uses untrasonic sensor. Sure we can provide both. The cost is not much.
5. How to select tension control options?
For adhesive tapes, it's better to use tapering type tension control. Automatic tension sensor is good for unwinding smooth low tolerance tape materials.
6. Can we see some existing machines before confirm the order?
Yes, there are some customers quite near our place. Welcome to visit us to inspect the machines.
