Factory Supply Diesel Generator ATS Mts 100A 125A 160A 200A 250A 300A 400A 500A 630A 800A to 3200A 3p 4p Automatic Transfer Switch ATS Atys T M G M Atys M 3s

Factory Supply Diesel Generator ATS Mts 100A 125A 160A 200A 250A 300A 400A 500A 630A 800A to 3200A 3p 4p Automatic Transfer Switch ATS Atys T M G M Atys M 3s

US$38.00-2,250.00 1 Piece (MOQ)

Basic Info.

Model NO.
ATS 160A
Operation
Electric
Certification
CCC, CE, ISO9001
Type
Integrated automatic transfer switch
Poles
4P
Output type
Triple
Transport Package
Carton Box
Specification
35MM*25MM*20MM
Trademark
BAISHAN POWER
Origin
China
HS Code
8536500000
Production Capacity
100000 PCS / Year

Packaging & Delivery

Package Size
50.00cm * 50.00cm * 65.00cm
Package Gross Weight
29.000kg

Product Description

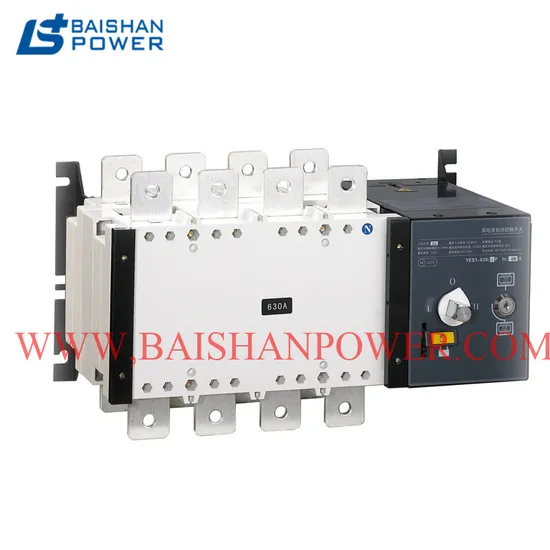

Product Description --Automatic Transfer Switch BS Series
1. Basic Specification:
Agreed thermal current lth 20 40 63 80 100 125 160 250 400 630 800 1000 1250 1600 2000 2500 3200
Rated insulation voltage Ui 750V 1000V
Rated impulse withstand voltage Uimp 8KV 12KV
Rated voltage of the switch copper AC 440V
Rated work curret le AC-33A 20 40 63 80 100 125 160 250 400 630 800 1000 1250 1600 2000 2500 3200
Rated connection capability 10 le
Rated breaking capability 10 le
Rated conditional short-circuit current 100KA 70KA 100KA 120KA 80KA
Rated short-time withstand current IS 7KA 9KA 13KA 26KA 50KA 55KA
Transfer time I-II or II -I 0.45s 0.6s 1.2s 2.4s
Control voltage of the switch motor DC24V AC220V AC280V

2.Performance:
1, Double complex contact, horizontal and vertical type frame basically, it have come to "Zero" arc(no arc chute);
2, Reliable machine interlock and elecric interlock, the executive union parts adopt independency overload disconnect switch,
it makes more reliable and safety.
3, "zero" techinique, can force to set"zero" under emergency situation(break off two ways power supply at the same time).Meet the requirement of the fire protection linkage.
4, Operate overload disconnect switch change over adopt singless electromotor drive, switch over smooth and reliable, no noise,
little wallop
5, Operate machine drive motor use only under the executive overload disconnect switch change over instanecus current across, outstanding energy saying.
6, Perform overload disconnect switch with mechanism interlock device. It ensure the common use, standby power working
reliable and not interference.
7, Distinct on and off position indicator, padlock function et.c safe realize the isolator between electric power and overload
8, High security, high automatization, high retiablility, use life more than 8000times

3.Application:
BS ATS used in Generator system, to changeover two power sources. Widely used at the field of
important power supply site,which transport, distribution power supply system and automatization system.
For fire protection, hospital, bank, building etc, where doesn't allowed power off.
4..construction
6.Packing:
Item No Qty/Carton Net Weight(KGS) Gross weight (KGS) Carton Size (MM)
L w H
BS2-100/X/CK 6 21 26.5 375 330 640
BS1-125/M1/CK 4 21.2 26.5 510 375 440
BS1-160/M1/CK 4 21.2 26.5 510 375 440
BS1-250/M1/CK 4 28 34 510 445 440
BS1-400/N/CK 2 34 38 535 340 685
BS1-630/N/CK 2 34 38 535 340 685
BS1-800/N/CK 1 39.7 46.7 665 360 370
BS1-1000/N/CK 1 40.5 47.5 665 360 370
BS1-1250/N/CK 1 41 48 665 360 370
BS1-1600/N/CK 1 49 56 665 360 370
BS1-2000/N/CK 1 98 109 670 550 590
BS1-2500/N/CK 1 100 111 670 550 590
BS1-3200/N/CK 1 10 113 670 550 590
