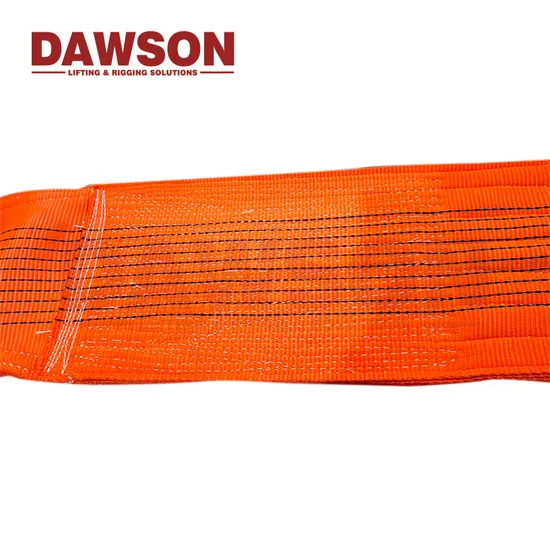

Dawson En1492-1 Wll 30t 30000kg Heavy Duty Polyester Webbing Sling for Lifting

Product Description

DAWSON EN1492-1 WLL 30T 30000KG Heavy Duty Polyester Webbing Sling for Lifting


Material: polyester polypropylene
Safe Factor: 5:1 6:1 7:1 8:1
Standard : ISO4878 EN1492-1:2000 JB/T8521-2000
Length: as required
Color: color code
Ply: single. Double. three and four-ply

A. Eye and Eye Flat Webbing Sling
a, Single-ply Eye and Eye Flat Webbing Sling
b, Double-ply Eye and Eye Flat Webbing Sling
c, Three-ply Eye and Eye Flat Webbing Sling
d, Four-ply Eye and Eye Flat Webbing Sling
Remark: Sling eye is divided into flat eye, reverse eye, eye folded 1/2 from one side, eye folded 1/2 from two sides and eye folded 1/3.
B, Endless Flat Webbing Sling
a, Single-ply Endless Flat Webbing Sling
b, Double-ply Endless Flat Webbing Sling
c, Three-ply Endless Flat Webbing Sling
d, Four-ply Endless Flat Webbing Sling

	Item	Color coded according to EN 1492-1	Working Load Limit with 1 webbing sling					Working Load Limit with 2 webbing sling
			Straight lift	Choked lift				Straight lift up to 45	Choked lift up to 45	Straight lift 45-60	Choked lift 45-60
					0-7	7-45	45-60
			1.0	0.8	2.0	1.4	1.0	1.4	1.12	1.0	0.8
	DSWSDP-201	WLL 1T	1.000	800	2.000	1.400	1.000	1.400	1.120	1.000	800
	DSWSDP-202	WLL 2T	2.000	1.600	4.000	2.800	2.000	2.800	2.240	2.000	1.600
	DSWSDP-203	WLL 3T	3.000	2.400	6.000	4.200	3.000	4.200	3.360	3.000	2.400
	DSWSDP-204	WLL 4T	4.000	3.200	8.000	5.600	4.000	5.600	4.480	4.000	3.200
	DSWSDP-205	WLL 5T	5.000	4.000	10.000	7.000	5.000	7.000	5.600	5.000	4.000
	DSWSDP-206	WLL 6T	6,000	4,800	12,000	8,400	6,000	8,400	6,720	6,000	4,800
	DSWSDP-208	WLL8T	8,000	6,400	16,000	11,200	8,000	12,000	8,960	8,000	6,400
	DSWSDP-210	WLL10T	10,000	8,000	20,000	14,000	10,000	14,000	11,200	10,000	8,000
	DSWSDP-212	WLL 12T	12,000	9,600	24,000	16,800	12,000	16,800	13,440	12,000	9,600

Products Show
Other Related Products Show:
Company Profile
DAWSON GROUP LTD. is an ISO 9001 certified firm, specializes in the field of Lifting & Hoisting Equipments, Lashing Equipments, Material Handling Equipments, Rigging & Marine hardware, Wire Ropes, Chains, Polyester Slings, Ratchet Straps, Auto parts, Tools and other products.
DAWSON puts customers' requirements firstly,provides timely and effective one-stop solutions. Standardized and efficient operating procedures ensure the goods are delivered accurately and quickly to all parts of the world. We are pleased to establish a strategic partnership with you.
Certificate
The Qualification-Certificate of DAWSON GROUP LTD. and correlative productsPolyester webbing slings, round slings, ratchet tie downs, anchor, anchor
chains, marine rigging hardware....
Most of our products are CE, TUV & GS certified. The marine hardwares we approved CCS,ABS, LR, DNV, BV, GL, KR, KN, and RINA certificates.
Testing
Package & Factory
Other Products

FAQ
Q1:Can I expect quality products?
Yes. All our activities are accredited to ISO 9001 and based on delivering the highest quality possible, both in products and services, ensuring long-term benefits and optimum performance. Also we got the below certifications: CE GS SUV, LR ABS(anchors and anchor chains). Our rigging hardware is manufactured under exceptional quality control and strictly adheres to the US,DIN,JIS,BS and AS standards.
Q2:Can I get a (free) sample?
Free cost if the quantity is small or value is not too high with the express charge covered by the buyers. And for some certain items after receiving the first formal order, we deduct the sample cost from it. Everything can be negotiated for a sincere cooperation.
Q3:What's your payment terms?
T/T in U.S.dollars or EUR. when the total price is higher than US$10,000.00, it is 30%T/T in adv, balance payment against the copy of B/L; when the total price is lower than US$10,000.00,100%T/T in adv.
Q4:What's your lead/shipment time? And how soon can I receive my goods?
For all of our products are manufactured according customers' order, the lead time is usually within 15-40 days after reception of your deposit. Usually, from China to Europe, it will take about 22 days; to west of American, 20 days. Usually shipped by sea, or air, DHL, UPS or Fedex, TNT.
Q5:What is your Minimum Order Quantity(MOQ)?
Different products with different limits. Please contact us to confirm. Generally, we are not doing retailing for we are supplying our quality products and competitive price to our distributors.
Q6:Who and where are you?
We are factory, seller, inspector, QA, QC, purchaser, service… We are in Qingdao City, Shandong Province, China, the base of China Rigging Center. Our min-metal forging and Grade 80 components factory located in Shandong Province with a long history of more than 50 years in these fields.
Q7:What products can you supply?
Rigging,marine,lifting,lashing,sling,mining,fishing,trucking,transporting,safety concerned products, and full set of rigging accessories, including trade service in the fields such as: material handling, load restraint, cargo control, anchor shackle, chain shackle, wire rope product, chain product, lifting component, chain sling, webbing sling, round sling, cargo tie down, ratchet straps and hooks…
Q8:How to order the target products?
Send us inquiry with detailed item description or with item number provided on MADE-IN-CHINA or our official website. Tell us the quantity, size, and packing demand you want. If possible please attach reference pictures to avoid misunderstanding.
