Auto Fill Liquid and Pellet and Small Pill Capsule Filling and Sealing Machine

Product Description

Product Description
NJP-260

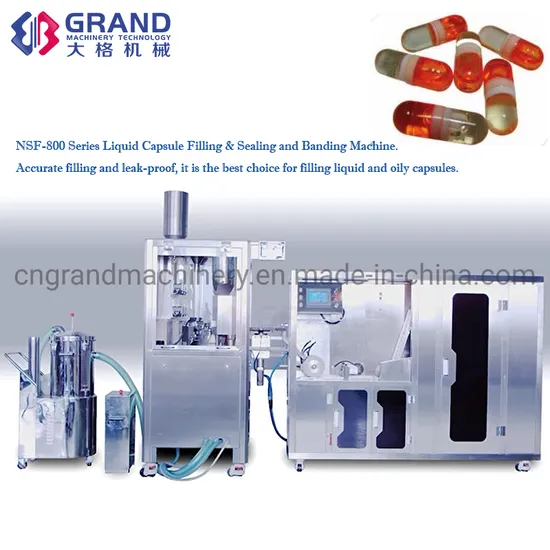

Liquid automatic capsule filling machine, imported liquid pump and servo feed system and the closed die wheel design, ensure the filling quantity difference, measuring precision, control within the ±3%. It can pack oily liquid, solution, suspension liquid or paste, etc. This machine adopts automatic frequency control of motor speed, convenient and intuitive operation. The machine as the new century a new convenient dosing filling way and the idea, is the ideal equipment in the pharmaceutical, food, health care products industry.NSF-600
It can complete sizing treatment and sealing treatment for hard capsule and hard capsule filled with liquid, enable internally package drugs to always be in sealing status in process of packaging, storing, transport and sales and thus improve stability of capsules and safety of medicine taking.
Compared with the high-cost soft capsule production line, hard capsule liquid is more in line with the expectations of most pharmaceutical companies and other manufacturers.
Solved long-term existed such technical difficulty as sealing of liquid capsule and meanwhile, it has greatly met vast pharmaceutical enterprises' higher requirements for medium and high ends of hard capsule preparations in terms sealing, quality assurance and anti-counterfeiting.
Sample PicturesDetailed Photos
Product Parameters

Model	NJP-260 Fully automatic Liquid Capsule Filling Machine
Production speed	260 Pcs/min
Machine weight	900kg
Overall dimension	1020×860×1970mm
Power	5.75KW
Power supply	3P,AC 380V; 50HZ
Capsule size	00#~5# and safety capsule A~E
Capsule use rate	≥99.5%
Noise Indox	≤75dBA
Feeding precision	Liquid feeding≥300mg, Precision≤±3%
Compressed air	0.06m3/min 0.3Mpa
Water supply	Water cycle pump compound water tank, or meet water source
Vacuum Degress	-0.02~-0.06 MPa
Water volume	250L/h
Enter pipe inner-diameter	20mm
Waterspout inner-diameter	27mm
Working temperature	21ºC±3ºC
Room size	Manual feeding≥2.6m,Vacuum feeding≥2.8m
Relative humidity	40~55%
Exhaust capacity	300m3/h
Control system	frequency stepless governor,PLC
Material	Capsule and liquid contact parts are made of SS304 and SS316l

Model	NSF-600 Hard Capsule Sizing Treatment Sealing Machine
Range of application	0# - 3#
Production efficiency	≤40,000 granules/hour (Water-soluble sealing materials) ≤50,000 granules/hour (Non-water-soluble sealing materials)
Rated power	2KW
Power supply	220/50HZ
Temperature of Water-soluble glue solution	30-40ºC
Environmental requirements	Around 25ºC and Humidity of 45ºC-75ºC
Weight	1000KG
External dimensions	2000*700*1650mm

√ We promise that the whole machine will be guaranteed for one year after all equipment is sold.
√ Each product is debugged and tested by professional quality inspectors before it leaves the factory, and only after it is
qualified can it leave the factory.
√ After leaving the factory, the transportation unit guarantees the safe delivery to the place designated by the customer.
√ We provide machine manuals and also support video operation training.
√ It is also possible to customize the language of the touchscreen to your native language.
