Recycling Waste Tire/Wood/Chip/Metal Scrap Double Shaft Shredder Machine

Recycling Waste Tire/Wood/Chip/Metal Scrap Double Shaft Shredder Machine

US$17,000.00-27,500.00 1 Set (MOQ)

Basic Info.

Model NO.
WT800
Service Life
<15 Years
Certification
CE, ISO9001
Voltage
Customized
Structure
Vertical
Main Shaft Length(mm)
800
Main Shaft Speed(Rpm)
10-15
Blades(PCS)
20
Diameter of Blades(mm)
420
Thickness of Blades(mm)
40
Motor Power(Kw)
2*22
Cutting Chamber Dimension(mm)
820*800
Overall Dimension(L*W*H)(mm)
3000*1250*2150
Weight(Kg)
5000
Trademark
WOBIDE
Origin
China
Production Capacity
100/Month

Product Description

Product Description
Model WT800
Main Shaft Length(mm) 800
Main Shaft Speed(rpm) 10-15
Blades(pcs) 20
Diameter of Blades(mm) 420
Thickness of Blades(mm) 40
Motor Power(kw) 2*22
Cutting Chamber Dimension(mm) 820*800
Overall Dimension(L*W*H)(mm) 3000*1250*2150
Weight(kg) 5000

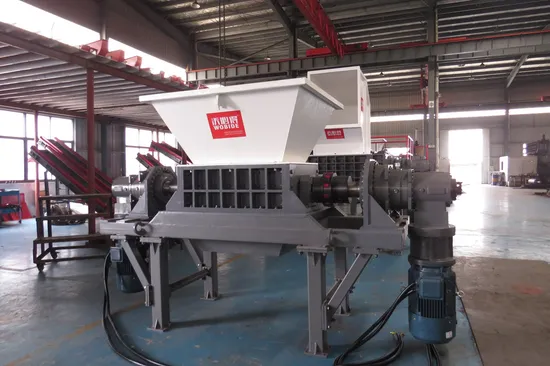

Detailed Photos Advantages:
1. The discharge port is designed without screen, which greatly improves the shredding efficiency. Each rotor is driven by independent motor and planetary gear reducer with large torque, stable performance.
2. The hydraulic feeding device can be customized, micro PLC for auto control of start and stop, co-rotation and reversal rotation of rotors while overload.
3. Blade could be customized according to different application. The blade material includes 60Si2Mn, H13, D2, and the structure has split type and integral type for option. Single claw or multiple claw blades are optional according to different materials and requirements for high efficiency. Application Application Of Double Shaft Shredder Machine:
Metal Waste E-waste Tire Large Tubular products Pallet Vehicle Cabinet Waste household appliance Barre
More Products

Company Profile
FAQ
1.What information shall I provide when I request for quotation?
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
