Guichun 898 Water Jet Loom with 2 to 8 Colors Cam/Dobby Shedding 2 Pump 2 Nozzle High Speed
| US$6,800.00-13,000.00 | 4 Pieces (MOQ) |
Basic Info.
Model NO.
898 Model
Computerized
Computerized
Precision
High Precision
Certification
CE, ISO9001: 2000, New Model for India Market
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
After Sales Service
Product Attributes
Made by Our Own Factory
Components
High and Stable Quality, Supplied for Many Years
Market
India, Indonesia, Vietnam, Pakistan, Turkey, etc.
Speed
400rpm-1200rpm
Price
Competitive Prices
Support
Strenthened Beams&Support
Acssesories
Competitive Acssesories
Support Structure
6 Pieces of Beam Support Optional
Spraying Process
Electrostatic/Powder Spraying Are Available
Transport Package
Packing Properly
Specification
40m³ high cube container
Trademark
GCKJ
Origin
Qingdao, China
HS Code
8446304000
Production Capacity
5000pieces/Year
Product Description

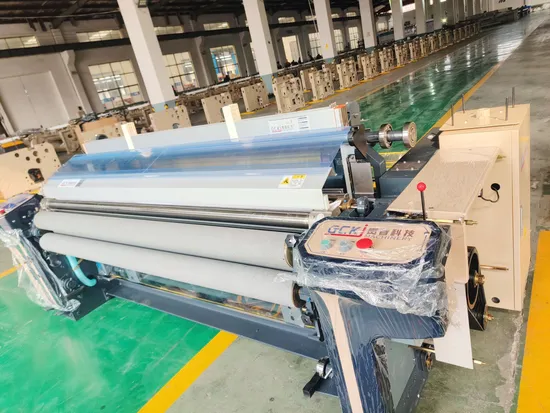

Guichun 898 series heavy duty water jet loom is specially designed for weaving high density and high grammage fabrics, featuring with high speed, high efficiency and stable operation capability, thus performs very well on weaving high density and high grammage fabrics. This model can be equipted with mechanical weft-storage system, single/double/three nozzle electronic free weft selecting system, cam shedding and dobby shedding, giving varieties to the patterns and ranges of fabrics.| Machine Specifications | ||
| Item | Specification | Optional |
| Reed Width | Nominal reed width(cm):170,190,210,230,260,280,300,340,360cm | |
| Effective reed:(170~260cm) 0~60cm | ||
| from 170 to 260cm Nominal reed width reduce 0~60cm | ||
| 0~80cm(280cm)0~80cm | ||
| Width more than 280cm, Nominal reed width reduce 0~80cm | ||
| Speed | Max 1200 RPM ( actual speed depends on the fabric type) | |
| Voltage | 220V/380V/415V | |
| Weaving Range | Spun:Ne100~Ne2.5 | |
| Filament:22dtex~1350dtex | ||
| Weft Selection | Two color, four color, six color and continuous expansion function | |
| Power | Positioning and stopping by electromagnetic brake control | |
| Motor drive 2.2KW-5.5KW | Direct drive motor(XINLIAO/SANHE/HUICHUAN/VEICHI,ETC.) | |
| Left hand&Right hand operation of control buttons | ||
| Inside Gear | TTG/Yuanyi,made in Taiwan,China,ultra-silent, ultra-wear-resistant, ultra-low vibration, high precision | |
| Inside Bearing | German bearing | |
| Weft Insertion | Maximum weft insertion rate: 2280m/min | |
| Combination of main nozzle and auxiliary nozzle | Drafting nozzle | |
| Profiled reed | ||
| Auxiliary main nozzle | ||
| Shedding | Crank connecting rod shedding: 4 pcs heald frame or 6 pcs heald frame | |
| Positive cam shedding:Up to 12 pieces of heald frame | ||
| Dobby shedding: up to 16pieces of heald frames | ||
| Jacquard shedding | ||
| Let Off | Negative loose warp or positive loose warp device | |
| Electronic let off | Double warp beam | |
| Diameter of the beam flange:Φ800mm | Φ914mm | |
| Φ1000mm | ||
| Take Up | Electronic take up | |
| Standard density 25-300 picks/inch | ||
| Maximum roll cloth diameter: Φ 600mm (cam, dobby, jacquard shedding) Φ 520mm (crank shedding) | ||
| Beating Up | "U" shaped beating up shaft | |
| Four-link beating-up (narrow width), six-link beating-up (wide width) | ||
| Configure rocker shaft middle support | ||
| Length Measurement&Weft Storage | Electronic weft feeder | |
| Weft Stand | Floor type 4 barrels (2 nozzles), Floor type 8 barrels (4 nozzles), Floor type 10 barrels (6 nozzle) | |
| Selvage | Planetary gear type Selvage device | |
| Yarn end Treatment | ||
| Discarded take-up 2pcs drum-type | ||
| Weft Cutting | Mechanical weft cutting device | Electronic weft cutting device |
| Lubrication | Main transmission part oil bath type, manual centralized oil supply | Electric central oil supply |
| Stop Machine Device | Weft yarn: photoelectric weft feeler, double probe | |
| Warp yarn: Electrical contact six-row dropper | ||
| Others: selvage yarn, discarded edge yarn and automatic stop when the yarn is broken | ||
| Stop reason: show the information on the display, multi-function 4-color light stop display | ||
| Automation | Inverter to adjust speed | |
| Electronic Conrol System | Huichuan,Xinliao,Weichi,Jiading,Sanhe,etc. | Or electronic control brand specified by the customer |
