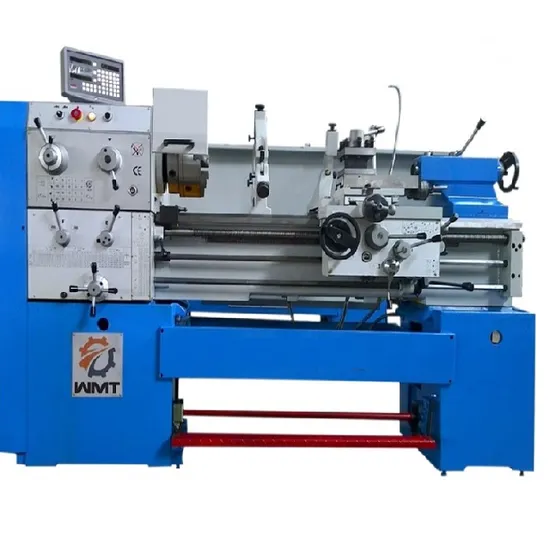

CD6250C horizontal heavy duty metal lathe machinery with ISO9001
| US$6,360.00-6,620.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CD6250C
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Station Toolpost
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Spindle Bore
85mm
Max. Swing Over Bed
360/400/500/600mm
Distance Between Centers
1000/1500/2000/3000mm
Machine
Lathe
Voltage
110V, 220V, 380V
Clour
Customer Appoint
Package Style
Fumigated Poly-Wood Case
Payment
T/T, Paypal, LC, West Union
Transport Package
Fumigated Poly-Wood Case
Specification
CE, SGS
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
8458190000
Production Capacity
80 Sets Per Month
Packaging & Delivery
Package Size
292.00cm * 115.00cm * 180.00cm
Package Gross Weight
2550.000kg
Product Description
FeatureHardened and ground bed ways.
Gears in headstock precisely ground to reduce noise.
Kinds of threads.
Electric system is reliable and safe.
Electromagnetic brake can be amounted when needed, and color at user option
Main Specification :
| SPECIFICATION | CD6236B/C | CD6240B/C | CD6250B/C | CD6260B/C | |
| CAPACITY | Max.swing over bed | Φ360mm(14") | Φ400mm(16") | Φ500mm(19-3/5") | Φ600mm(23-3/5") |
| Max.swing over cross slide | Φ185mm(7-1/4") | Φ225mm(9") | Φ325mm(13") | Φ360mm(14") | |
| Max.swing over gap | Φ490mm(20") | Φ550mm(21-1/2") | Φ630mm(25") | Φ730mm(29") | |
| Effective length of gap | 260mm(10-1/4") | ||||
| Center Distance | 1000mm/1500mm/2000mm/3000mm(40"/60"/80"/120") | ||||
| Bed Width | 330mm(13") | ||||
| HEADSTOCK | Spindle hole | B:Φ65mm(2-3/5")/ C: Φ80mm(3-3/5") | |||
| Spindle nose | ISO-D8 | ||||
| Spindle taper | 70mm(2-3/4") 85mm(3-1/4") | ||||
| Spindle speed(Number) | (15steps)24-1600/24-1600rpm(15steps) | ||||
| FEEDS | Longitudinal feeds range | 66kinds 0.072-4.038mm/rev | |||
| Cross feeds range | 66kinds 0.036-2.019mm/rev | ||||
| Metric threads range | 66kinds 0.5-28 | ||||
| Inch threads range | 66kinds 1-56inch | ||||
| Module threads range | 33kinds 0.5-3.5mπ | ||||
| Diametric threads range | 33kinds 8-56DP | ||||
| CARRIAGE | Max.travel of top slide | 130mm(5") | |||
| Max.travel of cross slide | 300mm(12") | ||||
| Max.size of tool shank | 20mm×20mm/25×25mm | ||||
| TAILSTOCK | Dia.of tailstock sleeve | Φ65mm(2-1/2") | |||
| Taper of tailstock sleeve | MT5 | ||||
| Max.travel of tailstock | 120mm(4-3/4") | ||||
| MOTOR | Main drive motor | 5.5kw | 7.5kw | ||
| Rapid traverse motor | 250w | ||||
| Coolant pump motor | 125w | ||||
| PACKING LxWxH | Center Distance(1000mm) | 2420mm×1150mm×1800mm(96"×46"×71") | |||
| Center Distance(1500mm) | 2920mm×1150mm×1800mm(115"×46"×71") | ||||
| Center Distance(2000mm) | 3460mm×1150mm×1800mm(137"×46"×71") | ||||
| N.W/G.W | Center Distance(1000mm) | 1640/2290kg 1800/2500kg | 1680/2330kg | 1770/2350kg | 1800/2500kg |
| Center Distance(1500mm) | 1850/2550kg 2010/2760kg | 1890/2590kg | 1910/2610kg | 2010/2760kg | |
| Center Distance(2000mm) | 2090/2860kg | 2130/2880kg | 2150/2920kg | 2250/3070kg | |
Standard Accessories:
3-jaw & 4-jaw; Steady rest & follow rest;
Face plate; Drive plate; Thread-cutting diameter; Longitudinal touch stop; Work lamp; Coolant system; Full-length splash guard; Foot brake and brake ribbon; Change gears; Dead centre and centre sleeve; Oil gun; Padding; One whole set spanner.
Optional Accessories:
Rapid travel
Live centre
Digital readouts (SINO)
CE-conformity (Chuck guard and Tool-post guard)
Magnetic electrical brake
Taper cutting function.
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
