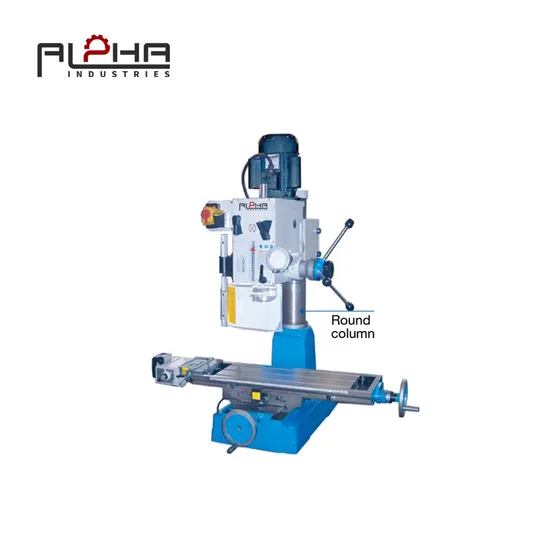

High Quality Manual Drilling Milling Machine MD40 High Precision Lathe

Product Description

Product Description
High Quality Manual Drilling Milling Machine MD40 Product Parameters

Model NO.	MD40	Controlling Mode	Artificial
Automatic Grade	Manual	Precision	High Precision
Certification	CE, ISO 9001	Condition	New
Specification	820x770x1140 mm	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Technical Parameters
Model No.	Unit	MD40
Max. drilling capacity	mm	40
Max. end milling capacity	mm	32
Max. face milling capacity	mm	80
Work table size	mm	800x240
T-slot size	mm	14
Cross travel	mm	210
Longitudinal travel	mm	500
Head stroke	mm	300
Taper of spindle bore		MT4
Spindle stroke	mm	120
Max. distance spindle to table	mm	440
Distance between spindle to column	mm	270
Step of spindle speeds		6
Range of spindle speeds	rpm	75-1600
Headstock tilted left & right	°	±90
Spindle box swivel degree	°	360
Motor	W	1100
Packing size	mm	820x770x1140
N.W.	kg	310
Standard Accessories
Drill chuck	Drawbar	Arbor
Toolbox & tools
Optional Accessories
Keyless drill chuck	MBV100 milling vise	Doulbe speed motor
Tapping assembly	Power feed	58pc clamping kits
Coolant system	Halogen work lamp	Digital readout

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
