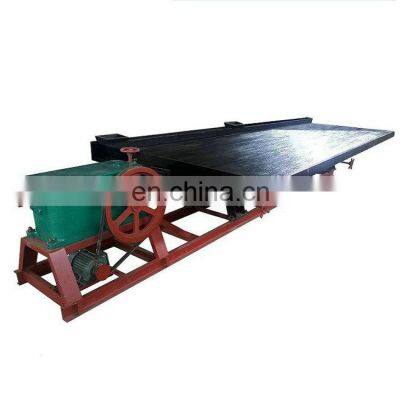

China fiber glass gold shaking table separator wholesale price

Product Description

Product Description
Product DescriptionShaking Table Application6-S shaking table is one of the main equipment for gravity classification, which is widely applied in the classification of tungsten, tin, tantalum, columbium and other rare metal and precious metal ore. Shaking table is designed for wet gravoty-base separatiom of minerla and other granular materials. It is effective in processing precious and base metal, rare and non-metallic minerals. Shaking table is a mine selecting machine for fine materials working by gravity. It is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium, coal, etc.ModelUnitCoarse ore DeckFine sandDeckSlime DeckDeck sizeLengthmm445044504450transmission end widthmm185518551855Concentrate end widthmm154615461546Maximum Feeding Size mm20.50.15Feeding Amountt/d30-6010-2015-25Feeding Density%25-3020-2515-25Strokemm16-2211-168-16Frequencyf45-4818-5350-57Water addedt/d80-15030-6010-17Transverse slope of Deck°2°30-4°301°30-3°301°-2°Longitudinal slope of Deck°1.40.92-Beneficiation Aream²7.67.67.6Cross-section Shape of DeckrectangularsawtoothtriangleMotor PowerKW1.11.11.1Transmission MechanismEccentric linkageMain Features of shaking table:The Shaking Table has the advantages of good separation capacity, stable performance, high efficiency, smooth, lower noise, easy operation and maintenance, etc.Shaking table is especially for tungsten ore with a variety of sulfide minerals. It has the following advantages compared with the gold table : it is easy to observe changes of slurry on shaking table; easy to operate; it has many different specifications for choosing.It is proved by a large number of actual production data and feedback from the customer after-sales information that this gold shaking table is simple operation in production process. The separation effect is especially prominent for tungsten mine including sulfur and other Sulfide Minerals. Secondly, its capacity is larger than 6-S shaking table. Its overall production costs are much lower than 6-S shaking table.Structure1. Head MotionGold shaking table cast iron to contain an oil reservoir for perfect splash lubricaion. This feature protects the moving parts, reducing the operating and maintenance cost to minimum.2. Deck: shaking Table have three distinct deck designs available. Course ore deck (1). Course ore deck is designed for recovering particles size from 0.5 mm to 2 mm; Fine sand deck(2). Fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; Slime deck(3). Slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm.3. Base SupportThree styles of installing foundation of shaking table.(1) Ordinary foundation(2) 10# Small Channel Steel Support(3) 28# Big Channel Steel SupportDetailed ImagesOur Service1. Pre-sale service: 1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory). 2) Welcome to visit us at any time, we will pick you up.2. Sale service: 1) Keep clients updated when our company gets advance payment.2) Confirm production details with clients.3) Take photos and send all pictures to customers during production.4) Inspection and testing the product before delivery; 5) Clients are welcome to inspect the equipment when the equipment are ready to delivery. 6) logistics service if needed.3. After Sale service: 1) Provide foundation drawing to the clients for installation.2) Besides, our engineers are available to help with installation and workers training.3) Repairing and maintenance if any problem during the warranty.4) Spare parts and wearing parts will be offered with production cost in 10 years. Packing & DeliveryRelated Products
