Product Description

The Disc Chipper is mainly deal with( round logs, branches, bamboo, cotton stalks) into smaller and uniform wood chips, which is used as material in pulp & paper industry, biomass industry, fiber and particleboard plants, and also well suitable as fuel for high intensity burning in modern heating plants.
The basic principle is as follows: a disc is vertically arranged, a cutting tool is arranged on the circumference of one side of the disc surface, and a main shaft is arranged at the center of the disc, so that the disc can rotate at high speed. Another conveyor belt, parallel to the main shaft, can transfer material to the circular periphery of the disc. The material is cut off by means of a cutter on the periphery of the disc.
The speed of that conveyor belt and the rotational speed of the disc are adjustable, so the thickness of the slice is also adjustable.
The dimension of chips which processed by disc chipper are usually determined by the number of knives and their setting, the disc rotating speed and the feeding speed, differing these parameters or removing one or more blades, adjusting the associated slot will help to control the final chip size.The disc chipper is not as energy-efficient as the drum-style design, but produces chips are of more uniform shape and size.

Item	BX-600	BX-800	BX-950	BX-1200	BX-1400	BX-1600
Knife disk diameter (mm)	600	800	950	1200	1400	1600
Knife quantity(pcs)	3	4	6	6	6	6
Input opener (mm)	150*140	170*160	220*210	350*250	460*350	540*380
Max Input diameter (mm)	130	150	200	250	300	350
Capacity (t/h)	1-3	3-6	8-12	12-18	20-30	30-45
Power of main motor (kw)	22KW	37KW	55KW	90kw	110	160
Dimension(m)	1.600*1*1.4	1.8*1.1*1.5	2*1.2*1.6	2.8*1.52*1.63	3.5*1.78*1.8	3.8*1.85*2.1
Weight (kg)	880	1680	2180	3580	4950	8750
Final chips' length(mm)	20-35mm	20-35mm	25-35mm	25-40mm	25-40mm	25-40mm

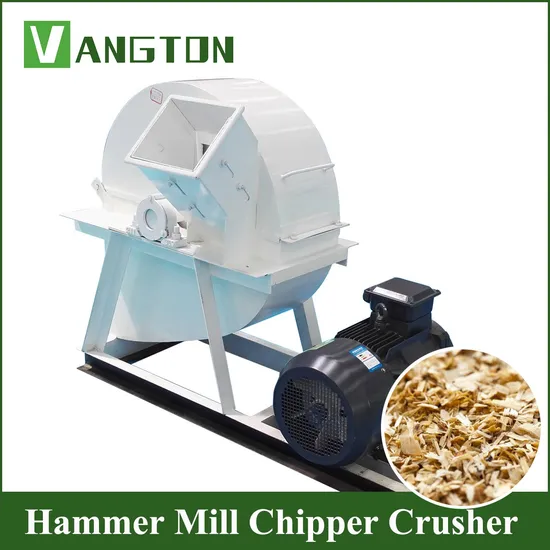

Structure of Disc Wood Chipper
1. Introduction
A) Wood Chippers are our products which specially designed for round logs, square blocks, wood staff, wood pieces and chipping.
B) Operation easy, maintenance simple, life is long and the noisy is low.
C) They would be the best choices for dealing with wood scraps.
D) It is our product which specially designed for round logs, square blocks, wood staff into 10-30mm size small wood pieces, 5-10mm wood sawdust.
E) It contains feeding belt conveyor and electrical cabint. operation is very easy and higly working efficiency.
F) This drum wood chipper would be the best choices for dealing with wood scraps.
G) Disc type and drum type wood chipper are the special equipment for producing wood chips, which is widely used in the raw material preparing process in the factories of flakeboard, fiberboard, papermaking and wood chips making plants.
H) Composed by pedestal and rotor disc, power connection device. Throwing knives fixed on the rotor disc.
I) Cuttingwoodthrownoutby the centrifugal forceofthe rotordiscrotation;
J) Big model woodchipper can bechangedintouniformFeeding by belt conveyor, above and below outlet you can choose
K) Suitable for small-diameter wood, twigs and sticks, wood size after cutting is 15mm-30mm
2. Working principle
The wood is fed into through feed port, when it touches to cut blade, along with the cutting knife plate of high-speed rotation to peel and cut, at last, these wood pieces are sent out through high speed steam-flow produced by fan blade in the knife plate.
3. Application of disc wood chipper
It is widely used in textile, papermaking, particle board, fiber board manufacturing industrial, etc.
Raw materials including logs, slab, veneer, bamboo, brushwood, corn stalk, cotton stalk, reed and other non wood fiber stalk, the length of chips can be adjusted in a certain range as needed.
4. Disc wood chipper features
A) Adjustable power engine, optional conveying system and feeding style.
B) Compact structure, reasonable design,easy to operate and maintain.
C) Large chipping capacity, wood chips length can be freely adjusted.
D) Wear-resisting materials for mat, high quality steels for dead knife and blades.
5. Advantages of Wood Shredder Chipper
1. Wood Shredder Chipper is used to cut the wood log and branches into chips,that is
used for material of man-made wood board.
2.This chipper can be equipped with electric motor or diesel engine. This used wood chipper is
designed to making refined wood chips. There chips can be used in pulp and paper making plant,
particle board plant, and so on .
3.This chipper can make chips size of 10-30 mm.
OUR SERVIC
Pre-sale service
1.Our professional and experienced engineer team helps every client to find his most suitable equipment or chose of plant.
2. Any kind of legal logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
After you choose:
1. We will make drawing and show you how the pant looks.
2. Every equipment will be checked carefully before packing. Video on machine testing is available.
3. Email you the tracking no., and help to chase the container until it arrives you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
FAQ
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment.
Q: what is your main market?
A: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia
Q: what is your producing time?
A: Producing time depends on that machines you ordered. Usually takes 45 days.
Q: what documents you can offer?
A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff.
Q: If equipments have some quality problem, how would you deal with?
A: We will responsible for all the quality problems. We will check the machine to get the problem. If need parts, will send them to you.
Q: how to install the equipments?
A: We send 1-2 engineer (100usd/person/day) to the local plant for helping install and commissioning equipments. To save time, our service stuff will tell you what to prepare in advance. We can also teach the workers to how to use the machines and how to make the products better.
