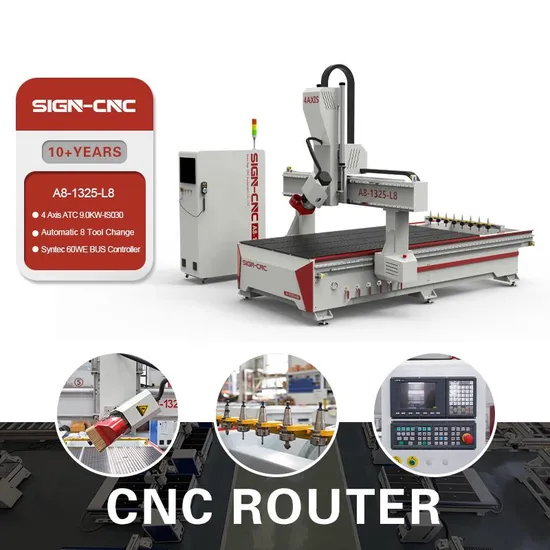

2024 New Innovations Axis Wood CNC Router Atc Router with Swing Head Router for Cutting and Engraving with Adequate Stock
Basic Info.
Model NO.
A8
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Product Name
Wood CNC Router
Spindle Power
9 Kw Hqd Air Cooling Spindle
Working Table
Vacuum Table with T-Slot
Working Table Size
1300*2500mm
Max. Moving Speed
45000 mm/Min
Max. Working Speed
30000 mm/Min
Vacuum Pump
5.5 Kw Air Cooling
Inverter
Detal 11 Kw Inverter
Motor
Syntec 1000W Servo Motor with Reducers
Control System
Syntec 60we
Rails and Racks
25 Guide Rail and Helical Racks
a-Axis Motors and Reducer
Syntec 400W AC Servo Motor with Harmonic Reducer
Working Voltage
AC380V/50/60Hz
Command Language
G Code
Tool Setting Instrument
Automatic Tool Setting Instrument
Transport Package
Wooden Case
Specification
1300*2500mm
Trademark
SIGN CNC
Origin
Jinan City, Shandong Province, China
Product Description
Product Description
2024 New Innovations Axis Wood CNC Router Atc Router with Swing Head Router for Cutting and Engraving with Adequate Stock
Detailed Photos
Product Parameters
| Model | A8-1325-L8 | A8-1530-L8 | A8-2030-L8 |
| Working area | 1300*2500mm | 1500*3000mm | 2000*3000mm |
| Z feeding | 400mm (option max height 600mm) | ||
| Frame structure | Steel casting-welding | ||
| Type of table cover | Vacuum table with T-slot | ||
| Vacuum pump | 5.5kw air cooling | ||
| Z axis transmission | Ball screw and 25 square guide rails | ||
| X Y axis transmission | 25# square guide rails + Helical rack | ||
| Max. Rapid Travel Rate | 45000mm/min | ||
| Max. Working Speed | 30000mm/min | ||
| Command Code | G code * .u00 * .mmg * .plt | ||
| Operating voltage | AC 380V/50Hz | ||
| Spindle power | HQD atc 9.0 KW | ||
| Spindle rotate | Left and right 180 degree | ||
| Tool Magazine | 8 - 12 | ||
| Type of cooling | Air cooling | ||
| Spindle Speeds | 0-24000rpm/min | ||
| Drive motor type | Syntec 1000w servo motor and driver | ||
| operating system | Taiwan SYNTEC 60WE bus control | ||
| Dust Collector | 3kw with double bags | ||
| Lubrication system | Automatic | ||
| Supported software | Artcam software, Type3 software | ||
| Operating conditions | Humidity: 30% -75%, temperature: 15 - 45 degree | ||
| Warranty | Two years | ||
Application and Sample
Applications Materials
1.Woodworking:wooden door and furniture,windows,tables and chairs,cabinets and panels,
3D wave plate,MDF,computer desk,
musical instruments,etc
2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,
literal-hole cut,lightbox mold,stamp,mould
3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC,etc
Packaging & Shipping
Company Profile
After Sales Service
1.Two year warranty time, we can repair and replace parts for free in 2 year.
2.Technical support in 24 hours online, such as whatsapp,Skype, E-mail,facebook,ect.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
If you have any needs, please feel free to contact us. Welcome to inquire.
