Desktop High Throughput Planetary Ball Mill with Four 100ml Stainless Steel Milling Jars

Product Description

Desktop High Throughput Planetary Ball Mill with four 100ml stainless steel milling jars
Introduction of planetary ball mill:

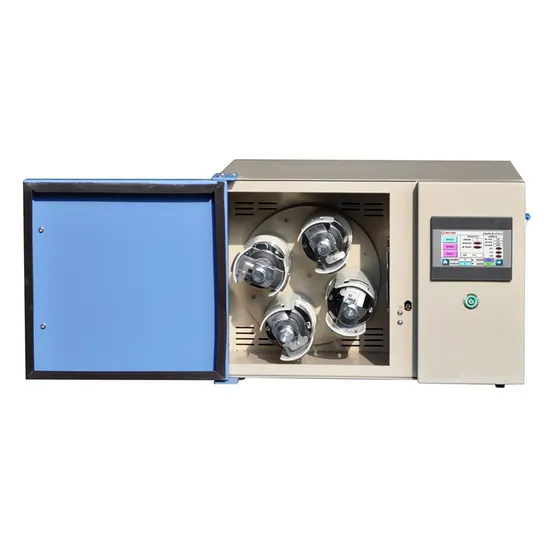

CY-MSK-SFM-13S is a benchtop high throughput planetary ball mill designed to achieve the most efficient milling and fine grinding quality. 4 grinding stations with 4 cavity SS milling jars allow you prepare up to 16 different materials (alloys, ceramics, chemical products, polymer composites, metal oxides, minerals, etc) in an efficient way. This is an ideal solution whenever high throughput material grinding/mixing is needed. It also can be used as four tanks (4x 100 ml) planetary mill removing 10 ml small tank.
Specifications of planetary ball mill:

Features	High throughput processing is feasible thanks to the 4-cavity SS jar. Up to 16 different materials can be processed at the same time with 4 jars placed in position. Bench-top compact design with 4 Grinding Stations. Large touch screen controller allows easy programming for multi-steps speed-up/down milling/grinding, rotate direction, timing control and cycling Efficient grinding benefits from the high centrifugal force and pulverization energy Suitable for mechanical alloying, mixing, homogenizing, pulverizing Minimum output granularity can be as small as 0.1 um
Working Voltage	208 - 240V AC (single-phase), 50/60 Hz 220V AC Power plug is not included. For operation under 110V, please use > 1000W transformer Power: 550W max.
Speed	Speed adjustable by tuning the frequency output to the AC motor Revolution: 324 RPM Mixing tank self-rotation: 648 RPM Optional: 24VDC motor is available upon request for using in glovebox of Ar gas
Speed Ratio	Revolution: Self-rotation = 1:2
Touch Screen Control	Digital display and inputs for speed and time Up to 10 recipes can be stored Max. 5 segments speed control per recipe, up to 10 Cycles Rotation direction selectable, clockwise-anticlockwise
Material Feed Size	Crispy materials< 10mm (Others<3mm)
Material Output Size	Wet Milling < 1um average Dry milling < 20um average Note: The output granularity is dependent on the material physical properties such as size, milling media and processing time. Minimum granularity can be as small as 0.1 um according to customer's feedbacks.
Milling Jars	Four sets of 4 cavity SS jars (10ml/cavity) with O-ring sealing are included, which can mill 16 samples per batch. Four sets of SS milling ball combo are included. Four jar holders can accommodate a single cavity jar with size up to 82mm O.D x 80mm H as optional We provide a wide range of jar/ball materials for contamination-free processes, such as Nylon, Alumina, Zirconia, agate...Please contact us for more details.
Noise Level	55~70 decibel
Holding Fixtures	Four sets of holding fixtures are included. Easy to tight for max. jar securing. Can hold jars with height up to 80mm
Warranty	One-year limited warranty with lifetime support Consumable parts, such as milling jar and balls are not covered by the warranty
Production Dimensions & Weight	500mm(L) x 350mm(W) x 330mm(H) 60KG

Other planetary ball mill:
Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use ****** Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service.
