Automatic Telescoping Sliding Door Drive System Ce Certification 3 Year Guarantee
Basic Info.
Model NO.
F-200D
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Opening Type
Induced
Special Function
Soundproof
Color
Silver
Certification
CE
Position
Commercial
Surface Finishing
Finished
Single Door Leaf Widths
700mm to 1500mm
Bi-Parting Door Leaf Widths
650mm to 1350mm
Single Door Leaf Weights
150kg
Bi-Parting Door Leaf Weights
120kg
Single Slide or Bi-Psrting Action
up to 3000mm Clear Opening Widths
Sound-Damping with Replaceable Track Rai
Back-up Battery Use on Emergency
Transport Package
Stardand Carton Package
Specification
CE
Trademark
Caterly/FUJI
Origin
Shenzhen, Guangdong, China
HS Code
83026000
Production Capacity
1000sets/Month
Product Description
Automatic telescoping sliding door drive system CE certification 3 year guaranteeCompetitive Advantage:
1, Wide voltage (AC80-250V)low power consumption when at work, energy saving when at leisure .
2, Intelligent design, easy to install and adjust .
3, Digital programs, running parameters can be revised easily.
4, Specially designed noise-reduction track rail produces noise greatly,ensure the rollers run smoothly .
5, Advanced brushless DC motor and the worm-reduction gear are integrated together .which has advantages such as higher efficiency, large torque and longer life span ,no need for mechanical lock .
6, Different triggering modes are available, such as fire warning, safety beam sensor, handle button, etc.
7, 1 millions times of tests passed.
8, CE,SGS,IS09000,CQC
9, Super quite, safe
10, 3 Year Guarantee
Technical parameters :
| Type | Single-Winged | Bi-parting | |
| Model | F-300D | F-300S | |
| Door Weight | 150kgX2(door) | 120kgx4(door) | |
| Door Width | DW=650mm to 1050mm | DW=650mm to 1050mm | |
| Installation | Surface Install | Surface Install | |
| Motor | DC24V Brushless DC Motor | DC24V Brushless DC Motor | |
| Controller | The Micro-controller | The Micro-controller | |
| Power Consumption | 75W | 75W | |
| Voltage | AC80 to 250V (Regulate) | AC80 to 250V (Regulate) | |
| Environmental Temperate | -20'c to +50'c | -20'c to +50'c | |
| Volume | 60decibel(max) | 60decibel(max) | |
| Starting Speed | 600mm/second | 550mm/second | |
| Starting Times | Regulate from 0.5 second to 23second | Regulate from 0.5 second to 23 second | |
| Transmission | Rack belt 150 S8M | Rack belt 150 S8M | |
| Open door range : Full-open /Half-open(The distance can be regulated) | Full-open /Half-open(The distance can be regulated) | ||
| PFC Power efficiency : 0.95 (AC100 Full load) | 0.95 (AC100 Full load) | ||
Controlle

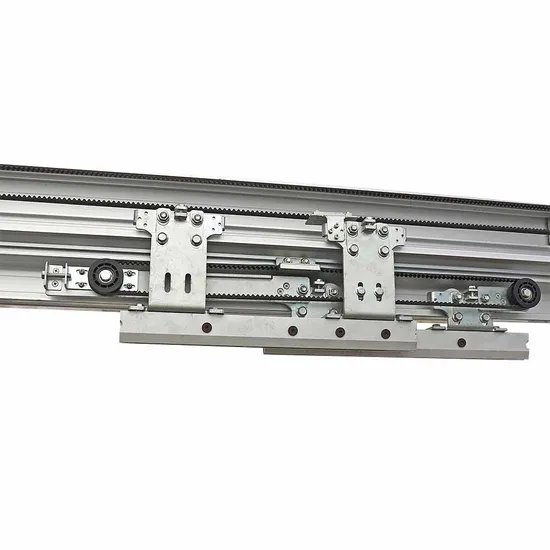

Automatic telescopic door operator:
