Rogowski Coil Integrator Mini S9 Integrator

Product Description

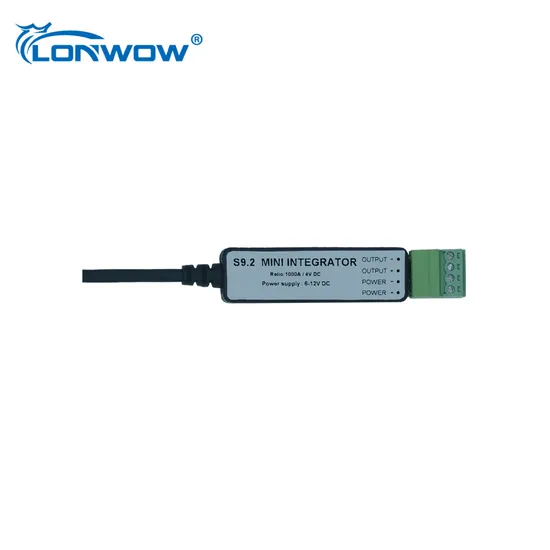

S9 Mini integrator
S9 is a mini Rogowski coil integrator combine with power meter or PLC,in a plastic enclosure, powered directly from the mains.
S9 can be combined with any model and size of Y-FCT or NRC Rogowski coils.
The available values are: 0-10VDC,0-10V peak,333mV rms .
On request the input value can be customized according to the application.
S9 and Rogowski coil is a very flexible system, suitable for high power load analysis, impulsive current monitoring, DC ripple measurement, etc.
Due to its specific features, flexible Rogowski coil is an extremely comfortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution.
Specification:

Model	S9.1	S9.2
Rated output	333V AC rms	4V DC(true-rms)
Maximum Output(overload)	4.5V AC peak	4.5V DC
Output Ripple factor	1%	Default 5% (relay to Response time)
Response time	≤1us	Default 100ms(adjustable)
Power consumption	70mW	100mW
Bandwidth	10Hz to 10kHz	30Hz to 1kHz
Power supply	5V or 6-12V	5V or 7-12V
Rated Input	100A 600A 1000A 3000A 6000A
Read Accuracy	1% typical at 1%(≥10A) to 200% of rated Current @25ºC
Phase error	≤0.5°
Linearity	±0.2% of reading(1% to 200% of range)
Minimum Current measurement	1A (Ripple 100mA)
Output on 0A (zero drift)	≤5mV (rated outut ≥2.5V:zero drift<10mV)
Temperature drift	200ppm/ºC
Weight	20g
Dimension	62.5*19*11mm
Operating temperature	-20ºC to 70ºC
Storage temperature	-30ºC to 90ºC
Relative humidity:	80% max.without condensation
Protection degree:	IP20
Other requirements,please contact us to OEM.
