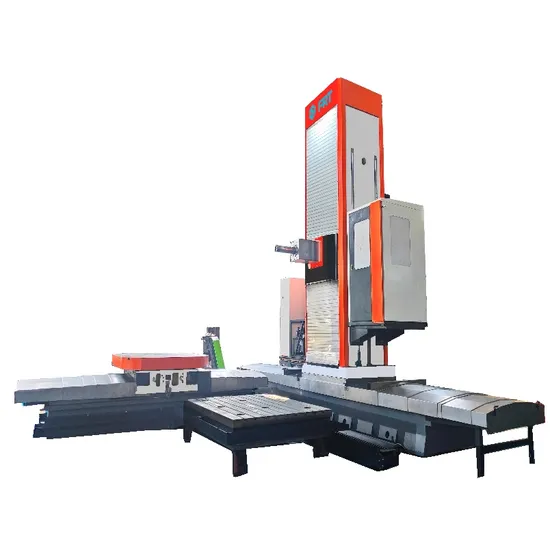

CNC Boring Machining
Henan Front CNC floor type boring and milling machine utilizes advanced international milling and boring machine design and manufacturing technology; to independently develop a high-performance floor type boring and milling machine with a central boring head.
Features of CNC Boring Machine:
1 : On the basis of inheriting the advantages of traditional machine tool foundation frames such as strong rigidity, symmetrical structure, and strong stability, innovative design concepts are adopted.
2 : All products adopt PRO/E three-dimensional design, and the main structure of the machine tool adopts finite element analysis.
3 : By optimizing the reinforcement structure and distributing the mass reasonably, the machine has a heavy load, strong rigidity, good dynamic characteristics, meets the requirements of high-power and
high-precision cutting, and is suitable for the processing of ultra large and ultra heavy parts.
4 : FRT-160B has various processing functions such as milling, boring, drilling (drilling, expanding, and reaming), threading, spot milling, etc. It can achieve 8-axis five linkage, with excellent performance, wide processing range, and high production efficiency. It can also be equipped with various functional accessories to expand the processing range, complete drilling, expanding, boring, grooving, and plane milling processing in one clamping process, further improving processing efficiency; Use contour control methods to mill inclined surfaces, box shaped planes, large hole end faces, two-dimensional, three-dimensional surfaces, and internal and external threads.
5 : The rotary workbench has continuous indexing function, which can continuously process workpieces from multiple angles. Machine tools have good rigidity, high accuracy, easy operation, safety and reliability.
Imported gearbox is optional to improve cutting efficiency.XY axis with precision linear guideway, and Z axis with high rigidity flat guideway, which is suitable for heavy load and heavy duty cutting.The Z-axis could be equipped with linear guideway which is suitable for high-precision machining.
Standard with Fanuc 0I MF control system. Mitsubishi, Siemens and other control systems are also available.
Product Parameters

Item			Main Parameter
CNC control			SIEMENS
Table	Worktable Size	mm	2000×6000
	Worktable Load Capacity	t/m²	15
	T-slot Specifications (width/spacing/number)		26×200×10
Travel	X axis	mm	6000
	Y axis	mm	3000
	Z axis	mm	800
	Spindle Travel(W axis)	mm	700
Headstock	Spindle Drive Mode		Gear case
	Main Motor Power	KW	30
	Spindle Speed	rpm	1-2000
	Spindle Diameter	mm	Φ130
	Spindle taper and specification		IS07:24NO50
	Pull stud		P50T-2-MAS403
	Ram Section	mm	480×480
	Spindle Torque(Max)	Nm	2590
	Spindle nose to work table surface	mm	200-3000
ballscrew	Ballscrew(X axis)	mm	100×20
	Ballscrew(Y axis)	mm	80×16
	Ballscrew(Z axis)	mm	63×12
	Ballscrew(W axis)	mm	63×12
Guide Rail	Guide Rail(X axis)		Three 65 specification heavy duty roller type linear motion rolling guide on the X-axis
	Guide Rail(Y axis)		Four 55 specification heavy duty roller type linear motion rolling guide on the Y-axis
	Guide Rail(Z axis)		Square ram hard slide rail
FEED	Milling speed X,Y,Z,W Axis	m/min	6/6/6/6
	Rapid X,Y,Z,W Axis	m/min	10/10/10/2
	Servo motor power for X,Y,Z,W	kw	9.75/ 7.17/ 7.75
	Servo motor torque×reduction gear ratio for X,Y,Z,W	Nm	50×5/48×5/48×5
	Servo motor speed for X,Y,Z,W	rpm	5000/ 3000/3000
Tool magazine(Optional)	magazine capacity	T	[40,60]
	Spindle nose		BT50
	Pull stud		P50T-2-MAS403
	Maximum diameter(full knife/empty)	mm	Φ125/Φ250
	maximum length	mm	400
	maximum weight	kg	25
Positioning accuracy(Standards:GB/T19362.1-2003)	X axis	mm	0.02
	Y axis	mm	0.02
	Z axis	mm	0.02
	W axis	mm	0.02
Repeated positioning accuracy(Standards:GB/T19362.1-2003)	X axis	mm	0.015
	Y axis	mm	0.015
	Z axis	mm	0.01
	W axis	mm	0.015
Power supply requirements			Three-phase 380V
Capacitance		KVA	145
Machine weight		T	105
Machine dimension		mm	11500×3000×5800

Features:

1. Spindle

The spindle of an advanced boring machine has the advantages of high precision, high rigidity, high efficiency, and long service life. This is attributed to the use of high-precision bearings, a reasonable structural design, high-quality materials, combined with advanced drive technology, as well as a good lubrication and sealing system, which jointly ensure the excellent performance of the spindle.

2. Optional

The optional configuration of the milling head of an advanced boring machine enables flexible combination of functions according to different machining requirements, improving machining precision, efficiency and the applicability of the machine tool, while reducing production costs.

3. Column

The column is a closed box-shaped structure with reasonable arrangement of reinforcing ribs, multi-point support, strong rigidity and good stability. Main rail of the column adopts a double-wall structure, and the inner wall of the column adopts a Union Jack shape cross rib, which has high bending and torsional strength; The whole machinehas good rigidity and meets the requirements of heavy-duty cutting.

4. Two linaer guide rails and one hardened guide rail

The X and Y axes adopt linear guide rails, which feature high-speed movement, low friction and high precision. The Z axis uses hardened guide rails, which can provide high rigidity and strong load-bearing capacity, enabling the boring machine to possess both high-speed machining performance and heavy cutting ability.

5. System

Standard with latest Fanuc control system, Siemens or Mitsubishi available as optional

Standard Configurations
Serial Number Main Components

1.	Numerical Control System
2.	Spindle Servo Motor
3.	Feed Servo Motor
4.	Ball Screws for Three Axes
5.	Spindle
6.	Tool Unclamping Cylinder
7.	Linear Rolling Guide
8.	Special Bearings for Ball Screws
9.	Spindle Bearings
10.	Speed Reducer
11.	Lubrication System
12.	Nitrogen Balancing System
13.	Main Components of Pneumatic System
14.	Main Electrical Components
15.	Three-color Light, Lighting Lamp
16.	Chip Conveyor System
17.	Precision Back-tightening Nut
18.	Coupling
19.	Timing Belt
20.	Electrical Cabinet
21.	Air Conditioner
22.	Drag Chain
23.	Transformer
24.	Stainless Steel Protective Cover for Guide Rails
25.	Outer Protective Sheet Metal Cover
