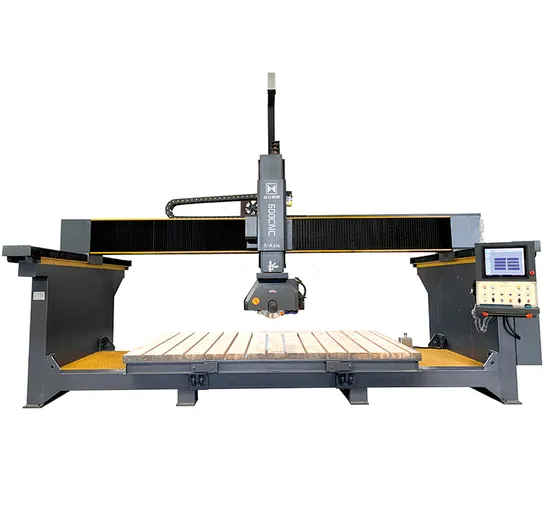

Zl Powerful CNC 5 Axis Bridge Saw Granite Cutting Machine for Countertop Camera Capture with Modern Design

Zl Powerful CNC 5 Axis Bridge Saw Granite Cutting Machine for Countertop Camera Capture with Modern Design

US$32,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZLBS-600CNC
Type
CNC Cutting Machine
Usage
Jadestone, Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Stone Industry
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
Control Center
Industry Computer with CNC
Driving Motor
Servo Motor
Railway
Linear Railway
Dimensions
L5750*W3260*H4100mm
Transport Package
Plastic Film Packaging
Specification
L5750*W3260*H4100
Trademark
ZL MACHINE
Origin
Taizhou, Zhejiang Province
HS Code
8464209000
Production Capacity
1000

Product Description

Product Parameters
Model ZLBS-600CNC/5A ZLBS-600CNC/5+1A Unit
Worktable size L3500*W2000 L3500*W2000 mm
Maximum Processing L3500*W2000*H500 L3500*W2000*H500 mm
X.Y. Z-axis Transmission X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer.
Y-axis adopts #35 Linear Guide Rail + helical rack and gear + Planetary reducer.
Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer.
X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer.
Y-axis adopts #35 Linear Guide Rail + helical rack and gear + Planetary reducer.
Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer.
C-axis Head rotate 0°-360°, with Robot Reducer Head rotate 0°-360°, with Robot Reducer
A-axis Head tilt 0°-90° with Robot Reducer Head tilt 0°-90° with Robot Reducer
Camera brand Hikvison Hikvison
Blade diameter 350-600mm 350-600mm mm
Main motor self-developed 5-axis special motor 22KW(permanet magnet motor with frequency) self-developed 5-axis special motor 22KW(permanet magnet motor with frequency)
Control center Options:
1.Self-developed CNC system for 5 Axis Bridge Saw Machine
2.ESA System from Italy
Options:
1.Self-developed CNC system for 5 Axis Bridge Saw Machine
2.ESA System from Italy
Driving motor 1.5kw Servo motor YUHAI
Or ESA
1.5kw Servo motor YUHAI
Or ESA
Main motor RPM 6000 6000 RPM
Main Spindle type Can be put a drill Can be put a drill
Electric Spindle for Milling Work (Optional) Without * Type: electric spindle
* Rotating speed: 0-24000 rpm
* Power: 5.5kw
Total power 30kw 35kw kw
worktable flip 85° 85°
Water consumption 2 2 m³/h
Total weight 6 6 t

Product Description
We supply 5-axis CNC Bridge Saws, type ZLBS-600CNC/5A 5-axis smart cutting machine for processing quartz, marble, and granite. It's high-efficiency, high-precision, easy, and simple to operate. Take a photo, put the drawing on the stone in the photo, and then start the machine, which will process itself. The main part of the type ZLBS-600CNC/5A can be put into an open-top high-cube container.
We provide OEM/ODM service.
Option: own system, or ESA hardware with Pegasus software from Italy.

1: The machine is a heavy-duty conjoined structure; it is strong, takes up less space, and is easy to install and move.

2: With an industrial computer and a 17" color touch-screen.
3: Use a camera to locate the position of the plate and display it in the cutting procedure.
4: A 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
5: The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
6: Option:The machine chassis could be hot-dip galvanized, and the worktable could be faced with plastic plate and rubber
