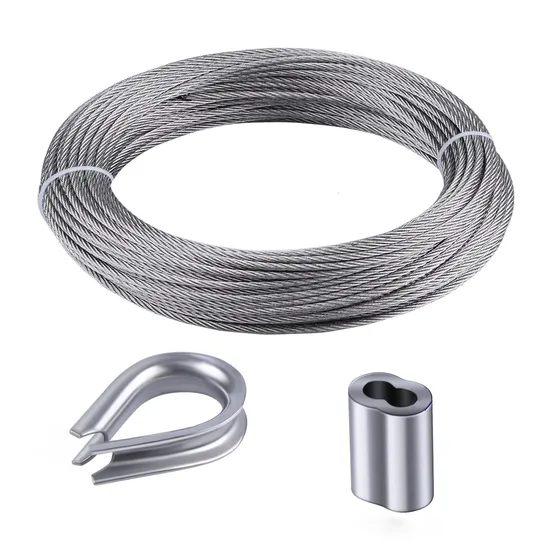

Stainless Steel Wire Rope 304 316 316L 7*7 7*19

Product Description

Product Description
Steel Wire Rope Property Sheet:

Product Name	Stainless Steel Wire Rope	Grade	SS304,SS316,SS316L
Diameter Range	0.8-25mm	Specifications	1x7,7x7,1x19,7x19
Surface	Galvanizing, cleaning and polishing	Customized	Support customization
Applications	It is widely used in high-speed rail connecting line, guardrail curtain wall, fishing, automobile brake line, clothes hanger and other fields.

Specification For Stainless Steel Wire Ropes
CONTURCTION COMPACTED STRAND 1x7
Product Code	Diameter (mm)	Min.Breaking Load (kn)			Weight Kg/100m
		1570/mm²	1770/mm²	1960/mm²
SS01(1x7)	1.00	0.860	0.973	1.080	0.50
SS12(1x7)	1.20	1.240	1.401	1.550	0.72
SS15(1x7)	1.50	1.940	2.190	2.420	1.13
SS18(1x7)	1.80	2.800	3.150	3.490	1.62
SS20(1x7)	2.00	3.450	3.890	4.310	2.00
SS22(1x7)	2.20	4.180	4.710	-	2.42
SS25(1x7)	2.50	5.390	6.080	-	3.13
SS30(1x7)	3.00	7.770	8.750	-	4.50
SS40(1x7)	4.00	13.800	-	-	8.34
SS50(1x7)	5.00	21.600	-	-	13.10
SS60(1x7)	6.00	31.100	-	-	18.90
CONTURCTION COMPACTED STRAND 1x19
Product Code	Diameter (mm)	Min.Breaking Load (kn)			Weight Kg/100m
		1570/mm²	1770/mm²	1960/mm²
SS01(1x19)	1.00	0.820	0.930	1.030	0.50
SS15(1x19)	1.50	1.850	2.090	2.320	1.13
SS20(1x19)	2.00	3.300	3.720	4.120	2.00
SS25(1x19)	2.50	5.150	5.810	-	3.13
SS30(1x19)	3.00	7.420	8.360	-	4.50
SS40(1x19)	4.00	13.190	-	-	8.00
SS50(1x19)	5.00	20.610	-	-	12.50
SS60(1x19)	6.00	29.700	-	-	18.00
SS80(1x19)	8.00	52.800	-	-	32.00
SS100(1x19)	10.00	82.400	-	-	50.00
SS120(1x19)	12.00	118.700	-	-	72.00
SS160(1x19)	16.00	211.000	-	-	128.00
SS200(1x19)	20.00	330.000	-	-	200.00
CONTURCTION COMPACTED STRAND 7x7
Product Code	Diameter (mm)	Min.Breaking Load (kn)			Weight Kg/100m
		1570/mm²	1770/mm²	1960/mm²
SS01(7x7)	1.00	0.520	0.590	0.650	0.36
SS15(7x7)	1.50	1.170	1.330	1.460	0.81
SS20(7x7)	2.00	2.080	2.350	2.600	1.44
SS25(7x7)	2.50	3.260	3.670	4.070	2.25
SS30(7x7)	3.00	4.690	5.290	5.860	3.24
SS40(7x7)	4.00	8.340	9.400	10.400	5.76
SS50(7x7)	5.00	13.030	14.700	16.300	9.00
SS60(7x7)	6.00	18.800	21.200	-	12.96
SS80(7x7)	8.00	33.400	37.600	-	23.04
SS100(7x7)	10.00	52.100	58.800	-	36.00
SS120(7x7)	12.00	75.100	84.600	-	51.84
SS160(7x7)	16.00	133.400	-	-	92.16
SS200(7x7)	20.00	210.000	-	-	144.00
CONTURCTION COMPACTED STRAND 7x19
Product Code	Diameter (mm)	Min.Breaking Load (kn)			Weight Kg/100m
		1570/mm²	1770/mm²	1960/mm²
SS15(7x19)	1.50	1.090	1.220	1.350	0.81
SS20(7x19)	2.00	1.920	2.170	2.400	1.44
SS25(7x19)	2.50	3.010	3.390	3.750	2.25
SS30(7x19)	3.00	4.340	4.890	5.420	3.24
SS40(7x19)	4.00	7.710	8.690	9.630	5.76
SS50(7x19)	5.00	12.050	13.580	15.040	9.00
SS60(7x19)	6.00	17.400	19.600	21.700	12.96
SS80(7x19)	8.00	30.800	34.800	38.500	23.04
SS100(7x19)	10.00	48.200	54.300	60.200	36.00
SS120(7x19)	12.00	69.400	78.200	-	51.84
SS160(7x19)	16.00	123.400	139.100	-	92.16
SS200(7x19)	20.00	193.000	-	-	144.00
SS220(7x19)	22.00	232.800	-	-	174.24
SS240(7x19)	24.00	277.000	-	-	207.36

Why Choose Us:

When the steel wire rope is cut off, each strand and each steel wire will not be scattered, and its own position and twist distance will still be maintained

Scientific and technological achievements, professional production lines and complete equipment ensure the smooth production process

Use professional testing equipment to strictly test the tensile force of products to ensure that products meet customer requirements

MORE PRODUCTS

Detailed Photos

COMPANY PROFILE
CERTIFICATE
With ISO9001 as the standard, the company has established a quality system and operated effectively. Stainless steel wire rope products are widely used in operation, railway, bridge, construction, decoration, high lift tower crane, crane, conveyor belt, aviation and other important places. Enterprises with its quality products, to the international market.
Packing & Delivery
Normal packaging: wooden shaft or plastic shaft shall be used and placed on the tray. If the customer has customized packaging requirements, it can be packaged according to the customer's requirements

Trade terms	FOB, EXW, CIF, DDU, DDP
Payment terms	T/T, L/C, Negotiable
MOQ	1000m
Supply capability	100000 pieces per month
Lead time	15-30 days
Shipment	Express, air, sea
Port	Shanghai, Ningbo, Shenzhen
Sample availability	Yes
Sample time	3-7 days
Packaging	Plastic shaft or wooden shaft & Pallet
