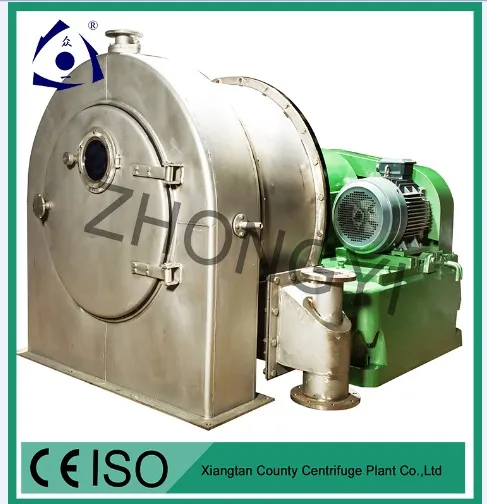

HY Series One Single Stage Piston Pusher Centrifuge
Application
The centrifuge of HY800-N type is a continuously operated and pulsated hydraulic discharge filter centrifuge, whose stages offering, separating, washing, drying, and discharging, etc., can all be carried out at full speed.
The centrifuge is suitable for separating suspensions containing coarse particles or short fibrous materials with the following characteristics:
⊙Temperature: ≤110ºC
⊙Mean granularity of solid phase: ≥0.25 mm.
⊙Content of solid phase: 50 ~ 60 %
⊙Stable and homogeneous feed.
The machine of this type advantages large throughput, lower power consumption, little damage to solid particles, small floor space. Althea sections in contact with materials are made of stainless steel of SS 304 , SS316L or other anti-corrosive material, which makes the machine suitable for handling materials such as ammonium bicarbonate, ammonium soleplate, chromic alum,urea,nitro cotton and celery salt etc. however, inapplicable to materials containing chlorine. Therefore, the centrifuge finds its wide application in industries such as fertilizer, chemical, salt-made, ands on.
Principal technical parameters
1. Inner diameter of basket: 800 mm
2. Filter zone length of basket: 400 mm
3. Screen mesh opening: 0.30 ~ 0.35 mm
4. Stroke length of push: 40 mm
5. Push reciprocations per minute: 40 times
6. Max. charge: 70 kg
7. Operating pressure of hydraulic system: 2.5 ~ 3.0 Mpa
8. Basket speed: 700/800/900 rmin
9. Separation factor: 220/287/363
10.Primary motor:
Type: YB3-180M-4-B3(60Hz)380V or Customized
Power: 18.5 KW
Speed: 1764 r/min
11.Oil pump motor:
Type: YB3-180L-8-B5
Power: 11 KW
Speed: 870 r/min
12.Oil pump:
Type YB100/100
Rotate speed 970 r/min
Press 6.3 MPa
Flow rate 200 L/min
13.Overall dimensions(L*W*H): 2270*1780*1400 mm3
14.Total weight: 3487 kg
15.Production capacity: about 5 -8 ton/h
Note:
The quantity of production capacity is obtained from the suspension of ammonium bicarbonate with the following characteristics:
⊙Volumetric content of solid phase: ≥60 % (by volume)
⊙Moisture content of filter residue: ≤3.5 %(by weight)
Principles of operation(as shown in figure 1)
The suspension is fed from the feed pipe<1>, then it flows into the conical distributing hopper< 3> mounted on the push pan. Under centrifugal force field, and through the clearances between the push pan and distributing hopper, the suspension is throw onto the screen where liquid phase can be discharged out of basket through the screen mesh opening and pores on the basket<4>, then be collected in the mother-collector; while solid phase can build up filter cake over the screen. because of reciprocation of push pan<6>, the cake can be pushed forward along basket both axially and continuously, finally, be pushed out of basket into the outlet of front casing<2>.
The reciprocation of push pan can be achieved by manipulating the automatic hydraulic mechanism. Under pressure of 2.5 ~ 3.0 Map, the sliding vane pump pumps oil from its tank and strainer to either of two sides of complex oil cylinder: one side for sucking oil, and the other for returning the unloaded oil to the tank through the inner cavity of belt pulley.
The pressurized oil pushes the piston, which will peruses the changeover rod to change direction so that the piston can move left and right. Thus, the push pan connected with piston will reciprocate, and the times of reciprocation can be adjusted by the complex throttle valve<16>
Structure
The primary parts of the centrifuge are:
Rotating body Complex oil cylinder Clutch
Machine casing Complex throttle valve Machine base
Lists for Spare Parts

Serial number	Name	Material
HY80.10.18-5	Packing ring()	oil resistant rubber
HY80.10.18-6	Packing ring(center)	oil resistant rubber
HY80.10.18-7	Packing ring (front)	oil resistant rubber
HY80.10.18-20	Compression spring	intermediate spring wire
HY80.10.18-24	Compression spring	intermediate spring wire
HGB4-333-66	O shape seal packing collar 60×4	oil resistant rubber I - 2
GB1235-76	O shape seal packing collar 50×3.5	oil resistant rubber I - 2
HY80.12-12	Compression spring	intermediate spring wire
GB1235-76	O shape seal packing collar 45×3.5
HY80.15-9	Packing	oil resistant rubber I - 2
