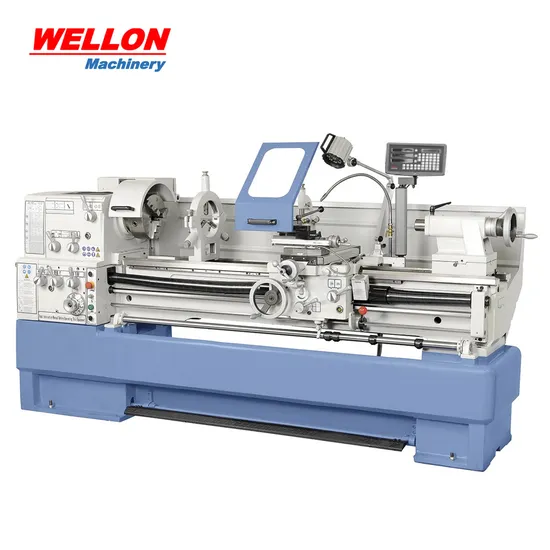

Universal Lathe Machine (Variable Speed Universal Turning Lathe Machine C6241V / C6246V)
| US$8,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C6241V / C6246V
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle Bore
58mm
Distance Between Centers
1000/1500/2000 mm
Width of Bed
300mm
Swing Over Bed
410mm
Transport Package
Ply Woodcase
Specification
CE ISO9001 ROHS
Trademark
WELLON
Origin
Tengzhou, China
HS Code
8458190000
Production Capacity
100sets/Month
Product Description
Products Description:Performence Features:
Spindle speed variable changed, with High Low speed steps,with speed display
The guide way and all gears in the headstock are hardened and precision ground.
The spindle system is high rigidity and accuracy.
The machines have powerful headstock gear train, high rotating accuracy and smooth running with low noise.
An overload safety device is provided on the apron.
Pedal or electromagnetic braking device.
Tolerance test certificate, test flow chart included
Technical parameter:
| Specification | C6241V | C6246V |
| Swing over bed | 410mm | 460mm |
| Swing over cross slide | 220mm | 270mm |
| Swing in gap | 640mm | 690mm |
| Distance between centers | 1000/1500/2000 mm | |
| Valid length of gap | 165mm | |
| Width of bed | 300mm | |
| Spindle nose | D1-6 | |
| Spindle bore | 58mm | |
| Taper of spindle bore | No.6 Morse | |
| Range of spindle speed | Variable, 30-2000rpm | |
| Max.travel of top slide | 128mm | |
| Max.travel of cross slide | 285mm | |
| Max.section of tool | 25x25mm | |
| Pitch thread of leadscrew | 6mm or 4T.P.I. | |
| Longitudinal feeds range | 42 kinds, 0.031-1.7mm/rev | |
| Cross feeds range | 42 kinds, 0.014-0.784mm/rev | |
| Metric threads range | 41 kinds, 0.1-14mm | |
| Inch threads range | 60 kinds, 2-112T.P.I. | |
| Diametrical pitches range | 50 kinds, 4-112DP | |
| Module pitches range | 34 kinds, 0.1-7MP | |
| Dia. of tailstock sleeve | 60mm | |
| Travel of tailstock sleeve | 128mm | |
| Taper of tailstock sleeve | No.4 Morse | |
| Power of main motor | 5.5kW(7.5HP) 3PH | |
| Power of coolant pump | 0.1kW(1/8HP) 3PH | |
With standard accessories:
3 Jaw chuck
4 Jaw chuck
Steady rest
Follow rest
Face plate
Drive plate
Dead centers
Reduction sleeve
Change gears
Work lamp
Coolant system
Full splash guard
Oil tray
Foot brake
Oil gun
Some tools
Optional accessories:
Quick change tool post
Digital readout
Chuck protection
Tool post protection
Live center
