China High Quality Popular Cheap Crawler Excavator

Product Description

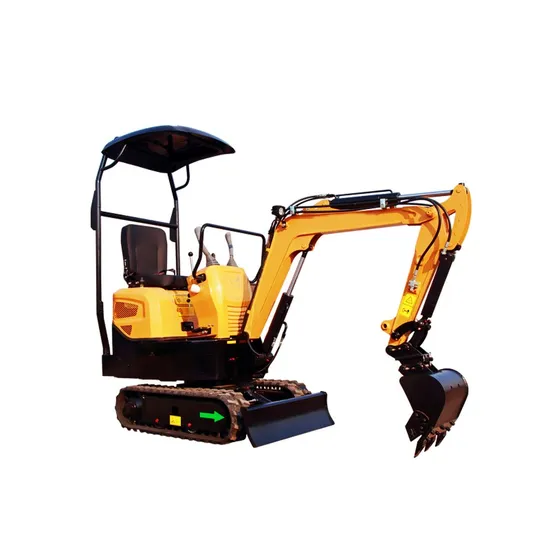

HCE18 hydraulic mini crawler excavator Excavator use bucket excavated material above or below the surface of the bearing machines and transport vehicles loaded or unloaded to the stockyard of earthmoving machinery.
It is widely used in buildings and plant foundation excavation, digging soil material, overburden stripping quarry, quarries, tunnels, underground plant and stockyard in the loading operation, channel excavation, dredging canals and waterways, replace after working device can be pouring, lifting, installation, piling, rammed earth and other operations.

ENGINE
Model	YANMAR 3TNV82A-SNN
Cylinders	3
Bore/Stroke	82×84mm
Displacement	1.331L
Fuel injection	direct
Fuel injection pump	Mechanical
Fuel	Diesel
Fuel filter	Full flow
Cooling	water-cooling
Horsepower Net	15.5kw @2200rpm
Maximum torque Net	87N.m @1320rpm
BOOM/ARM
BOOM
Swing	60° left / 45° right
Length	1805mm
Boom weight	69kg
Arm
Length	1150mm
Arm weight	35kg
UNDERCARRIAGE
Number of rollers
Top, each track	1
Bottom, each track	3
Gradability	58%(30°)
HYDRAULICS
Pumps(2)	Gear pump
Capacity-Maximun	2×19.8L/min
System relief pressure-standard	18MPa
Pilot control hydraulic system-pump(1)	Gear pump
Maximun capacity	6.6L/min
Relief pressure	3MPa
Control valves-
8 function multiple control vavle
Pump#1 for right travel and swing and boom swing and arm
Pump#2 for left travel and boom and bucket and dozzer
Pump#3 for pilot valve
Swing-
motor(1)	Fixe displacement axial piston design
Speed	0-12rpm
Brake	Hydraulically released
Tail swing radius	1130mm
Tail swing overhang
Travel-
motor(2)	Two speed axial piston design
Final drive	Planetary gear reduction
Travel speed -	Forward/reverse
Low	2.0km/h
High	4.5km/h
HUDRAULIC CYLINDERS
Boom cylinder(1)
Bore diameter	63mm
Rod diameter	35mm
Stroke	410mm
Arm cylinder(1)
Bore diameter	63mm
Rod diameter	35mm
Stroke	430mm
Bucket cylinder(1)
Bore diameter	55mm
Rod diameter	32mm
Stroke	300mm
ELECTRICAL
Voltage	12 volts
Alternator	30 amp
Batteries(1) 12V	Heavy-duty
SERVICE CAPACITIES
Hydraulic tank
Refill capacity	25L
Total system	32L
Engine
w/filler change	5L
Fuel	18L
Radiator	3.5L
OPERATING WEIGHT	With 75kg operator,44kg bucket,
full fuel and standard equipment	1830kg
Ground pressure	36kpa

DIMENSIONS
A. Overall height	2300mm
B. Overall length	3800mm
C. width of upperstructure	1050mm
D. Track overall length	1460mm
E. Track overall width shoes	1050mm
F. Track shoe width	230mm
G. Center to center(inler to sprocket)	1090mm
H. Upperstructure ground clearance	465mm
J. Minimum ground clearance	235mm
K. Tail swing radius	1130mm
L. Backfill blade height	250mm
Working weight	1830kg
Ground pressure	36kpa
Tail swing overhang

PERFORMANCE SPECS
A. Maximum dig radius	3715mm
B. Dig radius at groundline	3580mm
C. Maximum dig depth	2065mm
D. Dump height	2230mm
E. Overall reach height	2980mm
F. Bucket rotation	165°
G. Vertical straight wall dig depth	1500mm
Arm diging force	10kN
Buckte digging force	14kN
Bucket capacity	0.06m³
