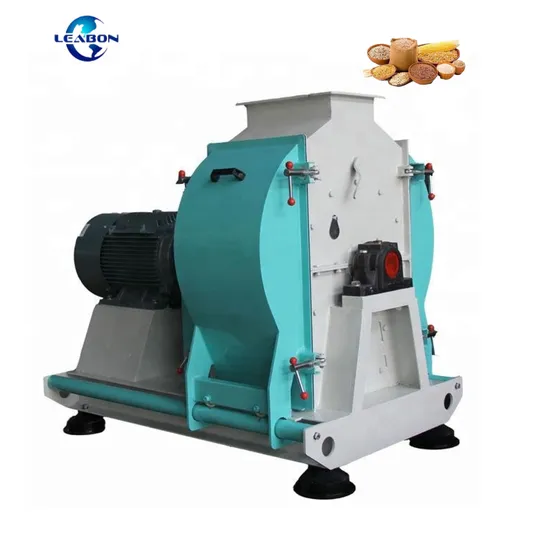

Farm Used Corn Sorghum Hammer Mill Crusher 2 Ton/H Hammer Mill for Maize

Product Description

Farm used Corn sorghum hammer mill crusher 2 ton/h hammer mill for maize
Description
SFSP series crusher/hammer mill is a new type of processing machine,which uses water crushing chamber design, so it is named water drop crusher/hammer mill. Feature

1.It have high transmitting efficienty,working smoothly,solidity and durability.
2.Use the drop-pulverizing room to destory the circulation layer of feed, so they can improve the grinding efficiency.
3.Have the features of bidirectional materials purchased ahd turning around using the hammer pieces,so they are cost-effictive and long lifetime.

4.It is widely used in swine farm, wood factory, etc.
5.It is equipped with high carbon steel blade.
3.The raw materials can be crushed into straw particles, whose diameter is 3-5mm.
6.The durable crusher works with high efficiency and gains more good reputation from European users.

7. Low and big feed opening make the production line easy to arrange and increase the size of feeding material.
8. Hydraulic start-up which is convenient for maintenance and replacement of wear-parts.
9. New anti-abrasive material which prolong service life of impact hammer, impact plate and liner.


Product Parameters
SFSP112 Series

Model name		88-I		88-II		88-III
Rotor diameter (mm)		1120		1120		1120
Spindle speed (rpm)		2987		2987		2987
Hammer's linear speed(m/s)		86.5		86.5		86.5
Width of grinding chamber(mm)		290		380		500
Hammer Q'ty(pcs)		54		64		90
Normal air volume (m/min)	General crushing	42	46	55	61	73	80
	Fine crushing	55	60	72	78	95	102

SFSP56 Series

Model	SFSP 56X30	SFSP 56X36	SFSP 56X40
Rotor diameter(mm)	560	560	560
Main shaft rotation speed (rpm)	2950	2950	2950
Hammer's linear speed(m/s)	86	86	86
Crushing chamber width(mm)	300	360	400
Hammer Q'ty(pcs)	16	20	24
Power (kw)	11	22	37
Capacity (t/h)	1-2	3-4	5-6

SFSP60 Series

Model name		SFSP60 x 30		SFSP60 x 38		SFSP60 x 45		SFSP60 x 60		SFSP60 x 75
Rotor diameter (mm)		600		600		600		600		600
Spindle speed (rpm)		2980		2980		2980		2980		2980
Hammer's linear speed (m/s)		94		94		94		94		94
Width of grinding chamber (mm)		300		380		450		600		750
Hammer Q'ty(pcs)	General crushing	24		32		36		48		60
	Fine crushing	40		56		64		88		120
Power (kw)		18.5	22	22	37	45	55	55	75	75	90
Capacity (t/h)		3.5	3-5	3-5	5-7	6-9	7-10	7-11	9-12	10-13	10-14
Dimension (m)		1780x840x1200		1830x840x1200		1930x840x1200		1980x840x1200		2080x840x1200

Related Production
9FQ 360-600 series hammer mills are the most ideal milling equipment of all kinds of wood pieces, straw, grass, stalk, corn stalk, peanut shell, wheat stalk etc. And our 9FQ 600-1200 is good at crushing woods, tree branches, waste cardboard, bamboo, wood scrap,.stalk, wood fuel, cotton stalk, and so on.
Product parameter

Model	Motor Power(kw)	Capacity (kg/h)	Dimension (mm)	Weight (kg)
9FQ360-20	5.5	300-350	900*500*800	260
9FQ400-28	7.5	400-500	1100*550*850	350
9FQ500-28	11	600-800	1250*650*1000	450
9FQ500-40	22	900-1000	1400*780*1250	750
9FQ500-50	30/37	1500-2000	1600*850*1350	900
9FQ500-60	37/45	2000-3000	1750*900*1550	1300
9FQ600-80	55	3000-4000	1850*1450*1600	1850

Raw Materials&Final Product
Whole production line
