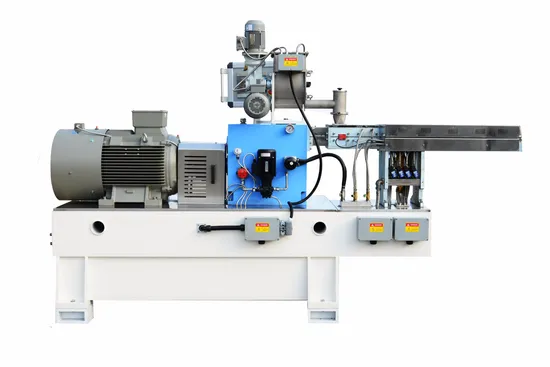

European Standard Powder Coating Double Screw Extruder

Product Description

European Standard Powder Coating Extruding Machine with CE
Company Profile:
We exported the first powder coating production line to United Kingdom in 1989. Since then, our equipments opened the international market. We cooperate with Italy SBS Company from 2000, the quality of our machines are in accord with European standard. We achieved perfect image, and trust from foreign customers because of our excellent quality of equipments and superior customer services.
We are not only provide installation services to customer, but also provide our customer good formulation to help customer produce best quality powder coating.
Our Exhibition Show:
Factory View:
Machine Technical Characteristic:
1.The changing during moving gap is zero
2. High disperse efficiency
3. Self-cleaning system
4. Double temperature PID control, control accuracy ±2°C
5. Barrel equipped with soft water recycle automatic cooling system
6. Low noise and high secure gear box system
7. Equipped with permanent magnetic iron remover
8. Low material consumption, electricity and material rate kg/h.kw is higher
Main Technical Parameter:

Model	SFJ-46A or B	SFJ-55A or G	SFJ-64A or G	SFJ-80G
Screw diameter(mm)	46	55	64	80
Length-diameter(L/D)	14:1	16:1	15:1	15:1
Capacity(Kg/H)	100~180 or 100~280	300~400	400~500	600~800
Screw motor power(kw)	15, 6 or 22, 4	30	45	55
Feeding motor power(kw)	0.37	0.37	0.55	0.55
Heating power(kw)	0.75*4	0.75*6	1*5+0.75*1	2*5+1.5*1
Mixing motor power(kw)	-	0.37	0.37	0.37
Screw speed(rpm)	0~500/0~800	0~500	0~500	0~500
Temperature control system	±2°C Double temperature PID auto-control. Accuracy ±2
Speed adjust system	Adjustable speed by means of frequency inverter
Feeding system	Variable by means of frequency inverter
Cooling system	Water cooled
Equipped with	Screw feeding
	Permanent strong-magnetic device
Overall dimension(mm)		2650*900*1900	2900*900*2000	3600*950*2260

Our Certificate:
Our Advantage & Service:
-Technical Support Online Service Provided
According to customer's requirement, we provide layout (plant designer), excellent mechanical engineer, excellent electrician, etc.
-On-site Training Service Provided
In customer factory, we provide all kinds of training, including installation, commissioning
-Long-term Maintenance Provided
In the area of maintenance, we offer needs-oriented and standardized maintenance packages, such as the overhaul of components, gearboxes, in order to guarantee the safe and economic operation of plant and machinery.
-Spare Parts Replacement and Repair Service Provided
Providing spare parts for all kinds of powder coating processing equipment in long-term. And can provide tailored made spare parts according to customers' requirements. Ensure advanced craft, good material and high precision.
-Formulation Provided (our advantage)
Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time. And have very good experience for the formulation to support customer to make different effect powder coatings.
We sincerely welcome customers from all over the world come to visit and negotiation with us!
