Rotary Lobe Self Priming Sanitary Brew Beer Dairy Milk Centrifugal Pump
Basic Info.
Model NO.
YUY-L
Max.Head
80-110m
Max.Capacity
50-100 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
Middle Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Since Irrigation Centrifugal Pumps
Impeller
Open
Usage
Pump, Pumps
Motor
ABB Motor
Polished
Available
Vlotage
380V 50Hz
VFD
Available
Transport Package
Wooden Case
Specification
GMP, CE
Trademark
YUY
Origin
China
HS Code
8413709990
Production Capacity
5000
Product Description

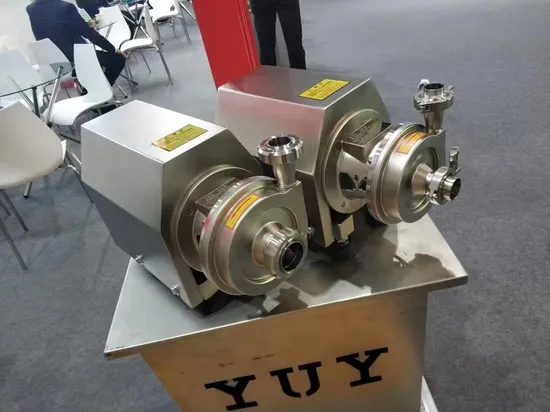

Sanitary (hygienic)centrifugal pumpProduct Parameters
Technical Parameter
| Specification: | 1T-500T, 6m-60m, 0.55KW-75KW |
| Material: | SS304 SS316L (The pump body, pump cover and impeller) |
| Impeller: | 1.Open type 2.Close type, 3.Semi-open type |
| Temperature range: | -10ºC~140ºC |
| Standards: | DIN, SMS |
| Capacity | 1.5~200ton/hour |
| Mechanical seal | Plumbago&silicon carbide |
| Connection methods | Weld, Clamp, Union and Flange |
| Voltage | 220V, 380V, 440V, 480V, etc |
Company Profile
Company:
Zhejiang yuanya pump Co., Ltd (YUY), located in Wenzhou, is one of the few domestic manufacturers of high precision fluid equipment. Our products have Sanitary Pumps, Sanitary Valves, Sanitary Pipe fittings etc. In order to make our products can be applied in the fluid systems with strict sanitary and sterilizing requirement, we do many strict tests for our products to make sure the quality of pumps, such as the performance curve test of pumps, frequency curve, the smooth and clean test, pressure test and so on.
All the commodities are made in accordance with the standards of ISO, IDF, DIN and 3A. The technology is comparable to the international level in the same field and the quality complies with the requirements of GMP.
In addition, we have a professional R&D department that can design new products based on the demands of customers.
Workshop & warehouse:
Certification:
