HDPE LLDPE MDPE PE Disc Plastic Pulverizer Machine for Sale

Product Description

HDPE LLDPE MDPE PE Disc Plastic pulverizer Machine for Sale Product Description
Description pvc pp pe eva plastic miller :
This PVC Plastic PE mill is chiefly designed to grind PVC and PE. The pulverizer uses turbo type blade. The static blade and rotary blade could be adjusted, thus you can get different size of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC.
The output of our pulverizer can reach 100-900kg/h (15-100mesh).
The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
Technical Features:
1. Pulverizer can easy to grind all kinds Hard & Soft PVC into powder.
2. The dust collector is added to effectively reduce dust pollution.
3. The discharging of the main fan reduces labors intensity of operating workers.
4. The door cover of the host can be opened for convenience of maintenance and replacement of cutters.
5. The mill use the water and wind double cooling system ,Prevent bearing and other parts from overheating.
6. The powder mesh is adjustable(15-100mesh).
7. Easy installation and maintenance, just open the door to clean up.
8. Using Well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
Product Parameters
Parameters for miller machine

Model	SMW-400	SMW-500	SMW-520	SMW-550	SMW-600
Milling chamber DIA:	Φ400	Φ500	Φ520	Φ550	Φ600
Rotor QTY	3	3	3	3	3
Main Speed RPM.	3800	3900	3900	3900	3900
Main motor power:	30KW	30KW	37KW	37KW	45KW
Close blower power	0.75kw	0.75KW	0.75KW	0.75KW	0.75KW
Blower power	2.2kw	2.2KW	3KW	3KW	4KW
Final powder size	12-120 micron	12-120 micron	12-120 micron	12-120 micron	12-120 micron
capacity	50-120kg/hr	150-200kg/hr	180-250kg/hr	200-300kg/hr	300-550kg/hr
Round Vibrating sieve	without	Customized	Customized	Customized	Customized
Dust collecting system	without	Customized	Customized	Customized	Customized
Cooling system	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling
Machine weight	850kgs	1200kgs	1250kgs	1300kgs	1550kgs
Dimension	2200*800*2100 (mm)	5900*1450*2900 (mm)

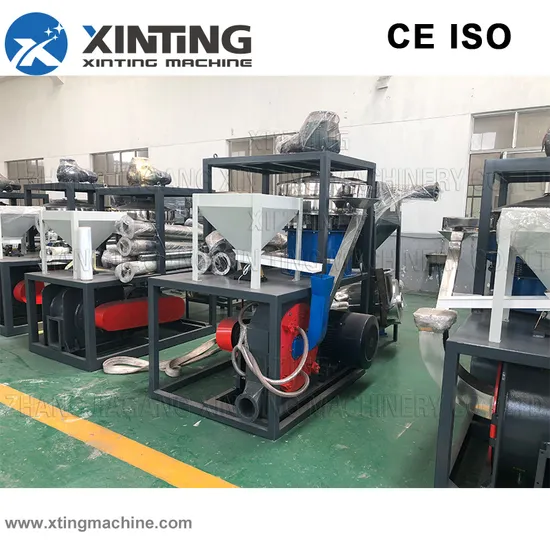

Detailed Photos
