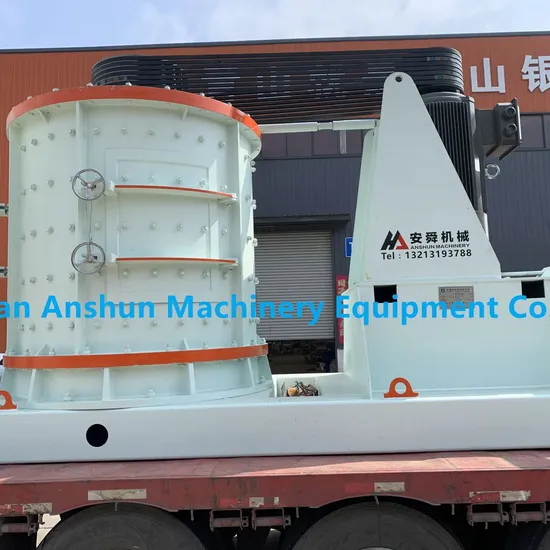

Vertical Hammer Crusher Combination Crusher for Sand Making Gold Ore Crushing

Product Description

Product Description
The vertical compound crusher is a new fine crushing and coarse grinding product developed by integrating similar crusher technologies at home and abroad and optimizing the main technical parameters. It is mainly used for medium-sized cement raw materials and clinker, as well as for technical transformation or new construction of cement plants. The cement production line provides ideal fine-crushing equipment. It is also suitable for crushing iron ore, sandstone, gypsum, blast furnace slag, coal gangue, lump coal and other medium-hard ores. It has the characteristics of a large crushing ratio, low energy consumption, stable operation, simple structure, easy operation and maintenance.

Model	PFL-800	PFL-1000	PFL-1250	PFL-1500	PFL-1750
Motor diameter (mm)	650	800	1000	1250	1560
Barrel height (mm)	800	850	850	1000	1410
Shaft speed (r/min)	1350	970	740	650	600
Input size (mm)	50	70	100	100	100
Output size (mm)	0-5
Capacity (t/h)	5-15	10-30	20-60	30-80	40-100
Motor Power (kw)	30	55	75	110	132
Rotor speed (r/min)	1440	1440	750	750	750
Weight (t)	2.3	4.5	9.73	18.1	26.61
Dimension (m)	2.2*0.86*1.98	2.7*1.16*2	2.8*1.4*2.73	3.1*1.9*2.3	3.35*2.1*2.8

Performance Features
Small footprint: The vertical compound crusher adopts a vertical structure. Compared with other crushing equipment, it occupies a smaller area and is more suitable for smaller work sites.Low energy consumption: This equipment adopts advanced power configuration and crushing technology. Compared with other crushing equipment, it consumes less energy and is more economical.Low noise: The vertical compound crusher adopts precision manufacturing technology and noise-absorbing materials, which can significantly reduce the noise of the equipment and improve the comfort of the working environment.Uniform particle size: This equipment adopts multi-stage crushing and multi-stage screening technology to obtain finished materials with relatively uniform particle size distribution.Wide scope of application: Vertical compound crushers are widely used for crushing and shaping materials in mining, metallurgy, construction, the chemical industry, cement, and other industries.
Working Principle
The stone falls vertically into the machine body from the upper part of the vertical shaft compound crusher and falls onto the equipment's throwing plate. Under centrifugal force, the material is thrown to the inner wall of the cylinder and violently collides with the counterattack plate installed on the inner wall. Violent impact also occurs, and the material is broken or cracked. After the material enters the conical rotor cavity, it is broken by stamping, extrusion, etc., during the falling process. The material is further broken into small particles, and the qualified finished product is discharged from the discharge port.
Product Application
Vertical compound crushers are widely used in building materials, the chemical industry, metallurgy, electricity, coal, mining and other industrial sectors.
