Three Colors Handheld Inkjet Printer for Industrial Products

Product Description

Mini Printer touch screen editing for regular concave and convex arcs surface
Small figure/Intelligent touch-screen/High definition printing
Small size but Super function
Easy to print on curved/irregular/small space Can be used in cartons, plastic bags, steel tubes, cylinders, bottle caps, Bottle body
Applicable to a wide range of materials
for various industries:Suitable for industrial, commercial and other fields clear printing , fast drying
smaller than a hand:
Mini figure, compact size, using the new technology of jet coding Easy to carry and operate
600Dpi HD Nozzle:
Printing clear, support fast printing, efficient work Coding height is adjustable from 2 to 12.7mm
Other mini printer:
Other printers need to be connected by Wife and use mobile APP to edit the content ,troublesome operation and inefficient work
Our mini printer:
Our printers come with touch screens Editing can be done directly on the machine simple operation,less labor and time, improve efficiency
If you have any questions, please contact us!!
3.0A output charging saves time:
Using high-end current chip, 3.0A high-speed fast charging Usb-mini charging, fast charging in about 2 hours
Instructions for use:
Note: Please read it carefully and follow the instructions No illegal operation
power on: press the print switch for 10s,
Print: After starting, the nozzle is aligned with the printing position, the main wheel under the nozzle against the printing surface, click the print switch Then slide from left to right,Make the main wheel rotational print, then two dropsvoice prompt after printing.
Power off: press the print switch for 4s, The light turns off after power off wit beep prompt

SPECIFICATIONS OF mini printer
Brand Name	Faith (OEM)
Language	Chinese,English (other languages can be customized)
Dimension	27 (L)*25(W)*10 (H) cm
Screen size	3.5 inch
Data Editing	Bluetooth ,USB
Machine weight	0.24kg
Effective print width	60mm
Effective printing height	12.7mm
Speed of printing	120pieces/min
Resolution	600 DPI
Minimum characters	0.8mm (English numerals, Chinese 2 mm or more)
Sprinkler expansion	+3mm
The number of files stored	1.Ordinary documents: 100+ 2.Number of segments: 1-15
Free standard accessories	Black cartridge,USB data line,charger,touchscreen pen
Basic function	Text, graphics, production date, valid date, two-dimensional code, bar code, serial number
Font	default song style, dot matrix, and dot matrix font generation function, self-adjustable point radius, pitch, slope, etc.
Automatic Spray Printing	Production Date, Valid Date, Sequence Number, Count, Batch Number
Ink color	Black, White, Red, Blue ,green and Yellow
Ink capacity	45ml

Diversified coding:Time variable, count variable, QR code, bar code, graphic LOGO
Automatic 1-9 counting bar code
Simple installation of cartridges:
1-Fold the jacket up
2-Insert cartridge straight into the machine with the circuit board side
3-operate after inserting cartridge the same method installation and uninstallation
Pursuit of details and quality:Keep improving, strictly control every detail
Touch screen:It comes with a touch screen Easier to edit
one touch print:the edited content can be printed after pressed the start button Fast and easy.

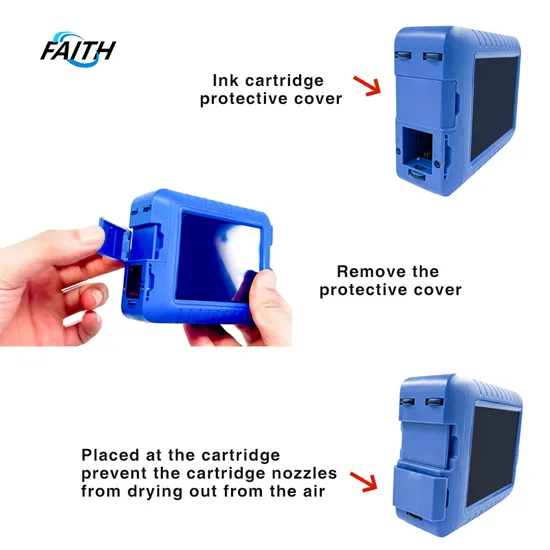

Cartridge protection cover:With the protection cover, Effectively prevent ink cartridges from being dried
Type-C charging port:Fast charging, save time
synchronous wheel:for accurate coding Prevents jitter from causing coding failure.
Quick dry ink cartridges:With quick dry ink cartridge, clear printing
Packing list:machine,Ink cartridge, data cable, charger, touch screen pen
