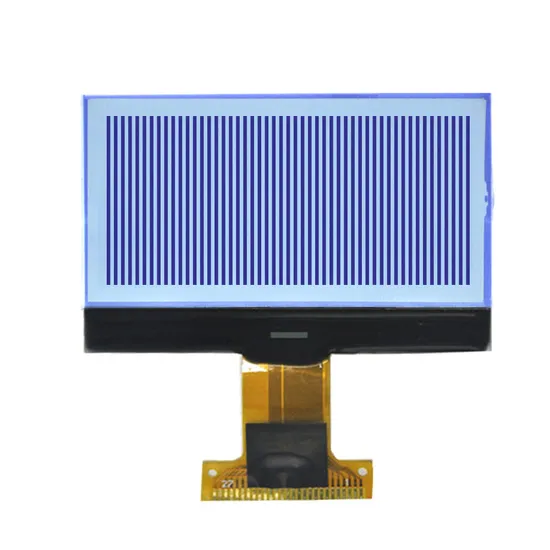

128X64 Graphic Stn Transflective Mono LCD Screen Cog LCD Display Module

Product Description

128x64 Graphic STN Transflective Mono LCD Screen COG LCD Display Module Established in 2005, Shenzhen Future Eletronics Technology Co., Ltd. , moved to Yongzhou Hunan In 2007, and established Hunan Future Electronics Technology Co., Ltd. Our Factory specializing in the research and development, design, production and sales of LCD display , LCM (including color TFT module)The current company's products cover LCD, COB, COG, TFT and other LCMs such as TN, HTN, Stn, FSTN, DFSTN, and VA, and various electronic products such as TP, OLED, and other electronic products.We commit to becoming a global mainstream enterprise in the field of display , providing standards and customized LCD display overall solutions.

Module Size	59.80(W) ×49.40(H) ×2.800(D) mm	Operating Temperature	-20ºC ~ +70ºC
Display View Area	51.58(W) x34.38(H) mm	Storage Temperature	-30ºC ~ +80ºC
LCD Type	FSTN/POSITIVE/TRANSFLECTIVE	Resolution	240*160 Dots
View Angle	12 O'clock	Drive Method	1/160Duty,1/10Bias
Driver IC	UC1698U	OPERATING VOLTAGE	VDD=3.3V,VLCD=13.5V
Backlight	Custom	Connector	FOG
DC to DC circuit	Build-In	RoHS Compliant	yes

Applications
We can provide custom display solutions worldwide across various industries including,medical industry,communications industry,industrial equiment ,appliance industry,communication hand-held device,meters measuring devices,automotive products.

More Products
Custom all kinds of LCD and LCM, TN, HTN, STN, FSTN, VATN, COB, COG Display and Backlights etc.
Factory Price →Stable High Quality →Controllable Lead Time
More hot custom LCD TN HTN STN FSTN VA VATN DFSTN BTN ,and we could customize any lcd according to your requirements .
Factory possesses various full-automatic production lines,Our team of highly qualified electronic engineers provides expert technical support,all products are 100% inspected before shipment.

Company Profile
Having 17 years manufaturing and sales experience of LCD/LCM and TFT Display,Custom sevice and good after sale support, We are looking forwards to estabilshing the win-win cooperation relationship with you.
Certifications
We have a complete quality management system and have passed ISO9001:2015, SGS,TUV,BV, RoHS, and other certifications.
Our Customers
We continuously develops overseas markets such as the United States, Europe, Japan and South Korea on the premise of the absolute advantage of domestic sales, Products are sold all over the country and Europe, the United States, Asia and other countries and regions.
Packaging & Shipping
We can provide custom display solutions worldwide across various industries including,medical industry,communications industry,industrial equiment ,appliance industry,communication hand-held device,meters measuring devices,automotive products.
