120t/H Hot Engineering Machine Asphalt Mixing Plant / Asphalt Plant for Road Construction

120t/H Hot Engineering Machine Asphalt Mixing Plant / Asphalt Plant for Road Construction

US$85,000.00-120,000.00 1 Piece (MOQ)

Basic Info.

Type
Concrete Mixing Plant
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Condition
New
Model
Zap-M160
Rated Output(T/H)
160
Oil Consumption(Kg/T)
≤ 7
Total Power(Kw)
50
Amountofaxles
2
Volume of Cold Feed Bins
4.5m2
Size Ofdrum(Diameterxlength)
Dia. 21.2mx3.8m
Driving Power of Drum (Kw)
11
Filter Area
115m2
Power of Induced Draft Fan(Kw)
11
UCT Silo (M3)
1
Operation Methods
Manual/Automatic
Type of Mixing
Continuous Type
Bitumen Heating Way
Eleetrical Heating.Thermal Conduetin Oil Heating.
Measurment of Bitumen
Flow Measurement
Specification
1550x310x448
Trademark
Jiawei
HS Code
84743200
Production Capacity
1000 Unit/ Per Month

Product Description

Product Description
160T/H Hot engineering machine Asphalt Mixing Plant / Asphalt Plant for Road Construction
SUMMARY

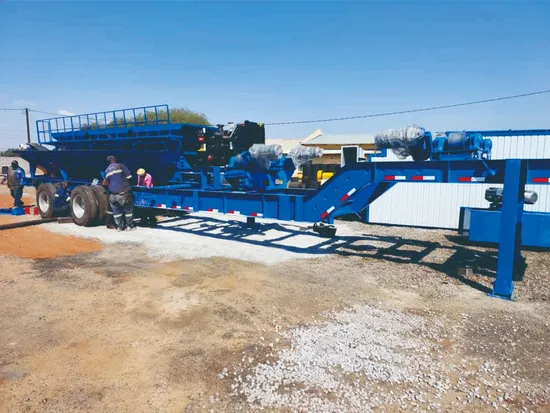

ZOOMLINE ZAP-ME series super mobile batch mix asphalt plant with semi-trailerdesign,fast relocation and transfer, high integration.
FEATURES
Fast relocation and transfer:
No secondary assembly is required at the construction site.All cables are installed and debugged before leaving the factory, and only cableconnections between the frames are needed during each transition.-High integration: Cold aggregate, drying, screening, measuring, mixing, and all othermain equipment can be integrated on one chassis.Semi-trailer design, standard tractor towing: Suitable for international standard 50# and90# trailer couplings. lt meets various traction interface requirements such as 4x4 and 6x4.The trailer design meets general safety requirements for vehicles, including main andpassive safety measures such as brakes and a full vehicle eleetrical system, It complieswith requirements for driving on general highways and expressways.-Multiple configuration combinations are available to meet different construction needs.The number ofaggregate silos, dust removal methods, fuel types, etc.., can be selected andcustomized.
.No foundation design required: Suitable for frequent relocation, reducing equipmentfoundation construction and lowering operating costs, The Mixing Section & Hot Stone..Elevator and mixing section can be raised into their operating position within minutesusing a hydraulic system,eliminating the need for cranes.
