CE Atex Certified IP66 4 Gas Meter Portable Multi-Gas Detector Lel, Co, H2s, O2

Product Description

CE ATEX certified IP66 4 Gas Meter Portable Multi-Gas Detector Lel, Co, H2s, O2 Introduction

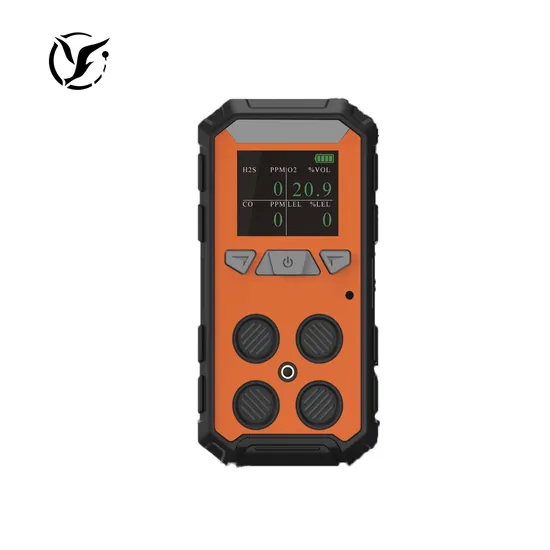

H2000 portable gas detector is typical 4 gas detector for LEL, O2, H2S, CO, and it supports the continuous detection of other gases with up to 4 gases maximum, and the gas sensor can be flexibly selected according to the field needs. Based on advanced sensor technology and IP66, it makes you more confident in harsh environments. You can check the alarm record on the detector and it supports USB data upload with latest type-C technology.
Features Color display screen, support alarm record query PC+ABS housing, excellent anti-drop performance Sound, light, vibration and Display alarm, effective alert. Gas type can be combined according to field requirements, supporting up to 4 gases Compatible with sampling pump for confined space usage IP66 Ingress protection, dustproof and waterproof
Specifications

Description	H2000
Function
gas detected	CH4,O2,CO,toxic gas
measure range	see QUICK-SELECTION-TABLE
response time*	T90≤30/60/180S
accuracy*	≤±5%FS
repeatability*	≤2%FS
sampling method	diffusion
Electric
battery	rechargeable Li-battery 1800mAh,nominal voltage 3.7V
continuous operation	≥9h
charging time	4-6h
Alarm
alarm method	sound,LED light,vibration
sound intensity	≥90dB
Display and Operation
display	TFT Color display screen
button	3(UP,DOWN,ENTER)
Environment
ingress protection	IP66
operating temperature*	-20ºC~60ºC
operating humidity	10~95%RH non-condensing
operating pressure	80-120kPa
Structure
body material	PC+ABS
weight	200g
dimensions	66X127X46mm
Certificates
EX	Exdib II CT4 Gb

Note:* refers to there's some difference vary from different gas, please contact the manufacturer for details.
QUICK SELECTION TABLE -- GAS DETECTED

NO	Gas	Measure range	Resolution
1	O2	0-25%VOL	0.1%VOL
2	CO	0-1000ppm	1ppm
3	H2S	0-100ppm	1ppm
4	SO2	0-20ppm	0.1ppm
5	H2	0-1000ppm	1ppm
6	CL2	0-10ppm	0.1ppm
7	NH3	0-100ppm	1ppm
8	HCL	0-30ppm	0.1ppm
9	NO	0-250ppm	1ppm
10	NO2	0-20ppm	0.1ppm
11	ETO	0-20ppm	0.1ppm
12	CH4	0 ~100%LEL	1%LEL

Note: 1, Any gas or measure range that not mentioned above, just contact AIYI Technologies for further information;
