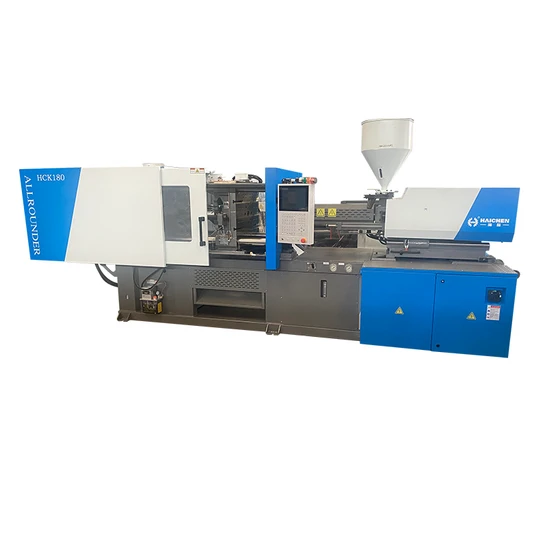

Haichen Colourful Plastic Mug Household Toothbrush Cup Making Injection Molding Machine
Basic Info.
Model NO.
HCK
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE
Selling Units
Single Item
Single Gross Weight
50.000kg
Key Selling Points
Competitive Price
Factory
Ningbo Manufacturer
Cavity
2/4/8/Cavity
Raw Material
PS/PE/PP
Theoretical Shot Volume(Cm3)
357cm3
Voltage
220V/380V
Ejector Force(kN)
50 kN
Plastic Processed
Pppcabspe
Style
Horizontal
Ejector Stroke(mm)
140mm
Injection Weight (G)
325g
Power (Kw)
10 Kw
Automatic
Yes
Transport Package
Wooden
Specification
HCK
Trademark
Haichen
Origin
Ningbo
HS Code
8477101090
Product Description
Haichen Colourful Plastic Mug Household Toothbrush Cup making injection molding machineProduct description
Our HAICHEN Enterprise is one of the manufacturers in Ningbo,
- Plastic injection moulding machine series as the follow:
900KN.1100KN.1400KN.1700KN.2200KN.2600KN.2900KN.3500KN.4000KN.4500KN.
5000KN.6500KN.7500KN.10000KN.12000KN.15000KN.18000KN.22000KN.30000KN
| Item Name | colorful Plastic Cups making machine |
| Material | 100% Melamine |
| Size | Dia8.8*9.0cm, custom as your need |
| Weight/Capacity | 95g per piece, 25cl |
| Brand Name | HAICHEN |
| Place of origin | Ningbo |
| Color | Coral, Orange, Green, Blue, Red, CMYK or pantone color can be available |
| Pattern | Solid color, different designs, logo, sizes, and specifications are available |
| MOQ | 1 piece with stock. According to customer's request, can be negotiated. |
| Use For | Hotel, Restaurant, Home, Party, Kitchen For coffee, tea, milk, water, beverage, juice, promotion, gift and advertising |
| Delivery time | 35days after receive the deposit |
| Payment Terms | 30% as deposit,70% before the delivery |
| Certificates | CE, EU, LFGB, CIQ, EEC |
| Additional Info.of cup | 1. Non-toxic, Durable, Acid-proof; 2. Can be washed in a dishwasher; 3. Heat resistant, the Safe temperature scope: -20°C to +120°C. |
| SERVO ENERGY-SAVING | |
| FEATURS: • There is no extra energy consumption due to output volume changes according to load alteration. • In the phase od holding pressure,servo motor lowers rotate speed and consumes a little of energies. • In the phase of cooling,motor doesn't work and consumes no energy. • The noise is below 78bd.Servo motor has almost no noise huring no operation. • No constant flow pump and speed set motor overflow heating.When the temperature of hydraulic oil is lower,the cooling water is reduced greatly. | |
| According to different products,servo energy-saving injection molding machines will save 20%-80%energy and bring you prominent economic benefit. Is equipped with high performance servo motor controlling system,the machine's output power can vary in accordance with the loading changes. Which reduce energy consumption and noise.The motor rotates at lower speed in holding pressure stage,and doesn't work in cooling time. | |
| CONTROL SYSTEM | |
| | FEATURES: • A variety of text can be switched. • Manual,semi-automatic and fully automatic mode. • To provide EUROMAP robot interface. • Automatic movement monitoring with alarm and fault diagnosis. • Function of slope setting can set the start and stop of movements,so as ensure the smooth movement. • Screen protection function,prolong the life of screen using. • Electrical motor safety protection device. • Robotic pincher interface. |
| All-digital control system uses dedicated controller,multiple CPU processing division,a multi-functional automatic fault detection,alarm system,certificates 99 mold of processing procedures,with remote control interface.System is of high stability and responsiveness.System uses color LCD,man made interface for easy operation and with a number of peripheral interface. | |
| INJECTION SYSTEM | |
| FEATURE: • APID temperature control, precise temperature control of barrel. • There are three or four screws and barrels with optimal design, respectively, nitride, hard plating, dual- metal, which is suitable for different processes of variety of plastics. And the choice of product. • Two -guided guided bar supports, double-balanced rapid injection. • The high-torque hydraulic motors offer a stable plasticizing capacity, high-precision electronic device position detection enable accurate measurement. | |
| • Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding. • Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti-drooling and automated auto purge. • Expected to prevent cold-start function to ensure that the screw, barrel will not be harmed. Stability of the injection unit. | |
| CLAMPING SYSTEM | |
| FEATURE: • Security doors fitted with hydraulic, mechanical and electrical interlocking triple safety device. When the safety door is open, the machine cannot clamp. • Low pressure mold protection device to prevent damage to platen. • Plywood, frame, the bridge, and the template attached structure, the finite element analysis. • Hydraulic ejector, adjustable stroke, and top speed of ejector in and out, for multiple actions. • Flexible tie bars but eliminates fatigue fracture; assure the working life of tie bars. | |
| • Automatic adjustment. The replacement of different mold, the parameters set by clamping force to achieve the automatic adjustment. • High-precision electronic detection device, multi-stage control of opening stoke, speed and location, location accuracy. • Arch splint piece of the tail plate use the finite element analysis. It features as light weight, high-intensity, and high- rigidity. • Flexible core programming control, and independent hydraulic pump station to provide power. | |
| HYDRAULIC SYSTEM | |
| FEATURES: • The manual plug valve hydraulic system make the machine having quick and smooth motion response • Double proportional valve control pressure and flowl • Hydraulic oil cooling device • High-performance imported hydraulic unit with optimizing allocation • The fuel tank has a big opening hole so can be cleaned easily | |
| ADVANCED HYDRAULIC SYSTEM DESIGN through proportional control of pressure,flow achieves rapid multi-level pressure,speed switching,the system configuration is reasonable,stable and reliable.The noise is less than 75dB.The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance. | |
