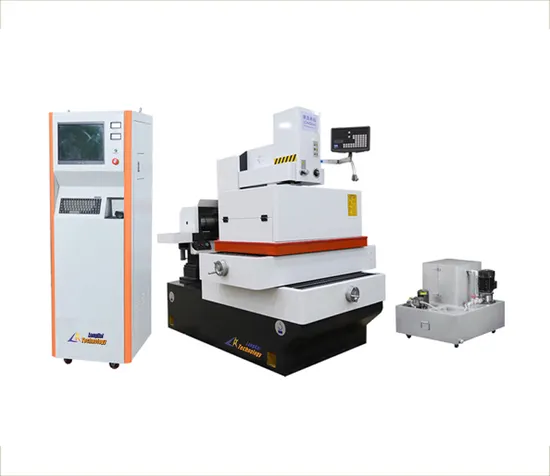

Servo CNC molybdenum wire EDM mdeium speed wire cutting machine LK400S

Performance of the whole		Equipment type	unit	LK-400S
	Fuselage	Host Size (Length * Width * Height)	mm	1700*1300*2160
		Total weight	kg	1500
	Workbench	Workbench size (width x length)	mm	740*460
	trav el	X-axis travel	mm	320
		Y-axis travel	mm	400
		Z-axis travel	mm	300
	CNC Power Supply	pulse width	us	1-250
		Silk speed		0-3
		Cutting number	time	1-7
		Mini Mechanical Driving Equivalent	um	1
		Pulse Resolution	um	0.4
	Processing capacity	Spindle stroke (electrically adjustable)	mm	250
		Max.cutting slope/workpiece thickness		6°~30°/80mm
		Max. Bearing Capacity of Workbench	kg	300
	Machining accuracy	Location accuracy X/Y	mm	≤0.01
		Repeated positioning accuracy X/Y	mm	≤0.005
		Multi-tool Cutting Accuracy	mm	≤0.005( 40mm,Cut one and repair two. MaterialSKD11orCr12,HRC58)
		Optimum Surface Roughness	um	Ra≤1.0(MaterialSKD11 or Cr12,HRC58)
		Maximum cutting efficiency	mm2/min	≥220
		Common cutting efficiency	mm2/min	≥140
		Max. Processing Current	A	≥6-8
machine	Processing efficiency	No-load Voltage of Machining Power Supply	V	100
		Power consumption	KW	≤2.3
	Wire traveling system	Electrode wire diameter	mm	∮0.12-∮0.2
		Wire barrel traveling speed		frequency control
		Tightening method		Two-way automatic tightening
		Wire travelling speed	m/s	3-12
	working groove	Filtration accuracy	um	<10
		Filtration mode		Slow-Walking Filtration
		Working fluid		Special cutting fluid
	Environment and electricity	electric power		380V±10% / 50/60Hz / 2kVA
		temperature		T15-30ºC / humidity40-80%
		pressure	kpa	86-106kpa

Servo CNC molybdenum wire EDM mdeium speed wire cutting machine LK400S
2, Characteristics and functions of the equipment
The X and Y axes are with imported high precision linear guides and imported high precision ball screw that can directly driven by Panasonic AC servo motor from Japan , thus determining the long-term high accuracy of machine tools and avoid transmission errors when moving.
The guide nozzle adopts the design of slow-moving wire. The UV axis is fixed and the guide nozzle can rise and fall automatically, so that it can be as close as possible to the workpiece's machined surface, prevent the molybdenum wire from shaking again, avoid the line marks on the cutting surface, and greatly improve the accuracy and roughness of the machined surface.
The tightening system uses two-way automatic tightening device to tighten molybdenum wire in real time. Then the unevenness and accuracy of the processing plane caused by the inappropriate tightness of molybdenum wire in the process of processing are thoroughly solved.
The guide wheel adopts a special gem guide wheel to locate the sprinkler plate. Replacement can automatically return to the origin, greatly reducing the difficulty of replacing vulnerable parts, and facilitating the use of customers.
The imported linear guide rail and the imported switch are used for the barrel guide rail and the commutation switch to ensure the stability, high precision and long-term reliability of the barrel at high and low speeds.
"Slow Wire Structure" Filtration Water Tank

Oil lubrication system:
One-stop automatic centralized oil supply device can lubricate X, Y guideways, screw rods, barrel guides and screw rods, and ensure the service life of the machine.
The machine has an oil recovery system, which can recover the excess oil and ensure the environmental hygiene around the machine.
High accuracy and uniform surface roughness:
In order to ensure the accuracy of each machine, Longkai uses Renishaw laserinterferometer from UK to check the positioning accuracy and repetitive positioning accuracy of the equipment. The high-configuration guide wheel and guide nozzle are adopted in the silk hauling system. The reasonable layout completely solves the problem of single side loosening and makes the machined surface achieve uniform roughness.
AutoCut WEDM system (hereinafter referred to as AutoCut system) is a WEDM system based on Windows XP platform. AutoCut system is composed of system software (CAD software and control software) running under Windows, 4-axis motion control card based on PCI bus, high reliability, energy-saving AC servo motor drive motherboard and 0.5 microsecond high. Frequency main vibration board and sampling board are composed. Users use CAD software to draw processing graphics according to processing drawings, and to cut CAD graphics by wire. Processing, generating two-dimensional or three-dimensional data of WEDM and carrying out parts Processing; In the process of processing, the system can intelligently control the processing speed and parameters, and complete the processing control for different processing requirements. This graphical processing method is an organic combination of CAD and CAM systems in the field of WEDM.
The system has convenient operation functions such as adaptive control of cutting speed,
real-time display of cutting process and preview of processing. At the same time, it provides perfect protection for all kinds of faults (power failure, machine crash, etc.) to prevent the scrapping of workpieces.
AutoCut system is a complete solution of WEDM. AutoCut system is composed of AutoCut system software, motion control card based on PCI bus, high reliability, servo drive control motherboard, AC high frequency discharge board and sampling circuit.
