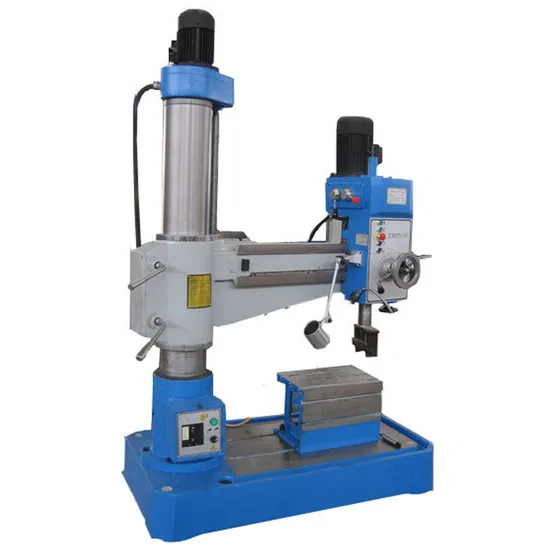

China Factory Supplier Vertical Radial Drilling Machine (Z3035X10)

China Factory Supplier Vertical Radial Drilling Machine (Z3035X10)

US$2,800.00
1-2 Sets
US$2,650.00
3+ Sets

Basic Info.

Model NO.
Z3035X10
Structure
Radial Drilling Machine
Layout
Radial
Controlling Mode
Artificial
Number of Shaft
No CNC
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Z3035X10
China Factory Supplier Vertical Radial Drilling Ma
Max.Drilling Capacity
35mm
Max.Tapping Capacity
16/12
Distance Spindle Axis to Column Generati
250-950mm
Spindle Taper
Mt4
Spindle Travel
190mm
Dimension of Worktable
430X300mm
Packing Dimension
1530X700X2100mm
Fast Moving Motor of The Worktable
0.75/2.2kw
Weight
1100kgs
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shandong, China
HS Code
8459290000
Production Capacity
200sets/Month

Product Description

Product Description
Feature:
Optimum design conforming to international standard.
Key precisely machined parts precision machining
Flexible reliable; Perfect feature.
High precision, High strength.
Economical cutting and Long life.
Functions: Drilling, counter boring, reaming, boring, spotting, tapping.

Product Parameters
(Z3035x10) Radial Drilling Machine Price Model Z3032×9 Z3035×10
Max drilling capacity Cast Iron 32/Steel 25 Cast Iron 35/Steel 32
Spindle feeds 0.1,0.16,0.25
Spindle taper MT4 MT4
Spindle speeds series 6 6
Distance spindle axis to column generating line 900-260 250-950
Distance spindle nose to working surface of base 1100-220 340-1000
Spindle travel 120 190
Overall size 1400×710×1880 1530×700×2100
Power of main motor 1.5/2.2 1.5/2.2
Motor power 0.55 2.2/0.75
Weight of machine 800 1100

Advantage:
1. Gather mechanical-electrical-hydraulic functions, use extensively.
2. With wide range of speed and feed, with manual, power and fine feeds.
3. The feed of machines are very easily engaged and disengagedat any time.
4. With safe and reliable feed safety machine, all parts easy operation and change.
5. All controls centralized on the head stock easy operation and change.
6. Clamping for assembli-es and speed change of spindle achieved by hydroulic power, cmle is sensitna owet nelile.
7. Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
8. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
9. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
10. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.

Standard accessories:
* Box shape worktable
* Taper sleeve
* Tool releasing Wrench
* Drift
* Eyelet bolts

Special accessories:Extra cost
* Quick instead chuck
* Tapping chuck
* Grease gun
