Cheaper Roll Paper Gluing Lamination Machine with Band Saw

Cheaper Roll Paper Gluing Lamination Machine with Band Saw

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
HX-1350B
Certification
CE
Condition
New
Control
Semi-Automatic
Embossing Type
Full-Embossing
Embossing Roller
Steel Roller
Toilet Paper Type
With Core
Function
Rewinder
Transport Package
Wooden Pallet
Specification
6780*3250*2300 mm
Trademark
Huaxun
Origin
China
Production Capacity
20 Set/ Year

Product Description

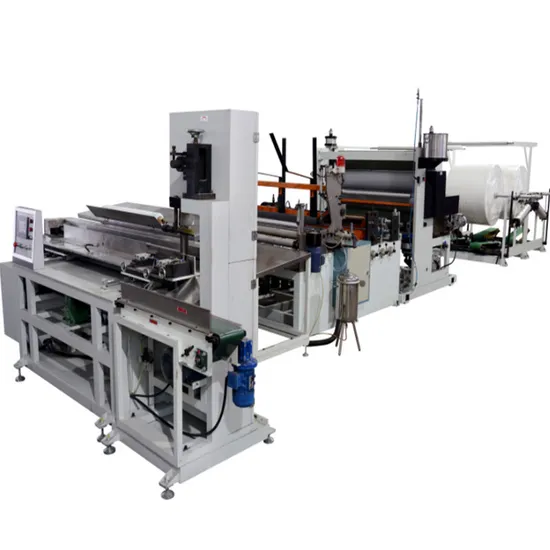

HX-1350B Glue lamination toilet paper and kitchen towel machine( connect with band saw machine for cutting)
Equipment Introduction
1. Adopt PLC programmable controller to control the production, main motor frequency control.
2. Man-machine conversation, easy operation with high efficiency. Machine stop when raw paper broke.
3. Jumbo Roll Paper is pneumatically uploaded onto machine, with unwinding web tension control device
4.The rewinding process of the product is tight first and loose afterward, with its tension adjustable. Automatic changing roll, rewinding, tail cutting and sealing, then finished log auto unloading.
5. Bearing, electric component and synchronous belt use famous brand.
This equipment used to production gluing lamination kitchen towel rolls and toilet paper rolls, Glue is equal,best effect in lamination,Machine have core feeding unit, raw material from jumbo roll after full embossing or edge embossing, the perforation, end cutting and spray the tail glue become a log.The whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It's the best choice for the producing hygienic paper products.
Main technical parameter Production speed: 100-180 m/min Rewinding diameter: 100-130 mm (adjustable) Jumbo roll inner core diameter:76mm Finished roll core diameter: Φ32~50 mm (adjustable) Perforating distance:100-250mm Jumbo roll width:≤1350mm Jumbo roll diameter:≤1500m Machine weight:about 14.7 tons Machine Power: 15.7 KW Machine overall size(L*W*H):6780*3250*2300 mm About Us
Quanzhou Huaxun Machinery Making Co., Ltd., established in 2009, is a manufacturer of household paper processing equipment and integrating design, R&D, manufacturing and sales. The products are mainly including kitchen towel toilet roll rewinding series, facial tissue making machine series, napkin processing machine series, slitting machine series, core winding machine series, Non-wevens processing machine series, and other relating auxiliary equipment. The products have passed the international ISO: 9001-2000 quality system certification and CE certification, and provide good services for the design and production of equipment suitable for the product market for global household paper enterprises.
FAQ
1.How to start an order with us ?
1. Inquiry -Email Wechat/whatapp replying within 12 hours.
2. Solution offer - Best quotation based on your product, production capacity ,invest plan ,budget ect.
3. Customized -Customized according your practical requirement.
4. Preparation before placing order -Share the machine space ,air ,power ,electric with you to ensure fit with your factory space.
5. Confirm the order -With the advanced payment for starting machine production .
2.How to check the quality of the machine you ordered and the guarantee ?
-Each part is marked with the source code of the supplier
1. Quality control -Each part is marked with the source code of the supplier.
12 months Warranty,We would express the free replacement parts during the warranty date.(exclude wearing parts). The express cost of parts should be paid by the buyer. After one year, our company will carry on the tracking of technology and quality.
2. Delivery- Packing according to international shipping FOB.
3.How about the Installation and training when the machine arrive your factory ?
1. Installation -Engineer Schedule confirmed 7 days before machinery arrival ,7-10days for installation depend on the machine operation difficulty .
2. Training The seller will send technicians to the buyer's factory to install and adjust the machine. The seller is responsible for the round-trip air ticket wages, and the buyer pays the technicians' accommodation (board and lodging) and transportation (bus fare, etc.). (If the technician is required to go there for the second time, the cost shall be borne by the buyer). The buyer should prepare electricity, gas source, raw materials, etc. before the arrival of the technician.
3. Cost of Installation & Training :You should cover round-trip air ticket wages, and the buyer pays the technicians' accommodation (board and lodging) and transportation (bus fare, etc.). You should prepare electricity, gas source, raw materials, etc. before the arrival of the technician..
4.How to build a long-term partnership between us ?
Feedback - Your sincere feedback is the most effective reference for the continuous improvement of our service.
Packing and shipping
Wooden pallet/ Plastic film/ Container
