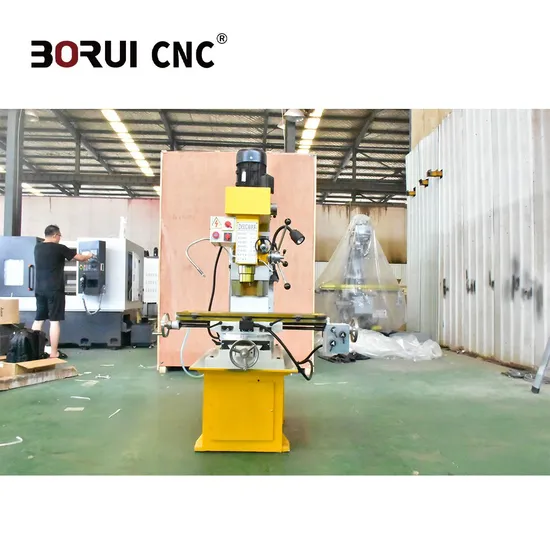

Drilling and Milling Machine (ZX50C)

Product Description

Drilling and Milling Machine (ZX50C)
Product Application
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department. The main specification:

Specifications	ZX50A milling machine	ZX50C milling machine
Max. Drilling Dia. (mm)	50	50
Max. Horizontal Milling Dia.	100	100
Max. Vertical Milling Dia.	32	32
Max. Boring Dia.	100	100
Spindle Taper	MT4,R8	MT4,R8
Spindle Speeds Range	(5 step) 270-2400	(5 step) 115-1750
Spindle Travel	120	120
Table Size (mm)	800*240	800*240
Table Travel (mm)	400*230*380	400*230*380
Main Motor Power (KW)	1.5	0.85/1.5
N.W./G.W.(Kg)	460/540	470/550

Standard Configuration:
·Drill chuck
·Mill chuck
·Inner hexagon spanner
·Work light
·Spindle arbor
·Wrench

·Mchine vice
Optional configuration:
·DRO on X, Y, Z--AXIS
·Clamping kit
·Universal dividing head
·Rotary work table.
The main performance characteristics:
1.Milling head can be micro feed and achieve the drilling
2.The Vertical Milling Machine with Milling and tapping function
3.The universal milling machine Worktable can be equipped with the gear transmission power feed,
4.Full-featured and flexible
5.Easy to operate
6.The milling machine can be add plug and swivel table
7.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
8.Work Table Made by HT200-250 High Strength Cast Iron
9.Dovetail Table Guide ways Withstand Larger Overturning Moment
10.Gear Drive Milling Head
11.The milling Head stock Swivels ±45
Product Dtails
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ:
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online , or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
