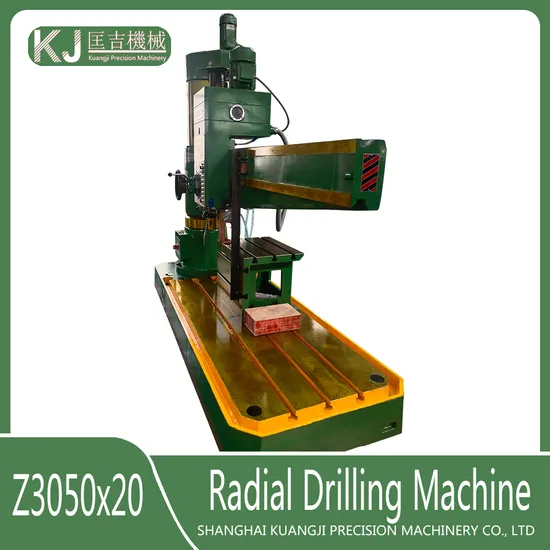

Z3050X20 Radial Drilling Machine Hydraulic Vertical Drilling Machines Manual High Precision Machines 50mm
| US$12,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3050x20
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Manual
Number of Shaft
0
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE
Condition
New
Voltage
380V/220V/400V
Transport Package
Packing for Export
Specification
310*112*255 cm
Trademark
Kuang Ji
Origin
China
Production Capacity
300
Product Description
Radial drilling machine, is a new series of multi-functional products designed and manufactured according to international standards, machine spindle box, rocker arm, column manual clamping; The main shaft turns forward and backward, stops (braking), and operates in neutral with a handle. It has the advantages of perfect performance, safe use, reliable, convenient, easy maintenance, high precision, good rigidity, long life and so on. Used for drilling, reaming, reaming, tapping and boring. Widely used in machining parts.| 1. Maximum drilling diameter 50 mm |
| 2. Distance between the center line of the spindle and the busbar of the column Maximum 2000 mm; Minimum 350 mm. |
| 3. Distance from the end face of the spindle to the working surface of the base Maximum 1215 mm; Minimum 315 mm. |
| 4. Spindle box horizontal movement distance 1650 mm |
| 5. Distance of swing arm lift 600 mm |
| 6. Swing arm lifting speed 1.2m/min |
| 7. Swing arm rotation angle 360° |
| 8. Spindle taper hole (Morse) No.5 Morse. |
| 9. Spindle stroke 315 mm. |
| 10. Scale plate turns drilling depth 122.5 mm. |
| 11. Maximum torsional moment allowed by spindle 400N·m |
| 12. Maximum feed resistance allowed by spindle 16kN |
| 13. Number of spindle speed steps 16. |
| 14. Spindle speed range 25-2000 R/min |
| 15. Number of spindle feed steps 16 |
| 16. Spindle feed range 0.04-3.2 mm/r |
| 17. Main motor power 4 Kw |
| 18. Voltage 380, 440/220 V |
| 19. Net weight of machine tool 3500 Kg; Gross weight 4200 Kg |
| 20. Outline dimensions of machine tool (length*width*height) 289*103.5*285.5cm |
| 21. Packing box size (length*width*height) 310*112*255 cm |
