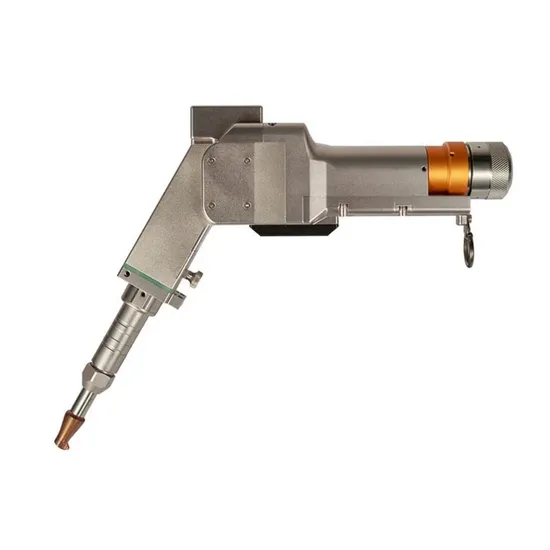

Professional and Lighter Weight Handheld Laser Welding Head
| Negotiable | 10 Pieces (MOQ) |
Basic Info.
Model NO.
HW-BDH-20-50150
Customized
Customized
Standard Component
Standard Component
Type
Laser Welding Head
Size
216*287 mm
Weight
0.7 Kg
Materials
Aluminium Alloy & Stainless Steel
Laser Power
up to 2000W
Welding Laser Beam Size
0-5mm Welding
Laser Head Connection
Qbh
Feeding Wires
Standard Type : 0.8&1.0&1.2&1.6mm Wire
Safety Switch
Laser Button & Clip & Emergency Stop
Transport Package
Carton Box
Specification
0.7 Kg
Trademark
HanWei
Origin
China
HS Code
8515900090
Production Capacity
70000 Set/Year
Product Description
Product Description
Handheld Laser Welding Head supports 2000W laser for long time welding, the product comes with 6 oscillating modes, 4 light output modes and the spot size can be adjusted through the system, which is suitable for different welding situations.
Ten years of iterative laser control system, so that the use of the handheld head is more stable, anti-interference ability is stronger.
Unique optical design, greatly reducing the weight of the welding head. Focusing lens drawer type, so that the after-sales cost is lower and more convenient. Fully enclosed design, built-in water and air circuit.
Ergonomic concept design, fully considering the applicability of the welding process and the comfort of long-term use.
Laser Gun Specification
| Handheld Laser Gun Size | 216*287 mm |
| Handheld Laser Gun Weight | 0.7 Kg |
| Handheld Laser Gun Materials | Aluminium alloy & Stainless Steel |
| Laser Head Connection | QBH |
| Adopt Laser Source | 1064~1080nm Fiber laser source |
| Laser Power | Up to 2000w |
| Safety Switch | Laser Button & Clip & Emergency Stop |
| Position | Red point guide beam |
| Welding Laser Beam Size | 0-5mm Welding |
| Welding Beam Form | ―,○,⊙,△,8 . |
| Welding Materials | Steel / Stainless Steel / Aluminium |
| Welding Thickness | Depend on Laser source |
| Welding Speed | Depend on operator control |
| Welding Parameter Input | Touch Screen Monitor |
| Language in control system | English (Support Customized) |
| Welding parameter storage | 30 kinds of different welding parameter save |
| Wire Feeding Parameter | Digital Data Input in monitor |
| Feeding Wires | Standard type : 0.8&1.0&1.2&1.6mm wire |
| Option : 2mm wire | |
| Double Route Wire Feeder | Option (Same time double route feeding) |
| Cooling method | Water Cooling |
| Cooling water | Purified water |
| Gas | Argon / Nitrogen |
Features and Advantages
| 1 | Laser welding head Size small & Light weight. |
| 2 | Unique non-slip grip design for manipulating ease and comfort grip. |
| 3 | Multiple security measures . |
| 4 | Various laser beam forms for different working requirements use. |
| 5 | Drawer type mirror holder - High sealing performance and Easy to replace. |
| 6 | 20*4mm Protective window. Extremely durable. |
| 7 | 50&150mm standard Focus length adjustable. Output high strong laser power. |
| 8 | High performance wobble motor and motor lens set. |
| 9 | High performance QBH connection port support various laser source. |
| 10 | Touch screen digital parameter setting monitor. |
| 11 | Language in English as standard. (Support Customized Language in Controller) |
| 12 | Laser beam size adjustable 0~5mm. |
| 13 | Option: Laser beam size adjustable 0~10mm. |
| 14 | 0.8&1.0&1.2&1.6mm wire feeding. (2mm wire feeding as Option). |
| 15 | Option: Double route wire feeding (Same time double route feeding). |
Detailed Photos
Nozzles (7 Nozzles)
Packaging & Shipping
Company Profile
